NM01MAP255060

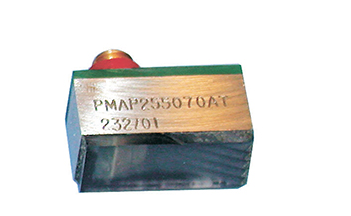

Reach Challenging Angles with Precision: Dakota NDT Miniature 60° Angle Beam Transducer

For detailed ultrasonic inspections in confined spaces and around complex geometries, this Dakota NDT Miniature Angle Beam Potted (MAP) transducer offers an exceptional solution. Featuring a small 0.250" element size and a focused 5 MHz frequency, this 60-degree angle beam probe is specifically engineered to deliver high-resolution flaw detection in areas with limited accessibility.

The precisely angled 60-degree refracted beam is optimally suited for detecting and characterizing flaws with specific orientations, commonly encountered in intricate weld configurations and complex component designs. The Microdot side entry connector provides excellent flexibility for cable routing, ensuring easy integration into various inspection setups, even where space is at a premium.

Built with a durable potted construction, this miniature transducer offers robust protection against harsh environments, guaranteeing reliable and consistent performance in demanding industrial applications. Its small element size allows for a highly focused sound beam, enhancing sensitivity for detecting minute discontinuities and accurately evaluating flaws using the 60-degree angle beam technique in previously hard-to-reach areas.

Key Features:

• Compact 0.250" Element Size: Provides excellent access to confined areas and allows for a highly focused sound beam.

• Precise 60° Angle Beam: Optimized for detecting and characterizing flaws with specific orientations common in welds and intricate designs.

• High-Resolution 5 MHz Frequency: Delivers excellent sensitivity for detailed angled inspections in tight spaces.

• Convenient Microdot Side Entry Connector: Offers maximum flexibility in cable routing for easy integration in restricted areas.

• Durable Potted Construction: Enhances robustness and protects internal components from demanding environments.

• Ideal for Restricted Access: Perfect for inspecting welds and components with complex geometries and limited space.

Applications:

• Detailed weld inspection in restricted access areas.

• Critical flaw detection near tight corners and complex structural details.

• Inspection of small diameter tubes and pipes.

• General angle beam inspections where a small footprint and focused beam are required at a 60-degree angle.

Enhance your inspection capabilities in challenging environments. Invest in the Dakota NDT Miniature Angle Beam Potted (MAP) 5 MHz, 0.250" Element Size, 60 degree Transducer today.
