NM01RJ311155

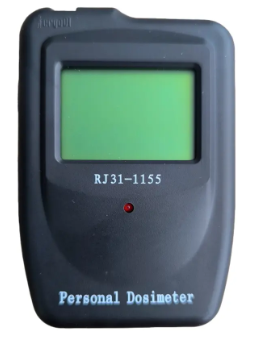

The RJ31-1155 is a personal dose alarm meter designed to measure and monitor exposure to X-rays, gamma rays (Y), and hard beta particles (hard-β). It is manufactured by Raytech and is designed to provide real-time monitoring and alarms to protect individuals working in environments with potential radiation hazards.

Key Features and Specifications:

• Radiation Types:

  • Measures X-rays, gamma rays (Y), and hard beta particles (hard-β).

• Dose Rate Range:

  • 0.01 µSv/h to 150 mSv/h (microsieverts per hour to millisieverts per hour). This indicates the range of radiation intensity the device can measure.

• Cumulative Dose Range:

  • 0.00 µSv to 9999 mSv (microsieverts to millisieverts). This indicates the total accumulated radiation dose the device can track.

• Energy Range:

  • 40 keV to 3.0 MeV (kiloelectron volts to megaelectron volts). This specifies the range of radiation energy the device can detect.

• Manufacturer:

  • Raytech.

• Personal Dose Alarm:

  • The device is designed to alarm the user when a preset dose rate or cumulative dose is reached.

Applications:

• Nuclear power plants.

• Medical facilities (radiology departments).

• Industrial radiography.

• Research laboratories.

• Any environment where individuals may be exposed to ionizing radiation.

The key technical indexes

• 　Measurement range: dose rate 0.01 Sv / h~150mSv / h cumulative dose 0 Sv~9999mSv

• 　Energy range: 40keV~3.0MeV

• 　Measurement time: the measurement time is automatically selected according to the ray intensity, and the corresponding speed is faster

• 　Alarm threshold: 0.5, 1.0/2.5...500（µ Sv/h）

• 　Relative inherent error: ± 15%

• 　Protective alarm response time: 2 seconds

• 　Display unit: dose rate (Sv / h or mSv / h or Sv / h) and cumulative dose (Sv or mSv or Sv)

• 　Power supply mode: a No.7 battery

• 　Overall Dimension: 96mm * 65mm * 18mm; weight: 62g
