Precision Weld Inspection: RIVERWELD Bridge Cam Gage Test Ulnar Welding Inspection Gauge

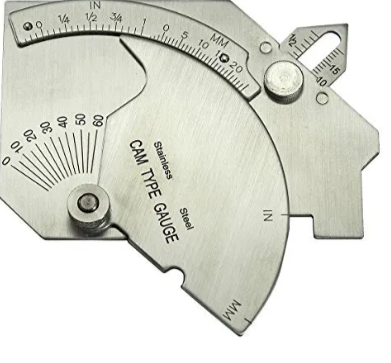

Ensure the highest quality and integrity of your welds with the RIVERWELD Bridge Cam Gage Test Ulnar Welding Inspection Gauge. This robust and versatile precision instrument is an indispensable tool for welding inspectors, quality control professionals, and fabricators, enabling rapid and accurate measurement of critical weld parameters. Its comprehensive design allows for quick assessment of common weld defects and features, making it a staple in any NDT toolkit.

Key Features and Benefits:

• Comprehensive Weld Measurement Capabilities: The Bridge Cam Gage is designed to measure a wide array of essential weld characteristics with precision, including:

  • Depth of Undercut: Accurately identifies the depth of material removed below the parent metal surface, a critical defect.

  • Depth of Pitting: Measures the depth of localized depressions or holes on the weld surface.

  • Fillet Weld Throat Size: Measures the theoretical and actual throat thickness of fillet welds, crucial for strength assessment.

  • Fillet Weld Leg Length: Measures the leg length of fillet welds, ensuring proper sizing.

  • Angle of Preparation: Quickly checks the bevel angle of weld preparations for proper fit-up.

  • External Misalignment (High-Low): Detects differences in alignment between two plates or pipes, ensuring proper joint fit.

  • Reinforcement (Crown Height): Measures the excess weld metal above the parent material.

  • Gap Size: Measures the root opening or gap before welding.

• "Test Ulnar" Design: While "Test Ulnar" isn't a standard welding gauge term, in context, it likely refers to the gauge's ergonomic design and multi-faceted "fingers" or measuring surfaces that allow for precise contact and measurement, akin to a highly articulated "testing arm."

• Durable Stainless Steel Construction: Manufactured from high-quality stainless steel, ensuring excellent resistance to corrosion, rust, and wear. This robust build guarantees long-term accuracy and reliability in demanding industrial environments.

• Clear, Engraved Markings: Features precisely engraved or etched scales and markings for easy readability and long-lasting visibility, preventing fading common with printed scales.

• Simple and Efficient Operation: Designed for ease of use, allowing inspectors to quickly take multiple measurements without complex setup, significantly speeding up the inspection process.

• Compact and Portable: Its small size and lightweight design make it easy to carry in a pocket or tool pouch, always ready for immediate on-site inspection.

• Essential for Quality Control: A fundamental tool for ensuring compliance with welding codes (e.g., AWS, ASME, API) and maintaining high standards of weld quality, crucial for structural integrity and safety.

The RIVERWELD Bridge Cam Gage Test Ulnar Welding Inspection Gauge is an indispensable investment for any professional committed to accurate weld assessment and quality assurance.
