NM01ULTOFD56MMKIT

Complete TOFD Inspection Kit: 2.25 MHz Transducer (6mm) with 0, 60, & 70 Degree Wedges

This is a comprehensive Time of Flight Diffraction (TOFD) Transducer Kit, designed for advanced Non-Destructive Testing (NDT) professionals. This all-in-one package combines a high-penetration probe with a versatile set of wedges, providing the flexibility required for accurate flaw sizing and weld inspection across a range of material depths.

PRODUCT AND APPLICATION:

This kit is built around a 2.25 MHz, 6mm diameter transducer. The 2.25 MHz frequency is specifically chosen for deep penetration, making it ideal for inspecting thick sections or highly attenuative materials (such as stainless steel or castings) where higher frequency probes might struggle. The 6mm element size provides excellent point-source resolution, essential for the precise diffraction sizing techniques used in TOFD.

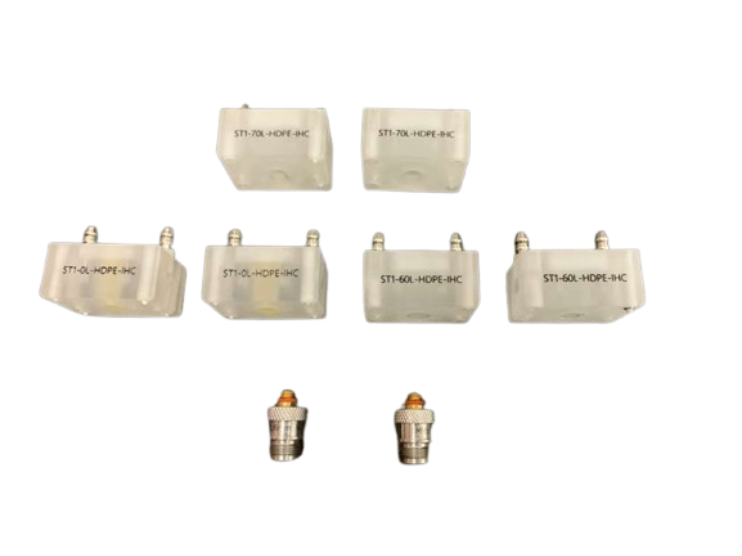

KIT CONTENTS AND VERSATILITY:

This set includes a complete range of wedges to handle various inspection scenarios:

• 0 Degree Wedge: Allows the probe to be used for straight-beam inspection, material velocity verification, and corrosion mapping.

• 60 Degree & 70 Degree Wedges: These refracted angle wedges are the standard for TOFD weld inspection, allowing operators to optimize the beam intersection depth. The choice between 60 and 70 degrees ensures full volumetric coverage of the weld root, fusion face, and cap.

KEY PERFORMANCE SPECIFICATIONS:

• Transducer Frequency: 2.25 MHz (High Penetration)

• Element Diameter: 6mm (0.24 inch)

• Connector Type: MD (Microdot) - Industry standard for compact TOFD setups.

• Wedge Angles Included: 0 Degree, 60 Degree, and 70 Degree.

• Application: Heavy wall weld inspection, thick-section flaw sizing, and inspection of attenuative alloys.

WHY CHOOSE THIS KIT:

By bundling the probe with the essential wedge angles, this kit eliminates the need to purchase individual components, ensuring you have the correct acoustic match and mechanical fit right out of the box. It is a cost-effective solution for expanding your NDT capabilities into thick-section TOFD inspection.
