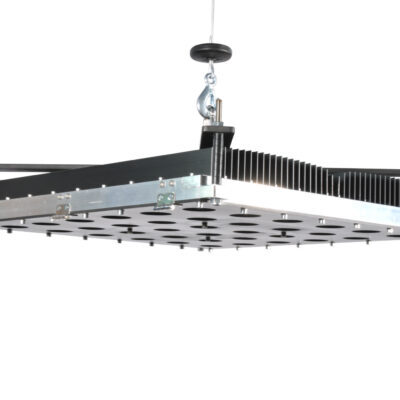

Labino — COSMOS Stationary UV-A LED Wash Station Light
36-LED Mains-Powered UV-A System with Large 2 × 2 m Inspection Area
SKU: L3200
Overview
The Labino COSMOS is a heavy-duty stationary UV-A LED light specifically designed for NDT wash stations and large inspection areas.
Equipped with 36 UV-A LEDs, COSMOS provides approximately 350 µW/cm² at 3 m (9.8 ft) and covers an area of approximately 2 × 2 m (6.56 × 6.56 ft) above 300 µW/cm².
Its square, uniform beam allows multiple units to be installed together with minimal dark areas between them. The lamp features IP68 waterproof protection, penetrant-resistant sealing, and a serviceable LED design for demanding industrial environments.

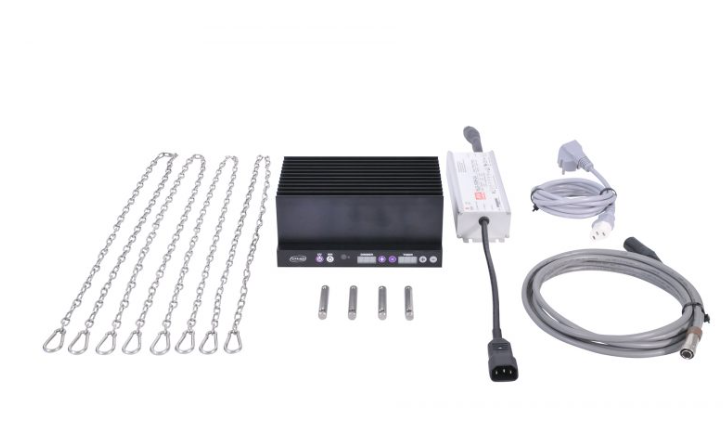

What's Included
| Item | Quantity |
|---|---|
| COSMOS UV-A Lamp | 1 |
| Push Button Control | 1 |
| Power Supply Unit (PSU) | 1 |
| 10 m / 32.8 ft Cable | 1 |
| Power Cord | 1 |
| Mounting Bars | 2 |

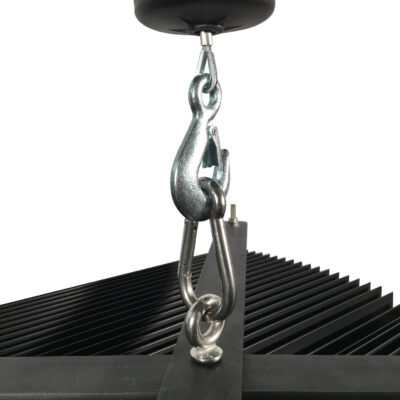

| Eye Bolt | 1 |
| Levelers / Bolts / Nuts | 4 sets |
| UV Face Shield | 1 |
| Manufacturer | Labino |
| SKU | L3200 |
Key Features
36 UV-A LEDs
Approx. 350 µW/cm² at 3 m
Large 2 × 2 m / 6.56 × 6.56 ft UV-A coverage area
Square beam profile for modular installations
Designed specifically for wash stations
IP68 waterproof construction
Penetrant-resistant sealing
Mains-powered continuous operation
Replaceable LED modules
Push-button operation
Optional foot-pedal control
4-year manufacturer warranty
Complies with ISO 3059
Specifications
| Parameter | Details |
|---|---|
| Product Type | Stationary UV-A LED Wash Station Light |
| Model | COSMOS |
| UV-A LEDs | 36 |
| Power Source | Mains |
| UV-A Intensity at 3 m | ≈ 350 µW/cm² |
| Coverage >300 µW/cm² | 2 × 2 m / 6.56 × 6.56 ft at 3 m |
| Operating Distance | 3 m / 9.8 ft |
| Protection Rating | IP68 |
| Product Weight | 36 kg / 79.4 lb |
| Warranty | 4 Years |
| Compliance | ISO 3059 |
| Manufacturer | Labino |
| SKU | L3200 |
Ideal Applications
Fluorescent Penetrant Inspection (FPI/LPI)
NDT wash stations
Rinse and cleaning stations
Large-component inspection
Aerospace NDT
Manufacturing QA/QC
Production inspection lines
Industrial maintenance facilities
Box Dimensions & Shipping Weight
| Parameter | Estimated |
|---|---|
| Box Dimensions (L × W × H) | 36 × 32 × 18 in |
| Shipping Weight | 95 lb |
Note: Box dimensions and shipping weight are estimated for inventory and freight-planning purposes.
About Labino
Labino manufactures professional UV-A inspection lights, stationary UV systems, radiometers, and NDT equipment for fluorescent penetrant and magnetic particle inspection across aerospace, manufacturing, oil & gas, automotive, and industrial applications.
