NM01TGI550L

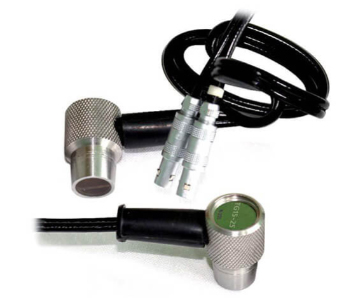

The OKO-NDT Straight Beam Probe TGI is a high-precision, double-element ultrasonic transducer specifically designed for accurate and reliable thickness gauging applications. This probe is engineered to provide superior performance in demanding industrial environments, offering enhanced sensitivity and reduced near-surface dead zones compared to single-element probes.

The TGI probe utilizes a double-element design, featuring separate transmitting and receiving elements. This configuration significantly improves signal-to-noise ratio and minimizes the impact of surface conditions, resulting in more accurate and consistent thickness measurements. Operating at a frequency of 5 MHz, this probe offers a good balance of penetration and resolution, making it suitable for a wide range of materials and thickness ranges.

The 0.500" diameter active elements provide a focused and consistent ultrasonic beam, ensuring precise measurements. The integral cable eliminates the need for separate cable connections, simplifying setup and reducing the risk of connection failures. The potted Lemo 00 connector provides a robust and environmentally sealed connection, ensuring reliable performance in harsh conditions.

Manufactured by OKO-NDT, a reputable provider of NDT equipment, the Straight Beam Probe TGI is built to exacting standards, ensuring durability and long-term performance.

Key Features and Benefits:

• Double Element (TGI) Design: Enhances sensitivity and reduces near-surface dead zones.

• 5 MHz Frequency: Provides a good balance of penetration and resolution for thickness gauging.

• 0.500" Diameter Active Elements: Offers a focused and consistent ultrasonic beam.

• Integral Cable: Simplifies setup and reduces connection issues.

• Potted Lemo 00 Connector: Provides a robust and environmentally sealed connection.

• OKO-NDT Quality: Manufactured by a trusted provider of NDT equipment.

Applications:

• Thickness Measurement: Accurate measurement of material thickness in various industries.

• Corrosion Monitoring: Detecting and measuring corrosion in pipes, tanks, and other structures.

• Material Inspection: Inspecting materials for thickness variations and defects.

• Manufacturing Quality Control: Ensuring consistent material thickness in production processes.

• Aerospace Maintenance: Inspection of aircraft components for thickness and corrosion.


Technical Details:

• Frequency: 5Mhz

• Element Diameter: 12mm, 0.500 in

• Type of Case: Stainless Steel

• Connector Type: Lemo 00

• Connector Position Cable
