NM01TSB150MS

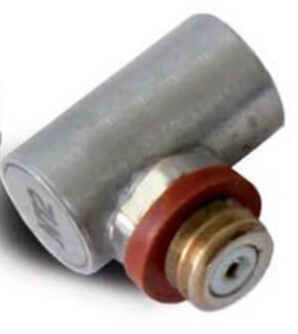

The OKO-NDT Straight Beam Probe is a high-quality, single-element ultrasonic transducer designed for precise thickness measurement and flaw detection in various materials. This probe is engineered for non-destructive testing (NDT) applications where the introduction of ultrasonic waves perpendicular to the test surface is required.

Operating at a frequency of 1.0 MHz, this probe offers a good balance between penetration and resolution, making it suitable for a wide range of materials and inspection depths. The 0.500" (half-inch) diameter active element provides a consistent and focused ultrasonic beam, ensuring accurate data acquisition.

The Side MD connector ensures a secure and reliable connection to ultrasonic testing equipment, minimizing signal loss and maintaining signal integrity. The "Side" designation indicates the connector is located on the side of the probe, providing versatility in probe placement and handling.

Manufactured by OKO-NDT, a reputable provider of NDT equipment, the Straight Beam Probe is built to exacting standards, ensuring durability and reliability in demanding industrial environments.

Key Features and Benefits:

• 1.0 MHz Frequency: Provides a good balance of penetration and resolution.

• 0.500" Diameter Active Element: Offers a consistent and focused ultrasonic beam.

• Single Element Design: Simplifies operation and provides reliable performance.

• Side MD Connector: Ensures a secure and reliable connection.

• OKO-NDT Quality: Manufactured by a trusted provider of NDT equipment.

Applications:

• Thickness Measurement: Accurate measurement of material thickness.

• Lamination Detection: Detecting delaminations and voids in composite materials.

• Flaw Detection: Detecting flaws perpendicular to the test surface in various materials.

• Corrosion Monitoring: Detecting and measuring corrosion in materials.

• General NDT: Various applications requiring straight beam ultrasonic testing.


Technical Details:

• Frequency: 1.0 MHz

• Element Diameter: 12mm, 0.500 In

• O.D.: 16mm, 0.625In

• Type of Case: Stainless Steel

• Connector Type: Side
