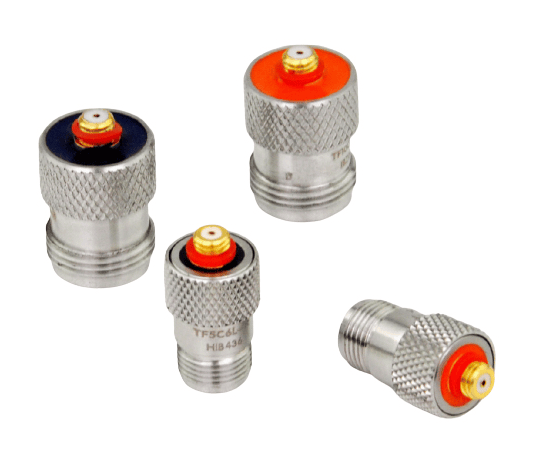

AUT — TOFD Probe, Quick Change Style (15 MHz, 0.125" Dia., Microdot)
Ultra High-Frequency TOFD Ultrasonic Probe | 1.5 Cycle, Non-Composite SKU: P-TOFD-q1501Overview
The AUT TOFD Probe (Quick Change Style) is an ultra high-frequency ultrasonic transducer designed for Time of Flight Diffraction (TOFD) inspections requiring maximum resolution and precision. Operating at 15 MHz with a 0.125" element diameter and a 1.5 cycle pulse configuration, this probe is optimized for detecting extremely small defects and performing highly detailed flaw characterization.
Its compact element size and high frequency make it ideal for thin materials and critical inspections where fine defect detection is essential. The quick change design allows rapid probe replacement and seamless integration into automated or multi-probe TOFD systems, improving inspection efficiency and reducing downtime.
Equipped with a microdot connector, the probe ensures stable and reliable signal transmission. The non-composite construction provides consistent acoustic performance, making it suitable for high-precision applications across industries such as aerospace, power generation, and advanced manufacturing.
What's Included
| Item | Details |
|---|---|
| TOFD Probe | 15 MHz, 0.125" diameter, 1.5 cycle — quick change style |
| Connector | Microdot interface |
| Protective Case | Storage and transport protection (if applicable) |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 3.0 in |
| Weight | 0.4 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Probe Type | TOFD ultrasonic probe |
| Frequency | 15 MHz |
| Element Diameter | 0.125 in |
| Pulse Characteristics | 1.5 cycle |
| Connector Type | Microdot |
| Construction | Non-composite |
| Configuration | Quick change style |
| Application | Time of Flight Diffraction (TOFD) |
Performance Features
Ultra High-Frequency Resolution
15 MHz operation provides exceptional sensitivity for detecting very small defects and fine discontinuities.
Short Pulse (1.5 Cycle)
Enhances axial resolution, enabling precise defect sizing and characterization.
Compact Element Size
0.125" diameter allows inspection in tight geometries and improves resolution on thin materials.
Quick Change Design
Enables fast probe replacement, increasing efficiency in automated and multi-probe inspection setups.
User-Friendly Design
- Easy installation and removal
- Compact and lightweight for precise handling
- Secure microdot connection
- Designed for seamless TOFD system integration
Built for Industrial Environments
- Durable construction for precision applications
- Designed for demanding inspection tasks
- Reliable performance in continuous operation
- Suitable for high-resolution NDT environments
Compatibility
Compatible with:
- TOFD ultrasonic testing systems
- Automated and manual scanning systems
- Microdot UT cables and connectors
- High-resolution inspection setups
Ideal Applications
- High-resolution TOFD inspections
- Detection of very small cracks and discontinuities
- Thin material and precision component inspection
- Aerospace and advanced manufacturing
- Power generation and critical component evaluation
- High-accuracy ultrasonic testing (UT)
