NM01ND2000
Choose Quantity

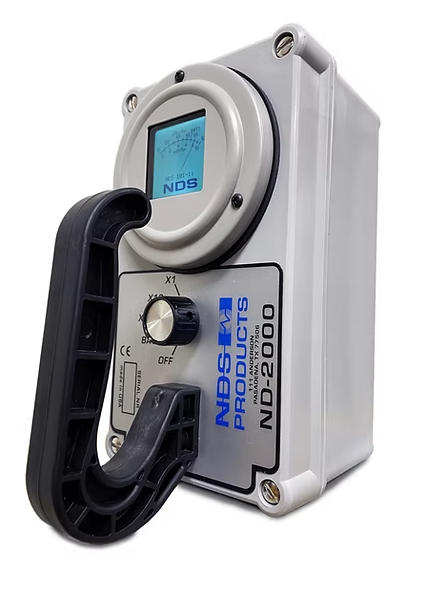

NDS Products — ND-2000 High-Range Gamma/X-Ray Survey Meter
Three-Range Radiographic Survey Meter for Gamma and X-Ray Radiation Monitoring
SKU: ND2000
Overview
The NDS Products ND-2000 is a rugged, high-range Gamma/X-Ray survey meter designed for radiation monitoring during industrial radiography, non-destructive testing, radiation safety, and other applications involving ionizing radiation.
The instrument provides three measurement ranges up to 1,000 mR/hr (10,000 µSv/hr) and uses an energy-compensated Geiger-Mueller detector for Gamma and X-Ray monitoring.
A clear LCD display, durable reinforced enclosure, extended battery life, and wide operating-temperature range make the ND-2000 suitable for demanding field environments where dependable radiation monitoring is required.
The standard ND-2000 is the base configuration. Additional versions with internal audio, a built-in dosimeter charger, or an external detector probe are available separately.
What's Included
| Item | Details |
|---|---|
| Survey Meter | NDS Products ND-2000 |
| Detector Type | Energy-compensated Geiger-Mueller tube |
| Display | LCD |
| Measurement Ranges | Three ranges |
| Maximum Range | 1,000 mR/hr / 10,000 µSv/hr |
| Radiation Type | Gamma and X-Ray |
| Power | Two D-cell batteries |
| Meter Tether Clip | Included |
| Manufacturer | NDS Products |
| SKU | ND2000 |
Key Features
High-range Gamma and X-Ray radiation monitoring
Three selectable measurement ranges
Measurement capability up to 1,000 mR/hr
Equivalent SI range up to 10,000 µSv/hr
Energy-compensated Geiger-Mueller detector
Digital LCD display
Individual calibration adjustment for each measurement range
Rugged reinforced case and carrying handle
Dust-resistant construction for field applications
More than 200 hours of continuous operation with alkaline batteries under specified conditions
Regulated high- and low-voltage circuitry
Wide operating-temperature range
Portable design for industrial and field radiation surveys
Designed specifically for radiographic and NDT environments
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | High-range Gamma/X-Ray survey meter |
| Model | ND-2000 |
| Measurement Technology | Geiger-Mueller detector |
| Detector | Halogen-quenched, energy-compensated GM tube |
| Radiation Detected | Gamma and X-Ray |
| Measurement Ranges | 0–10, 0–100, and 0–1,000 mR/hr |
| SI Measurement Ranges | 0–100, 0–1,000, and 0–10,000 µSv/hr |
| Energy Response | Gamma and X-Ray from 80 to 2,000 keV, within specified response limits |
| Display | LCD |
| Calibration | Individual calibration potentiometers for each range |
| Power Supply | 2 × D-cell batteries |
| Battery Life | Over 200 hours continuous operation with alkaline batteries |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Humidity | Up to 95% non-condensing |
| Manufacturer | NDS Products |
| SKU | ND2000 |
Measurement Ranges
| Range | mR/hr | µSv/hr |
|---|---|---|
| Low Range | 0–10 | 0–100 |
| Medium Range | 0–100 | 0–1,000 |
| High Range | 0–1,000 | 0–10,000 |
The three-range configuration allows technicians to monitor radiation levels across a broad range of industrial radiography and radiation-safety applications.
Radiation Detection System
The ND-2000 uses a halogen-quenched, energy-compensated Geiger-Mueller tube designed for Gamma and X-Ray radiation detection.
The energy-compensated detector helps provide a more consistent response across its specified energy range, making the instrument suitable for radiation surveys around industrial radiography operations and other controlled radiation environments.
Individual calibration adjustments are provided for each measurement range to support proper instrument calibration and verification procedures.
Rugged Field Design
The ND-2000 is designed for regular use in demanding industrial environments.
Its reinforced enclosure and integrated carrying handle provide additional protection during transportation and field operation. The instrument has also been designed and tested to withstand repeated drops under manufacturer test conditions.
Additional field-oriented features include:
Reinforced case and handle
Easy-to-read LCD display
Long battery operating life
Wide temperature operating range
Portable configuration
Regulated electronic circuitry
Meter tether clip
Three easily selectable radiation ranges
Dimensions & Weight
| Parameter | Imperial | Metric |
|---|---|---|
| Width | 4.4 in | 11.2 cm |
| Length | 7.75 in | 19.7 cm |
| Height | 6.25 in | 15.9 cm |
| Dimensions (L × W × H) | 7.75 × 4.4 × 6.25 in | 19.7 × 11.2 × 15.9 cm |
| Weight with Batteries | 3 lb 13 oz | 1.73 kg |
Note: Dimensions include the carrying handle.
Ideal Applications
Industrial radiography
Gamma radiography
X-Ray inspection operations
Non-destructive testing / NDT
Radiation-area surveys
Radiation-safety monitoring
Controlled-area verification
Source-handling operations
Pipeline radiography
Weld radiography
Fabrication-shop radiation monitoring
Field radiography
Radiation-protection programs
Industrial inspection facilities
Available ND-2000 Configurations
The ND-2000 platform is also available in additional configurations for specialized applications:
ND-2000A — Internal click-style audio
ND-2000C — Built-in dosimeter charger
ND-2000CA — Built-in dosimeter charger and audio
ND-2000P — External detector probe
ND-2000PA — External detector probe and audio
SKU ND2000 refers to the standard ND-2000 configuration.
About NDS Products
NDS Products manufactures radiation-detection and radiation-monitoring equipment for industrial radiography, non-destructive testing, radiation safety, and related applications.
Its survey meters are designed with an emphasis on durability, straightforward operation, and dependable field performance for professionals working around Gamma and X-Ray radiation sources.
