NM01L119

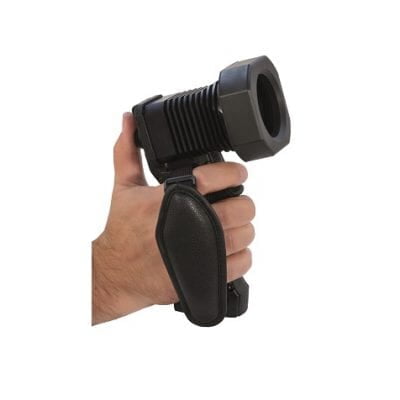

The Labino MB 3.0 ZEUS - Mains Unit (L-119) is a powerful and versatile handheld UV-A LED inspection lamp designed for demanding industrial applications requiring both high-intensity UV-A illumination and a convenient integrated white light. This mains-powered unit provides consistent and reliable performance for non-destructive testing (NDT) and general inspection purposes.
The MB 3.0 ZEUS emits a peak wavelength of 365 nm, optimal for exciting fluorescent indicators used in magnetic particle and penetrant testing. It generates a nominal intensity of approximately 4,500 μW/cm² at a distance of 38 cm (15 inches), ensuring excellent fluorescence response for clear indication detection. The beam size producing intensity above 1,000 μW/cm² has a diameter of approximately 9 inches (22 cm), providing a broad inspection area.
A key feature of the MB 3.0 ZEUS is its integrated white light LED, which allows for convenient post-inspection viewing of the test surface without the need for a separate light source. This mains-powered version (L-119) is designed for continuous operation via a standard AC power supply (100-240V AC). Its robust construction is IP68 waterproof and penetrant resistant, ensuring durability in challenging working environments. The lightweight design (approximately 732 grams / 1.6 lbs) and ergonomic pistol grip contribute to comfortable use during extended inspections.
Key Selling Points:
Mains Powered for Continuous Operation: Ensures uninterrupted use without battery concerns.
Optimal 365 nm UV-A Output: Effectively excites fluorescent indicators for NDT.
High Intensity UV-A (4,500 μW/cm² at 15 inches): Provides strong UV-A for clear flaw detection.
Integrated White Light LED: Facilitates convenient post-inspection viewing.
Wide UV-A Beam Coverage (9 inches at >1,000 μW/cm²): Enables efficient inspection of larger areas.
Rugged and Durable Design (IP68): Waterproof and penetrant resistant for demanding environments.
Lightweight and Ergonomic: Comfortable for extended use.
Complies with Industry Standards: Meets requirements such as ASTM E3022-18 and ISO 3059-12 (depending on the specific configuration and certifications).
Benefits:
Reliable and Consistent Performance: Mains power ensures continuous operation without power loss.
Effective Flaw Detection: High-intensity UV-A reveals even subtle indications.
Increased Inspection Efficiency: Wide UV-A beam covers more area quickly, and the integrated white light streamlines the inspection process.
Durability in Harsh Environments: Robust design minimizes downtime and replacement costs.
User Comfort: Lightweight and ergonomic design reduces operator fatigue.
Applications:
The Labino MB 3.0 ZEUS - Mains Unit (L-119) is ideal for various inspection applications, including:
Fluorescent Penetrant Testing (FPT)
Magnetic Particle Testing (MPT)
Quality control in manufacturing
Aerospace inspections
Automotive inspections
General industrial NDT where both UV-A and white light are required.
