NM01SS170K13DA0

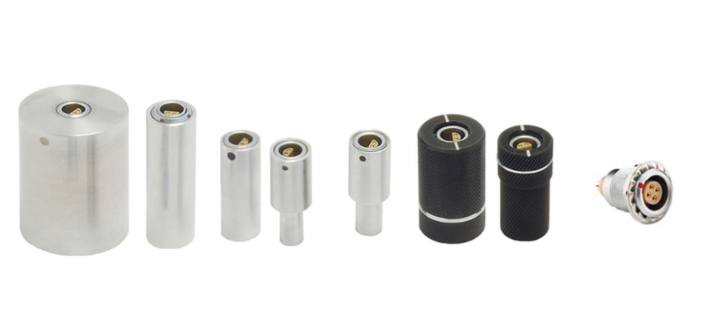

OKO-NDT SS170K13DA0 Surface MDF-Type (Multi-Differential) Eddy Current Probe - 170 kHz

Discover hidden defects, even under coatings, with the OKO-NDT SS170K13DA0 Surface Multi-Differential Eddy Current Probe. This advanced probe is designed to efficiently detect surface and near-surface flaws in a wide range of conductive materials. Featuring a specialized multi-differential (MDF-Type) coil configuration and optimized for 170 kHz, it offers superior sensitivity to localized defects while providing the capability to inspect through thicker paint coatings.

Key Features & Benefits:

• Multi-Differential (MDF-Type) Coil Configuration: This advanced design provides exceptional sensitivity to localized discontinuities like cracks and pits. It excels at suppressing signals from gradual material property changes or lift-off variations, ensuring clear and reliable flaw indications. Operating as a reflection scheme transducer, it offers high signal-to-noise ratio.

• Optimized for Subsurface Detection (170 kHz Frequency): The 170 kHz operating frequency is ideally suited for detecting not only surface-breaking flaws but also those lying underneath paint coatings up to 7 mm (0.27 inches) thick. This makes it invaluable for inspections where coating removal is impractical or undesirable.

• Versatile 13mm Tip Diameter: The 13mm (0.51 inch) tip diameter allows for efficient scanning of larger surface areas and components with large-radius curvatures, balancing coverage with defect detection capability.

• Broad Material Compatibility (Fe/NFe): Engineered for use on both ferrous (e.g., steels, cast iron) and non-ferrous (e.g., aluminum, titanium, copper alloys) conductive materials, making it a highly versatile tool across numerous industrial sectors.

• High Sensitivity to Localized Flaws: The multi-differential design ensures sharp and distinct indications for discrete flaws, improving probability of detection (POD).

• Compatible with OKO-NDT Flaw Detectors: Designed to work seamlessly with OKO-NDT Eddycon C, Eddycon CL, and other compatible eddy current flaw detectors from various manufacturers.

• Robust Construction: OKO-NDT probes are built for durability and reliable performance in demanding industrial inspection environments.

• Standardized Connectivity: Likely features a Triax Lemo/Fischer connector (common for OKO-NDT surface probes), ensuring broad compatibility with industry-standard instrumentation. Please confirm connector type upon purchase if critical for your specific instrument.

• Manufacturer: A product of OKO-NDT, a reputable manufacturer known for its high-quality NDT instrumentation and probes.

Specifications:

• Manufacturer: OKO-NDT

• Probe Type: Surface MDF-Type (Multi-Differential) Eddy Current Probe

• Model Designation: SS170K13DA0

• Operating Frequency: 170 kHz

• Tip Diameter: 13 mm (0.51 inches)

• Subsurface Detection Capability: Detects defects under paint coatings up to 7 mm (0.27 inches)

• Coil Configuration: Multi-Differential, Reflection Scheme (often described as "absolute transducer built according to the Reflection scheme")

• Material Compatibility: Ferrous (Fe) and Non-Ferrous (NFe) materials

• Recommended Surface: Plane objects or parts with large-radius curvature

• Connector Type: Likely Triax Lemo/Fischer (to be confirmed)

Typical Applications:

• General surface and near-surface crack detection in a variety of industries.

• Inspection of components for flaws without removing existing paint or non-conductive coatings.

• Detection of laminations or inclusions slightly beneath the surface.

• Inspection of welds (surface indications) in industrial settings.

• Quality control in manufacturing, aerospace, automotive, power generation, and oil & gas industries.
