NM01QW5060D

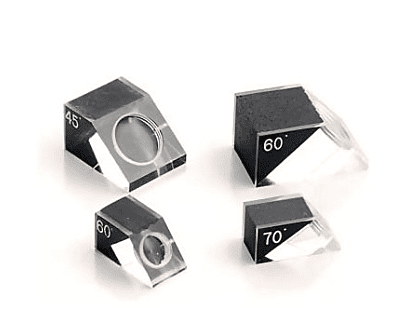

This Dakota Ultrasonics 60-degree angle beam wedge is a precision-engineered accessory designed for seamless integration with their Quick Change (QC) series ultrasonic transducers featuring a 1/2 inch diameter. This wedge is specifically designed to facilitate angled beam ultrasonic testing, a critical technique for the comprehensive evaluation of materials and the detection of subsurface imperfections that may not be readily identified using straight beam methods.

The core function of this wedge is to refract the ultrasonic beam generated by a compatible QC transducer at a precise 60-degree angle as it enters the material under inspection (typically calibrated for steel; the actual refracted angle may vary slightly depending on the acoustic velocity of the specific material being tested). This 60-degree angle is a widely employed standard in ultrasonic non-destructive testing, particularly in the examination of welds, where it proves highly effective in detecting specific types of defects such as lack of fusion, slag inclusions, and certain orientations of cracks.

Engineered for optimal compatibility with Dakota Ultrasonics' Quick Change (QC) probe system, this wedge incorporates a specialized interface that enables rapid, secure, and tool-free attachment and detachment of 1/2 inch diameter QC transducers. This intelligent quick-change mechanism significantly enhances the efficiency of inspections, allowing technicians to quickly adapt to different testing requirements without the need for time-consuming setup adjustments.

Manufactured by Dakota Ultrasonics, a recognized leader in the field of non-destructive testing (NDT) equipment, this 60-degree wedge is constructed to ensure reliable and consistent acoustic coupling between the transducer and the test surface. When used in conjunction with an appropriate ultrasonic couplant, it facilitates the efficient transmission of ultrasonic energy at the intended 60-degree angle, providing accurate and dependable results for a wide array of angled beam inspection applications. This wedge is an indispensable component for NDT professionals utilizing Dakota Ultrasonics' QC probe system for thorough material assessment.
