NM01TAN2000

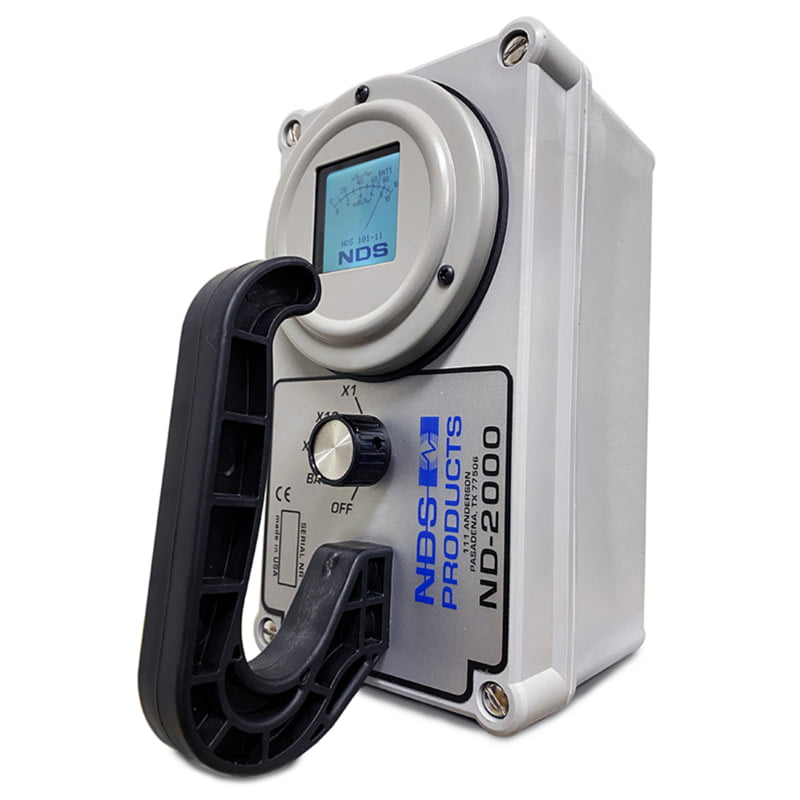

The ND-2000 High Range Gamma/X-Ray Survey Meter is a reliable, dust-proof radiographic survey meter ideal for high-sensitivity gamma and X-ray measurements in industrial and environmental settings. Engineered with a rugged nylon-reinforced casing, this unit provides accurate, stable readings in a variety of demanding environments. The ND-2000 is available in several configurations, including internal audio, dosimeter charger, and external probe options to cater to diverse surveying needs.
Options:
ND-2000A: With internal click-style audio
ND-2000C: Built-in dosimeter charger
ND-2000CA: Built-in charger and audio
ND-2000P: Includes an external detector probe
ND-2000PA: With probe and audio
Key Features:
Three Survey Ranges: 0-1000, 0-100, 0-10 mR/hr or 0-10,000, 0-1000, 0-100 µSv/hr
Display Options: LCD display in mR/hr and µSv/hr for versatile unit measurement
Sensitive Detection: Detects gamma and X-ray radiation from 80-2000 KeV with 20% accuracy
Long Battery Life: Operates on two "D" cell batteries, providing over 200 hours of continuous use with alkaline batteries
Durable Construction: Nylon-reinforced casing, drop-tested from one meter 25+ times without damage
Temperature and Humidity Tolerance: Operates in temperatures from -20 to 50 °C and up to 95% non-condensing humidity
Technical Specifications:
Display: LCD with dual-unit measurement (mR/hr and µSv/hr)
GM Tube Dimensions: Effective length 0.625", diameter 0.194", wall thickness 90 mg/cm²
Size and Weight: 4.4" W x 7.75" L x 6.25" H, weight 1.73 kg with batteries
Calibration and Maintenance: Individual calibration potentiometers for each range
Operating Environment: Rugged, dust-proof, temperature tolerance -20 to 50 °C
