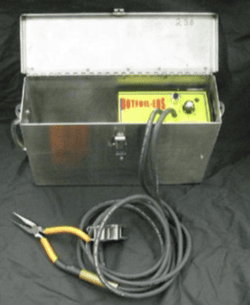

EHS — Thermocouple Welding Unit (EHS-TAU)
Portable Capacitive Discharge Unit for Thermocouple Attachment SKU: 23100COverview
The EHS Thermocouple Welding Unit (EHS-TAU) is a compact, high-performance capacitive discharge welding system designed specifically for the rapid and reliable attachment of thermocouples to metal surfaces. Engineered for precision and ease of use, this unit enables secure thermocouple junction welding with minimal heat input, ensuring accurate temperature measurement without damaging the base material.
Utilizing capacitor discharge technology, the EHS-TAU produces consistent, high-quality welds in milliseconds, making it ideal for field and workshop applications where speed, repeatability, and reliability are critical. Its portable design allows technicians to perform thermocouple attachment directly on-site, supporting efficient setup for heat treatment, welding, and process monitoring operations.
Widely used in industries such as oil & gas, power generation, and fabrication, the EHS-TAU welding unit provides a dependable solution for thermocouple installation in demanding industrial environments.
What's Included
| Item | Details |
|---|---|
| EHS-TAU Thermocouple Welding Unit | Main capacitive discharge welding unit |
| Welding Leads | Output cables for thermocouple attachment |
| Ground Cable | Workpiece grounding cable |
| Welding Handpiece | Handheld welding tool |
| Power Cable | Main power connection cable |
| Accessories Kit | Standard consumables and setup accessories |
| Operating Manual | User documentation |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 18.0 in |
| Width | 14.0 in |
| Height | 10.0 in |
| Dimensions (L × W × H) | 18.0 × 14.0 × 10.0 in |
| Weight | 22.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Welding Type | Capacitor Discharge (CD) |
| Application | Thermocouple junction welding |
| Output | Controlled energy discharge for precision welds |
| Operation | Manual handheld welding |
| Portability | Compact and field-ready design |
| Power Supply | Capacitor-based energy storage system |
| Cooling | Passive cooling |
Performance Features
Capacitive Discharge Welding Technology
Provides rapid, controlled energy release for clean, reliable thermocouple welds with minimal heat-affected zone.
Fast Welding Cycle
Produces secure welds in milliseconds, significantly reducing installation time in field applications.
Minimal Surface Impact
Low heat input prevents material distortion, preserving the integrity of the test surface.
Consistent Weld Quality
Ensures repeatable and dependable attachment of thermocouple junctions for accurate temperature monitoring.
User-Friendly Operation
- Simple controls for quick setup and use
- Lightweight handheld welding tool for precision work
- Minimal operator training required
- Efficient workflow for high-volume thermocouple installations
Built for Industrial Environments
- Durable construction for field and plant use
- Reliable performance under demanding conditions
- Compact and portable for on-site operations
- Designed for continuous industrial applications
Compatibility
Compatible with:
- Type K, J, and other thermocouple wire types
- Heat treatment and temperature monitoring systems
- Welding and fabrication environments
- Industrial process control applications
Ideal Applications
- Thermocouple attachment for heat treatment
- Welding preheat and interpass temperature monitoring
- Furnace and process temperature measurement
- Oil & gas pipeline projects
- Power generation maintenance and inspection
- Industrial fabrication and construction
About EHS
EHS (Environmental Health Systems) is a trusted manufacturer of industrial radiography and heat treatment equipment, delivering reliable and rugged solutions for demanding field applications. EHS products are widely used in oil & gas, pipeline construction, and heavy industry, where performance, durability, and precision are essential.
