NM01SU500K5A45DX127105B

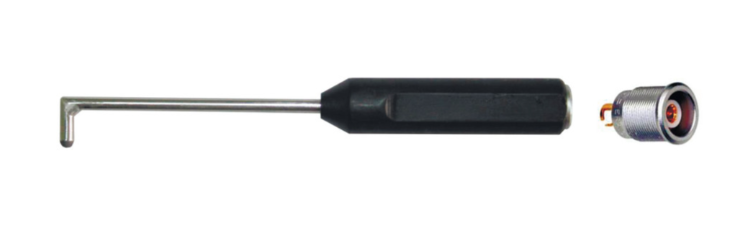

OKO-NDT 90° Angle Surface Eddy Current Probe - 500 kHz

Achieve highly precise and accessible surface crack detection with this specialized OKO-NDT 90° Angle Surface Eddy Current Probe. Engineered for demanding NDT applications, this probe combines a unique angled tip with a high-resolution small diameter and versatile frequency, making it ideal for inspecting tight geometries, corners, fillets, and other areas inaccessible to standard straight probes. It's suitable for both ferrous and non-ferrous materials.

Key Features & Benefits:

• Optimized 90° Angled Tip: The unique 90-degree bend of the probe tip allows for unparalleled access to difficult-to-reach areas such as weld toes, corners, radii, bolt holes, and complex component geometries, significantly expanding inspection capabilities.

• High Resolution (4.5mm Tip Diameter): The small 4.5mm diameter of the active sensing element provides exceptional resolution, enabling the detection of very fine, surface-breaking cracks and discontinuities.

• Versatile 500 kHz Operating Frequency: Operating at 500 kHz, this probe offers a balanced approach to eddy current inspection, providing excellent sensitivity to shallow surface and near-surface defects while maintaining a reasonable depth of penetration for various applications.

• Broad Material Compatibility (Fe/NFe): Designed for use on a wide range of conductive materials, including both ferrous (e.g., steels) and non-ferrous (e.g., aluminum, titanium, copper alloys), making it highly versatile across numerous industries.

• Extended Tip Length (12.7mm): The 12.7mm tip length (or "drop length") provides adequate reach for inspecting into recesses or around obstacles.

• Ergonomic Probe Length (105mm): The overall 105mm probe length offers a comfortable grip and precise control for manual scanning, reducing operator fatigue during prolonged inspections.

• High Sensitivity to Surface Discontinuities: Eddy current technology excels at detecting surface and near-surface cracks, corrosion, and material property variations, making this probe a vital tool for quality assurance and in-service inspection.

• Robust Construction: OKO-NDT probes are built for durability in industrial environments, ensuring reliable performance over time.

• Standardized Connector: Equipped with a Triax Lemo/Fischer connector, ensuring compatibility with a wide range of industry-standard eddy current flaw detectors.

• Manufacturer: A product of OKO-NDT, a reputable manufacturer known for its high-quality NDT instrumentation and probes.

Specifications:

• Manufacturer: OKO-NDT

• Probe Type: 90° Angle Surface Probe

• Tip Diameter: 4.5 mm

• Tip Length (Drop Length): 12.7 mm

• Overall Probe Length: 105 mm (approx. 4.1 inches)

• Operating Frequency: 500 kHz

• Material Compatibility: Ferrous (Fe) and Non-Ferrous (NFe) materials

• Coil Configuration: Likely Bridge Type (based on typical OKO-NDT designation "B" for this model, ensuring balanced operation and good signal-to-noise ratio)

• Connector Type: Triax Lemo / Fischer (confirm exact pin configuration if critical for specific instrument compatibility)

• Typical Model Code (OKO-NDT): SU500K5A4.5Dx12.7-105 B (where 5A likely denotes 90° angle, and B for Bridge type)

Typical Applications:

• Inspection of welds, particularly at the toe and root.

• Detection of fatigue cracks in fillets and corners of aircraft structures, automotive components, and industrial machinery.

• Inspection of bolt holes and fastener areas for cracking.

• Surface crack detection in complex or restricted access areas in manufacturing and in-service inspection.

• Quality control in aerospace, automotive, power generation, and general manufacturing industries.
