ROTIX - 4 Probe Weld Frame Scanner: 12.6 - 96.5 cm (4.9 – 38 in) diameter range, Olympus Omniscan SX/MX2/X3, M2M MANTIS/GEKKO LEMO encoder connector, 5mm (0.197in) primary and secondary pivot buttons
$17,299.00
Product Details

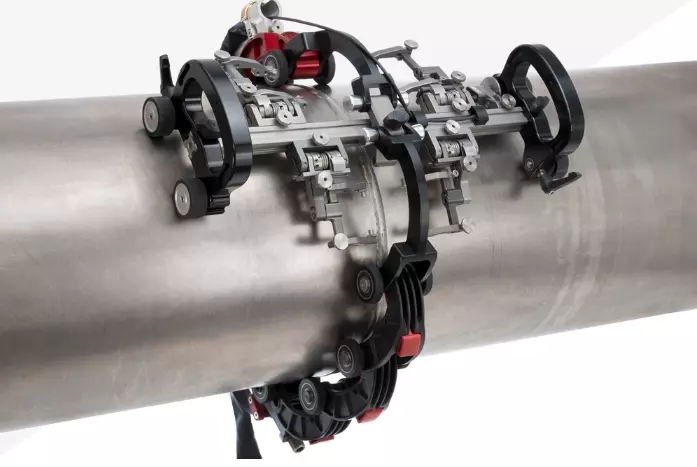

Unlock the power of precise encoded probe positioning with our cutting-edge manual scanner, the ROTIX - Four Probe Weld Frame. Our system is specifically designed to smoothly move phased array probes around pipes, vessels, and tanks, ensuring accurate and reliable weld inspection. Using our QuickLinks, you can quickly adapt the scanner to diameters ranging from 10.2 to 96.5 cm (4 to 38 in). Take your PAUT and TOFD inspections to a new level of precision on non-ferrous and ferrous materials with the ROTIX.
GENERAL
Pipe Range, Circumferential: 12.4 - 96.5 cm (4.9 - 38 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/in)
Probe Holding Capacity: 2 or 4 probes
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous or non-ferrous materials
Pipe Range, Circumferential: 12.4 - 96.5 cm (4.9 - 38 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/in)
Probe Holding Capacity: 2 or 4 probes
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous or non-ferrous materials
RADIAL CLEARANCE
Radial Scanner Clearance: 10.7 cm (4.2 in)
Radial Scanner Clearance: 10.7 cm (4.2 in)
SIZE & WEIGHT
Frame Height: 10.5 cm (4.1 in)
Frame Width: 43.5 cm (17.1 in)
Frame Depth: 12.5 cm (4.9 in)
Frame Weight: 1.4 kg (3.1 lb)
Frame Height: 10.5 cm (4.1 in)
Frame Width: 43.5 cm (17.1 in)
Frame Depth: 12.5 cm (4.9 in)
Frame Weight: 1.4 kg (3.1 lb)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 55.8 mm (2.2 in)2
Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 55.8 mm (2.2 in)2
