Magnafield — AC Magnetic Yoke (110V / 230V, 50/60 Hz)
Portable MPI Yoke Compliant with ASTM E709 & ASTM E1444 Standards SKU: YOKELITE110Overview

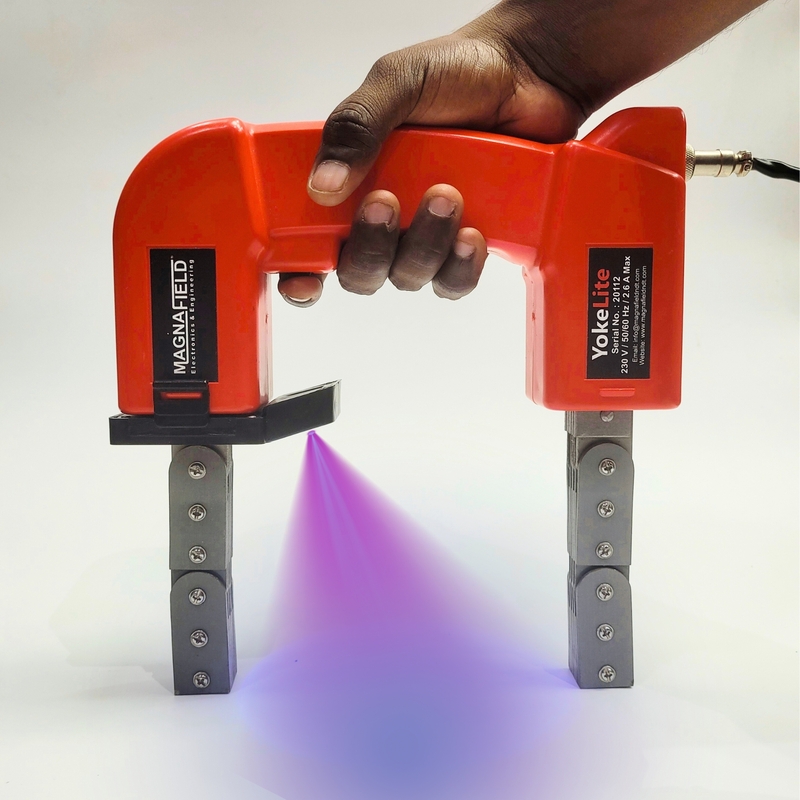

The Magnafield AC Magnetic Yoke is a portable and reliable inspection tool designed for magnetic particle inspection (MPI) of ferromagnetic materials. Available in 110V or 230V configurations with 50/60 Hz operation, this yoke provides strong and consistent AC magnetic fields for detecting surface discontinuities.
Engineered to comply with ASTM E709 and ASTM E1444 standards, the yoke ensures dependable performance and meets industry requirements for professional inspection applications. Its ergonomic and lightweight design makes it ideal for both field and workshop use, enabling efficient inspections in various environments.
Widely used in industries such as oil & gas, construction, and manufacturing, this AC yoke is essential for detecting cracks, seams, and other surface defects in welds and structural components.
What's Included
| Item | Details |
|---|---|
| AC Magnetic Yoke | Portable inspection yoke (110V or 230V) |
| Power Cable | Integrated power connection |
| Carrying Case | Protective storage and transport case (if applicable) |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 12.0 in |
| Width | 8.0 in |
| Height | 6.0 in |
| Dimensions (L × W × H) | 12.0 × 8.0 × 6.0 in |
| Weight | 6.5 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | AC magnetic yoke |
| Voltage Options | 110V or 230V |
| Frequency | 50/60 Hz |
| Magnetization Type | AC |
| Compliance | ASTM E709, ASTM E1444 |
| Application | Magnetic particle inspection (MPI) |
Performance Features
Strong AC Magnetic Field
Provides effective magnetization for detecting surface defects.
Standards Compliance
Meets ASTM E709 and ASTM E1444 requirements for professional MPI inspections.
Reliable Detection Capability
Optimized for identifying cracks, seams, and surface discontinuities.
Stable Performance
Ensures consistent inspection results across applications.
User-Friendly Design
- Lightweight and portable
- Ergonomic grip for easy handling
- Simple operation for quick inspections
- Designed for efficient workflows
Built for Industrial Environments
- Durable construction for field and shop use
- Reliable performance in demanding conditions
- Suitable for continuous operation
- Designed for professional NDT applications
Compatibility
Compatible with:
- Dry and wet magnetic particles
- MPI inspection procedures
- Ferromagnetic materials
- Industrial NDT workflows
Ideal Applications
- Weld inspection and crack detection
- Structural steel inspection
- Pipeline and pressure vessel inspection
- Oil & gas and construction industries
- Fabrication and maintenance
- General magnetic particle inspection (MPI)
About Magnafield
Magnafield provides high-quality magnetic particle inspection equipment designed for reliability and performance. Their products are widely used in industrial NDT applications where accurate defect detection and compliance with industry standards are essential.
