PZX-7 Series, Precision Thickness Gauges. Specifications: ▶ Powered by: 120MHz FPGA timing. ▶ 100 volt spike pulser. ▶ Measure Modes: Pulse-Echo, Echo-Echo, Interface- Echo, and Plastics. ▶ Automatic time dependent gain (TDG) with manual override. ▶ Data Loger DL, 10,000 readings in 40 files of 250 readings per file. ▶ Single element delay line and contact transducers (5 to 20MHz). ▶ Low temperature custom LCD display (-22F/-30C). ▶ CDC compatible serial over USB. ▶ Optional serial RS232 or Bluetooth module. ▶ USB-C connectivity. ▶ Data: 32 megabit flash memory. ▶ IP65 rating. ▶ 5 year warranty. DAKOTA NDT SKU: Z-308-0001
Choose Quantity

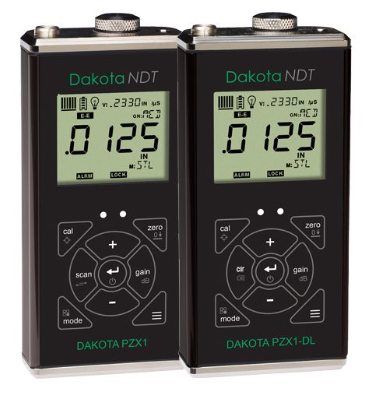

Dakota NDT — PZX-7 Series Precision Thickness Gauge
High-Performance Ultrasonic Precision Thickness Gauge with Data Logger & USB-C Connectivity SKU: Z-308-0001Overview
The Dakota NDT PZX-7 Series Precision Thickness Gauge is a high-performance ultrasonic thickness gauge designed for accurate precision measurement in professional NDT applications. Powered by 120 MHz FPGA timing and a 100 volt spike pulser, this gauge provides reliable measurement performance for demanding thickness inspection workflows.
The PZX-7 Series supports multiple measurement modes including Pulse-Echo, Echo-Echo, Interface-Echo, and Plastics, giving inspectors flexibility across different materials and inspection conditions. Its automatic time dependent gain (TDG), with manual override, helps optimize signal response and supports dependable readings in precision thickness applications.
Built with a data logger capable of storing 10,000 readings in 40 files, USB-C connectivity, 32 megabit flash memory, IP65 protection, and a low-temperature custom LCD display, the PZX-7 Series is designed for field, shop, and laboratory use where accuracy, durability, and reliable data handling are essential.
What's Included
| Item | Details |
|---|---|
| Thickness Gauge | Dakota NDT PZX-7 Series precision thickness gauge |
| Data Logger | DL capability, 10,000 readings in 40 files |
| Connectivity | USB-C / CDC compatible serial over USB |
| Documentation | User manual / operating instructions, if included |
| Warranty | 5-year warranty |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
| Length | 12.0 in |
| Width | 10.0 in |
| Height | 5.0 in |
| Dimensions (L × W × H) | 12.0 × 10.0 × 5.0 in |
| Weight | 4.0 lb |
Key Specifications
| Parameter | Details |
| Instrument Type | Precision ultrasonic thickness gauge |
| Series | PZX-7 |
| Timing System | 120 MHz FPGA timing |
| Pulser | 100 volt spike pulser |
| Measurement Modes | Pulse-Echo, Echo-Echo, Interface-Echo, Plastics |
| Gain Control | Automatic TDG with manual override |
| Data Logger | 10,000 readings |
| File Storage | 40 files, 250 readings per file |
| Transducer Compatibility | Single element delay line and contact transducers |
| Transducer Frequency Range | 5 to 20 MHz |
| Display | Low-temperature custom LCD |
| Display Temperature Rating | -22°F / -30°C |
| Connectivity | USB-C |
| USB Communication | CDC compatible serial over USB |
| Optional Communication | RS232 or Bluetooth module |
| Memory | 32 megabit flash memory |
| Environmental Rating | IP65 |
| Warranty | 5 years |
| Manufacturer | Dakota NDT |
| SKU | Z-308-0001 |
Performance Features
120 MHz FPGA Timing
Provides high-speed precision timing for accurate ultrasonic thickness measurement.
Multiple Measurement Modes
Supports Pulse-Echo, Echo-Echo, Interface-Echo, and Plastics modes for flexible inspection workflows.
Automatic TDG with Manual Override
Helps optimize signal response automatically while allowing user control when needed.
Advanced Data Logging
Stores up to 10,000 readings across 40 files, supporting organized inspection records and reporting.
User-Friendly Design
- USB-C connectivity for modern data transfer
- CDC compatible serial over USB communication
- Low-temperature LCD display for cold-condition inspections
- Optional RS232 or Bluetooth module support
- Designed for efficient precision thickness measurement workflows
Built for Industrial Environments
- IP65 rating for field-ready protection
- Durable design for professional NDT applications
- Suitable for field, shop, and laboratory inspections
- Reliable performance in precision measurement and QA/QC programs
- Backed by a 5-year warranty
Compatibility
Compatible with:
- Single element delay line transducers
- Single element contact transducers
- 5 to 20 MHz ultrasonic probes
- Precision thickness measurement workflows
- Data logging and USB communication workflows
- Industrial QA/QC and material verification programs
Ideal Applications
- Precision ultrasonic thickness measurement
- Thin material inspection
- Plastics thickness measurement
- Coating and interface measurement workflows
- Manufacturing quality control
- Aerospace and industrial inspection
- Laboratory and field measurement programs
- Material verification and documentation
About Dakota NDT
Dakota NDT is a trusted manufacturer of ultrasonic testing equipment, thickness gauges, flaw detectors, probes, cables, and inspection accessories. Their products are widely used in professional NDT environments where accuracy, durability, and consistent inspection performance are essential.
