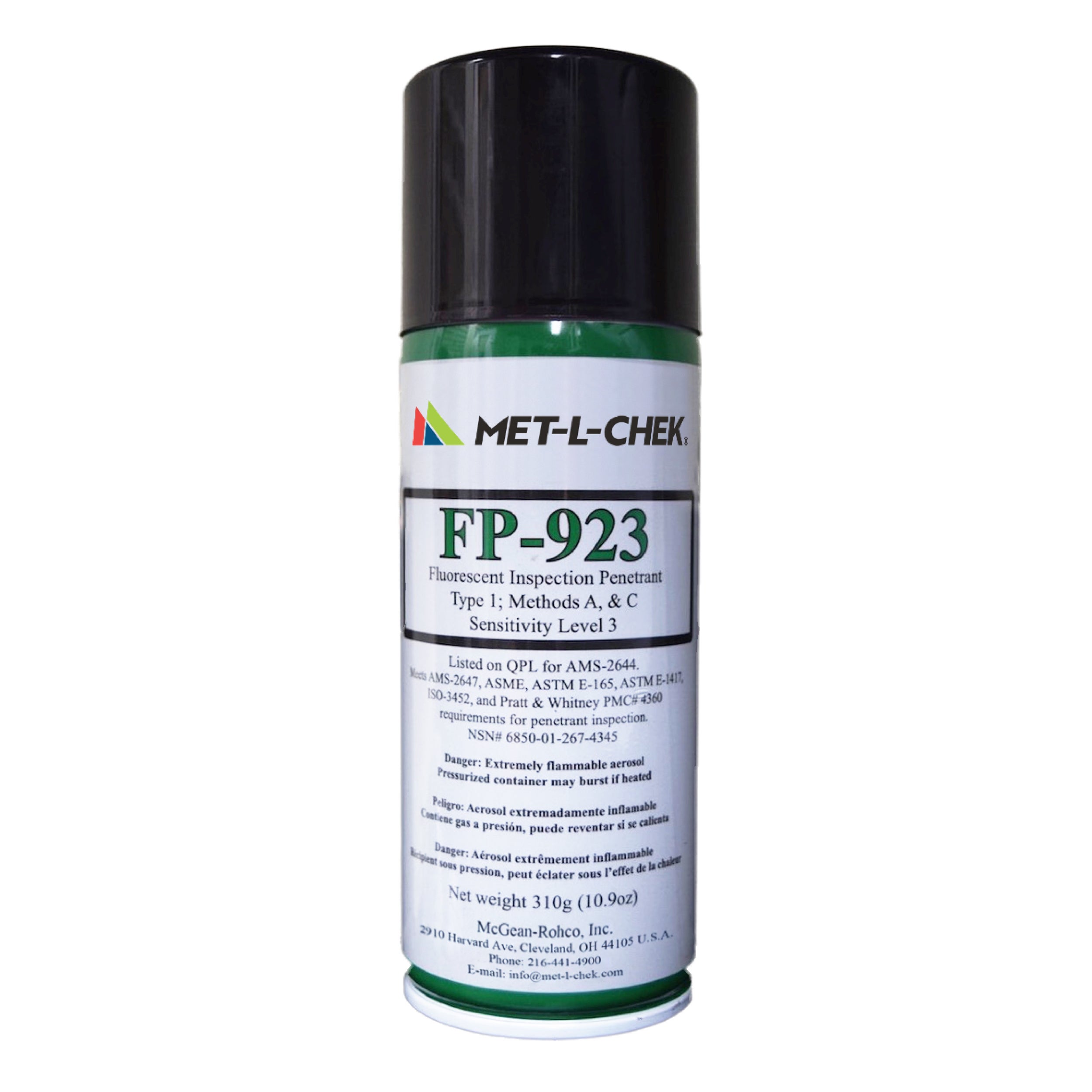

Met-L-Chek — FP-923 Fluorescent Water-Washable Penetrant
Level 3 High-Sensitivity Fluorescent Penetrant for Methods A and C, Case of 12 × 16 oz / 400 mL Aerosol CansSKU: 29109-0001
Overview
The Met-L-Chek FP-923 is a Level 3 fluorescent penetrant designed for detecting fine surface-breaking discontinuities in nonporous materials. Its high-sensitivity formulation supports demanding liquid penetrant inspections where small cracks, laps, seams, porosity, and other surface-open defects must be clearly identified.
FP-923 can be used in Method A water-washable procedures and Method C solvent-removable procedures. During inspection, the penetrant enters surface-breaking discontinuities through capillary action. After the excess penetrant is removed and an approved developer is applied, retained penetrant produces fluorescent indications under suitable UV-A illumination.
Supplied as a case of 12 aerosol cans, each containing 16 oz / 400 mL, SKU 29109-0001 provides a portable and practical supply for aerospace, fabrication, maintenance, manufacturing, and industrial QA/QC inspection programs.
What's Included
| Item | Details |
|---|---|
| Fluorescent Penetrant | Met-L-Chek FP-923 |
| Penetrant Type | Fluorescent |
| Sensitivity Level | Level 3 |
| Removal Methods | Method A and Method C |
| Container Type | Aerosol can |
| Can Size | 16 oz / 400 mL |
| Package Quantity | 12 aerosol cans |
| Total Packaged Volume | 192 oz / 4.8 L |
| Inspection Method | Liquid Penetrant Testing / PT |
| Manufacturer | Met-L-Chek |
| SKU | 29109-0001 |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 12.0 in |
| Width | 9.0 in |
| Height | 9.0 in |
| Dimensions (L × W × H) | 12.0 × 9.0 × 9.0 in |
| Weight | 13.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Fluorescent liquid penetrant |
| Model | FP-923 |
| Penetrant Classification | Type I fluorescent |
| Sensitivity Level | Level 3 |
| Removal Method A | Water washable |
| Removal Method C | Solvent removable |
| Product Form | Ready-to-use aerosol |
| Can Size | 16 oz / 400 mL |
| Package Quantity | 12 cans |
| Primary Use | Detection of surface-breaking discontinuities |
| Viewing Method | UV-A illumination under controlled visible-light conditions |
| Applicable Materials | Suitable nonporous materials |
| Inspection Method | Liquid Penetrant Testing / PT |
| Intended Environment | Field, shop, laboratory, manufacturing, maintenance, and QA/QC |
| Manufacturer | Met-L-Chek |
| SKU | 29109-0001 |
Inspection Methods
| Method | Description |
|---|---|
| Method A | Excess penetrant is removed using a controlled water-washing process |
| Method C | Excess penetrant is removed using an approved solvent remover and lint-free cloth |
| Sensitivity Level 3 | High-sensitivity classification for detecting fine surface-breaking discontinuities |
| Viewing Conditions | Fluorescent indications are evaluated using suitable UV-A illumination |
The selected removal process, dwell time, development time, and viewing conditions should follow the applicable written inspection procedure.
Performance Features
Level 3 High Sensitivity
Designed to reveal small and fine surface-breaking discontinuities that may require greater sensitivity than general-purpose penetrant systems.
Fluorescent Indication Visibility
Produces bright fluorescent indications under suitable UV-A illumination for effective discontinuity detection.
Method A Compatibility
Supports water-washable inspection procedures where excess penetrant is removed using controlled water application.
Method C Compatibility
Can be incorporated into solvent-removable procedures for localized, field, or limited-access inspections.
Aerosol Application
Provides convenient and controlled application without requiring separate tanks, pumps, or spray equipment.
Case of 12 Cans
Provides a practical quantity for inspection teams performing routine or distributed penetrant-testing work.
User-Friendly Design
Ready-to-use aerosol formulation requires no mixing
Portable cans fit easily into field inspection kits
Controlled spray pattern supports localized application
Suitable for both Method A and Method C workflows
Level 3 sensitivity supports demanding inspections
Individual cans can be distributed among technicians and work areas
Case packaging supports routine inspection inventory
Easy to integrate into established fluorescent penetrant systems
Built for Industrial Environments
Designed for professional fluorescent penetrant inspection
Suitable for fabrication, manufacturing, maintenance, and QA/QC workflows
Practical for field, shop, and laboratory inspection
Supports inspection of welds, castings, forgings, and machined components
Aerosol format supports difficult-access and localized applications
High-sensitivity formulation supports critical component inspection
Intended for use according to applicable PT procedures and acceptance criteria
Pressurized cans should be stored and handled according to workplace safety requirements
Application Guidelines
Clean and dry the inspection surface before applying penetrant
Shake the aerosol can as required before use
Apply enough FP-923 to completely wet the inspection area
Allow the specified penetrant dwell time
Remove excess penetrant using the selected Method A or Method C procedure
Avoid excessive washing or cleaning that could remove penetrant from discontinuities
Dry the inspection surface when required
Apply an approved compatible developer
Allow the specified development time
Inspect under suitable UV-A illumination and controlled ambient visible light
Clean the component after inspection when required
Compatibility
Compatible with:
Method A water-washable penetrant procedures
Method C solvent-removable penetrant procedures
Approved penetrant cleaners and removers
Approved dry, aqueous, or nonaqueous developers
UV-A LED and conventional inspection lamps
UV-A and visible-light meters
Suitable nonporous metallic components
Weld, casting, forging, and machined-part inspection
Field and laboratory liquid penetrant programs
Industrial QA/QC documentation workflows
The penetrant, remover, developer, and cleaning materials should be approved for use together under the applicable inspection procedure.
Ideal Applications
Fluorescent liquid penetrant inspection
Fine surface-crack detection
Weld inspection
Casting inspection
Forging evaluation
Machined component inspection
Aerospace component testing
Automotive component inspection
Turbine and engine-part inspection
Fabrication QA/QC
Maintenance and repair inspection
Field NDT service work
Leak-path detection
Surface-breaking porosity detection
High-sensitivity inspection programs
Industrial quality control
Safety and Handling
Use only with adequate ventilation
Keep away from heat, sparks, flames, and ignition sources
Do not spray near hot surfaces or energized equipment
Avoid breathing aerosol mist or vapors
Wear appropriate eye, skin, and respiratory protection
Do not puncture or incinerate aerosol cans
Protect containers from excessive heat and direct sunlight
Store cans securely in an approved location
Follow the current Safety Data Sheet and workplace procedures
Dispose of empty or partially filled containers according to applicable requirements
About Met-L-Chek
Met-L-Chek manufactures fluorescent and visible penetrants, developers, cleaners, removers, emulsifiers, magnetic particle materials, and related inspection chemistry for professional non-destructive testing. Its products support aerospace, automotive, fabrication, manufacturing, maintenance, and industrial quality-control applications.
