DeFelsko — PosiTest® LPD Basic Kit
Low-Voltage Wet-Sponge Pinhole and Holiday Detector for Coatings on Metal and ConcreteSKU: LPDKITB
Overview
The DeFelsko PosiTest LPD Basic Kit is a portable low-voltage pinhole detector designed to locate holidays, pinholes, cracks, thin spots, and other discontinuities in nonconductive coatings applied over conductive metal or concrete substrates.
The instrument uses a moistened rectangular sponge electrode that is passed across the coated surface. When the sponge encounters a discontinuity extending to the substrate, the electrical circuit is completed and the instrument activates audible and visible alarms.
Designed for coating systems up to 500 µm / 20 mils thick, the PosiTest LPD offers four regulated voltage configurations, automatic self-testing, GroundSense grounding verification, and rugged IP65-rated construction. The Basic Kit includes the equipment required to begin testing with a rectangular sponge assembly and stores the instrument and accessories in a protective hard-shell case.

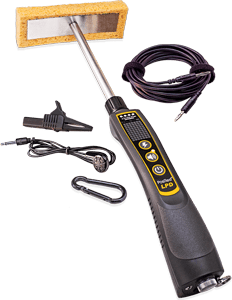

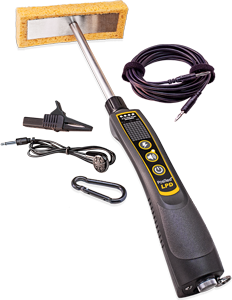

What's Included
| Item | Details |
|---|---|
| Pinhole Detector | DeFelsko PosiTest LPD |
| Base Tube | 0.2 m / 8 in |
| Sponge Hardware | Rectangular sponge mounting assembly |
| Electrode | Rectangular sponge |
| Insulating Component | Insulating collar |
| Ground Wire | 4.5 m / 15 ft |
| Ground Connection | Detachable ground clip |
| Batteries | Three AAA batteries |
| Carrying Accessories | Wrist strap and carabiner |
| Calibration Documentation | Long Form Certificate of Calibration traceable to NIST |
| Documentation | Operating instructions |
| Storage | Protective hard-shell case |
| Manufacturer | DeFelsko |
| SKU | LPDKITB |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 18.0 in |
| Width | 14.0 in |
| Height | 6.0 in |
| Dimensions (L × W × H) | 18.0 × 14.0 × 6.0 in |
| Weight | 7.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Low-voltage pinhole and holiday detector kit |
| Model | PosiTest LPD |
| Kit Configuration | Basic Kit |
| Detection Method | Low-voltage wet-sponge testing |
| Coating Thickness Range | 0–500 µm / 0–20 mils |
| Output Configurations | Four regulated voltage and sensitivity settings |
| Available Test Voltages | 9 V, 67.5 V, and 90 V configurations |
| Alarm Types | Audible and visible |
| Ground Verification | GroundSense visual grounding confirmation |
| Power Source | Three AAA alkaline or rechargeable batteries |
| Battery Life | More than 150 hours, depending on battery type |
| Operating Temperature | 14 °F to 122 °F / -10 °C to 50 °C |
| Ingress Protection | Meets or exceeds IP65 |
| Instrument Dimensions | 10.6 × 2.3 × 2.1 in without wand |
| Instrument Weight | 6.4 oz without batteries |
| Data Storage | Not included |
| Warranty | Two years |
| Manufacturer | DeFelsko |
| SKU | LPDKITB |
Applicable Standards
The PosiTest LPD is designed to support testing performed according to applicable requirements within standards and practices including:
ISO 14654
ISO 29601
ISO 8289-A
ASTM G62
ASTM G6
ASTM D5162
BS 7793-2
NACE TM0384
NACE SP0188
AS 3894.2
JIS K 6766
The voltage configuration and inspection procedure should be selected according to the governing specification and coating system.
Performance Features
Low-Voltage Wet-Sponge Detection
Detects coating discontinuities by identifying electrical current flow between the moistened sponge and the conductive substrate.
Four Regulated Output Configurations
Provides multiple voltage and sensitivity combinations for compatibility with different procedures, substrates, and international standards.
Automatic Self-Test
Checks the instrument’s voltage calibration when powered on to support operational confidence before testing.
GroundSense™ Verification
Provides visible confirmation that the instrument is properly connected to the conductive substrate.
Audible and Visible Alarms
Alerts the operator when the sponge passes over a pinhole, holiday, crack, or other coating discontinuity.
Regulated Voltage Under Load
Maintains the selected output during testing to support reliable detection of small coating defects.
User-Friendly Design
Simple three-button operation with graphic controls
Bright multifunction LEDs communicate instrument status
Lightweight ergonomic housing supports extended inspection work
Rectangular sponge assembly is suitable for routine flat-surface testing
Wrist strap and carabiner support convenient field handling
Uses commonly available AAA batteries
GroundSense helps reduce the risk of testing with an incomplete ground connection
Hard-shell case keeps the detector and accessories organized
Instrument arrives calibrated and ready for use
Built for Industrial Environments
Rugged, environmentally sealed enclosure
Weatherproof, dustproof, and shock-resistant construction
Meets or exceeds IP65 ingress-protection requirements
Suitable for field, fabrication, maintenance, and QA/QC inspections
Supports testing on coated metal and concrete substrates
Practical for pipeline, tank, vessel, flooring, and structural coating programs
Long Form Certificate of Calibration supports quality-system documentation
Intended for operation according to applicable coating-inspection procedures
Compatibility
Compatible with:
Nonconductive coatings applied over metal
Suitable coatings applied over conductive concrete
Rectangular wet-sponge electrodes
DeFelsko PosiTest LPD extension rods
Compatible roller and internal-diameter sponge accessories
Custom sponge configurations with applicable hardware
Compatible wetting agents
Magnetic grounding posts and extended ground wires
Low-voltage holiday-detection procedures
Protective-coating QA/QC programs
Roller, internal-diameter, extension, custom-sponge, and additional grounding accessories are not included in the Basic Kit.
Ideal Applications
Protective-coating inspection
Holiday and pinhole detection
Pipeline coating inspection
Storage-tank lining inspection
Pressure-vessel coating inspection
Concrete coating evaluation
Industrial flooring inspection
Marine and offshore coating inspection
Water and wastewater infrastructure
Bridge and structural-steel coatings
Fabrication QA/QC
Maintenance and repair verification
Corrosion-control programs
Field coating inspection
Post-application quality verification
