NM01LFLETT1/4M
LEAD FIGURE 1/4" x 1/16" (7 X 1.5 mm) , LETTERS, MOUNTED PLASTIC BASE, PKG OF 100
Choose Quantity

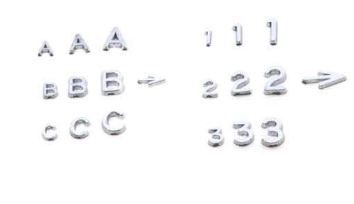

This package contains 100 individual lead letter figures, each precisely manufactured to a height of approximately 1/4 inch (7 mm) and a thickness of 1/16 inch (1.5 mm). These radiopaque letters are securely mounted on a thin, transparent plastic base, facilitating ease of handling and accurate placement during industrial radiography procedures. They serve as essential identification markers, creating clear and permanent notations on radiographic film.
Key Features:
Radiopaque Lead Construction: Fabricated from lead, a material highly effective at attenuating X-rays and gamma rays, ensuring distinct and legible markings on radiographs.
Standard Dimensions: Each letter conforms to a standardized size of approximately 1/4 inch (7 mm) in height and 1/16 inch (1.5 mm) in thickness, a common specification for industrial radiography identification markers.
Assorted Letter Set: The package includes 100 individual letter figures. The specific assortment of letters may vary depending on the supplier, potentially containing a mixed selection, repetitions of common letters, or multiple sets of the alphabet.
Convenient Plastic Base Mounting: Each lead letter is affixed to a thin, clear plastic base. This mounting provides several advantages, including simplified handling, precise positioning on the item under inspection, and prevention of direct lead contact with the test surface.
Bulk Packaging: Supplied in a package containing 100 individual lead letter figures, suitable for high-volume radiographic operations.
Permanent Radiographic Identification: Designed to produce sharp, high-contrast letter markings on developed radiographic film, providing a permanent means of identifying specific areas, views, or components within the inspection.
Applications:
Industrial Radiography (Non-Destructive Testing): Primarily used in non-destructive testing to clearly identify specific regions of interest on components being examined using X-rays or gamma rays, such as welds, castings, and structural elements.
Radiographic Film Annotation: Placed directly on the object before exposure, the lead letters create opaque images on the processed film, serving as permanent annotations.
Inspection Traceability: Crucial for maintaining accurate records and facilitating the tracking of radiographic inspections by clearly labeling different exposures or sections of a test item.
Quality Assurance Procedures: An integral part of quality control processes in manufacturing and fabrication industries that rely on radiographic inspection for defect detection and material integrity verification.
Importance:
Ensures Clear and Unambiguous Identification: Provides a reliable method for creating easily readable identification marks on radiographic images.
Establishes a Permanent Record: The lead markings become a permanent feature of the radiograph, ensuring long-term referenceability and traceability.
Aids in Accurate Interpretation: Assists radiographers and inspection personnel in correctly interpreting and referencing specific locations or features within the radiographic image.
Supports Regulatory Compliance: Often mandated by industry-specific standards and regulatory requirements for thorough and auditable radiographic examinations.
