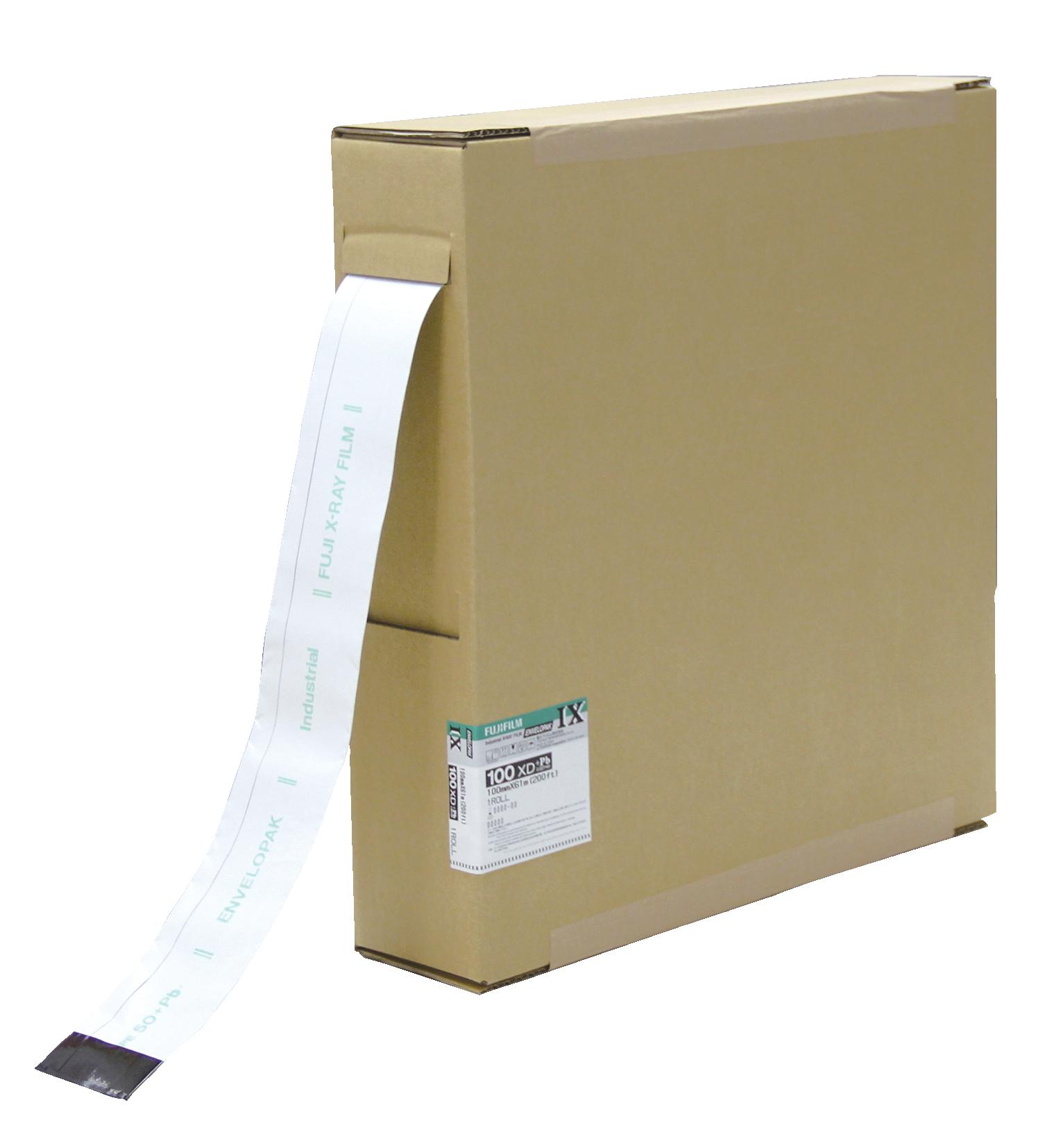

Fujifilm — Industrial X-Ray Film IX80XD
Very-Fine-Grain Industrial Radiographic Film, L Roll, 70 mm × 168 mSKU: Not Provided
Overview
Fujifilm Industrial X-Ray Film IX80XD is a very-fine-grain radiographic film designed for non-destructive testing applications requiring very high contrast, medium film speed, and dependable image quality. It supports the detection and documentation of internal discontinuities in welds, castings, aerospace components, and other industrial materials.
The 70 mm × 168 m continuous-roll format allows technicians to prepare film lengths according to the component geometry, cassette size, exposure arrangement, and applicable radiographic procedure. Its narrow width is especially practical for pipeline welds, circumferential joints, and elongated inspection areas.
IX80XD is suitable for compatible industrial X-ray and gamma-ray inspection workflows. It can be processed using approved manual or automatic film-processing methods and provides a permanent radiographic record for interpretation, reporting, and archiving.
What's Included
| Item | Details |
|---|---|
| Industrial Radiographic Film | Fujifilm IX80XD |
| Film Format | Continuous L Roll |
| Film Width | 70 mm |
| Roll Length | 168 m |
| Film Characteristics | Very fine grain, very high contrast, and medium speed |
| Primary Use | Industrial X-ray and gamma-ray radiography |
| Inspection Method | Radiographic Testing / RT |
| Manufacturer | Fujifilm |
| SKU | Not provided |
Note: Film cassettes, lead screens, processing chemicals, identification markers, cutting tools, and darkroom accessories are not included unless specified separately.
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 12.0 in |
| Width | 12.0 in |
| Height | 6.0 in |
| Dimensions (L × W × H) | 12.0 × 12.0 × 6.0 in |
| Weight | 12.0 lb |
Actual shipping dimensions and weight may vary according to the manufacturer’s protective packaging.
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Industrial radiographic film |
| Model | IX80XD / 80XD |
| Film Format | Continuous roll |
| Packaging Designation | L Roll |
| Film Width | 70 mm / approximately 2.76 in |
| Roll Length | 168 m / approximately 551 ft |
| Grain Classification | Very fine grain |
| Contrast | Very high |
| Film Speed | Medium |
| ISO 11699-1 Classification | C4 |
| ASTM E1814 Classification | Class I |
| JIS K 7627 Classification | T2 |
| Film Base | Blue-tinted polyester |
| Nominal Film-Base Thickness | 0.175 mm |
| Compatible Processing | Manual and automatic |
| Inspection Method | Radiographic Testing / RT |
| Manufacturer | Fujifilm |
| SKU | Not provided |
The film-system classifications apply when the film is processed under the manufacturer’s recommended conditions.
Performance Features
Very-Fine-Grain Film Structure
Supports detailed radiographic imaging and the detection of small internal discontinuities.
Very High Contrast
Produces strong density separation to help inspectors distinguish relevant component features and indications.
Medium Film Speed
Provides a practical balance between image detail and exposure efficiency for a range of industrial radiography applications.
70 mm Continuous Roll
Allows custom film lengths to be prepared for pipelines, weld seams, curved components, and other elongated inspection areas.
168 m Bulk Length
Provides an extended supply for departments performing frequent or production-level radiographic testing.
Stable Industrial Imaging Performance
Designed to provide consistent image quality and product stability across professional NDT applications.
User-Friendly Design
Continuous roll supports custom-length film preparation
Narrow 70 mm width is practical for pipeline and weld radiography
Long 168 m roll supports high-volume inspection workflows
Suitable for compatible flexible and rigid film cassettes
Can be used with appropriate lead intensifying screens
Supports manual and automatic processing
Provides a permanent physical inspection record
Easy to integrate into established darkroom workflows
Built for Industrial Environments
Designed for professional industrial radiographic testing
Suitable for fabrication, construction, manufacturing, and maintenance
Practical for field and laboratory inspection programs
Supports examination of welds, castings, and aerospace components
Bulk-roll configuration supports repeated film preparation
Suitable for asset-integrity and QA/QC documentation
Must be protected from visible light and unintended radiation exposure
Intended for use according to approved radiographic and radiation-safety procedures
Film Handling and Processing
Store unopened film in a cool, dry, radiation-controlled location
Protect the roll from heat, humidity, pressure, and chemical vapors
Open, cut, and load the film only under approved darkroom or safelight conditions
Handle the film carefully to avoid fingerprints, scratches, creases, and pressure marks
Cut the required film length using clean darkroom tools
Load the film into a compatible cassette or film holder
Use approved manual or automatic processing chemistry
Maintain the required development time and temperature
Wash and dry the processed film thoroughly
Store completed radiographs according to applicable retention requirements
Compatibility
Compatible with:
Industrial X-ray inspection systems
Iridium-192 gamma-radiography sources
Cobalt-60 gamma-radiography sources
Flexible film cassettes
Rigid film holders
Lead intensifying screens
Radiographic identification markers
Manual processing tanks
Automatic industrial film processors
Compatible developer and fixer chemistry
Film viewers and densitometers
Pipeline and weld radiography workflows
Exposure conditions, radiation source, screens, processing chemistry, and required image quality should be established according to the applicable procedure.
Ideal Applications
Pipeline weld inspection
Circumferential weld radiography
Structural weld inspection
Casting evaluation
Aerospace component inspection
Pressure-vessel inspection
Storage-tank inspection
Boiler and heat-exchanger inspection
Fabrication QA/QC
Maintenance radiography
Internal discontinuity detection
Corrosion and wall-loss evaluation
Narrow-component radiography
Production-level film inspection
Permanent radiographic documentation
Safety and Handling
Industrial radiography must be performed by trained and authorized personnel
Establish controlled areas and radiation boundaries before exposure
Use approved survey meters and personal dosimetry
Prevent unauthorized entry into the exposure area
Protect unexposed film from radiation sources and visible light
Wear appropriate protection when handling processing chemicals
Follow the applicable chemical safety documentation
Dispose of exhausted processing solutions according to applicable requirements
Store the film away from heat, moisture, and chemical contamination
Follow all applicable radiation-protection procedures and regulations
