NM0321430
- QuickStart set-up enabling ‘out of the box’ operation
- Expert configuration via PC wizard with online help
- Quick and easy commissioning – no need for expert knowledge
- Clear information of process with scrolling, custom messages
- Custom alarm messages for easy understanding
- Recipe selection from operator interface
- Internal timer and setpoint programming
- Instant indication of heater faults with integral ammeter
- Remote setpoint – solution for multi-zone applications

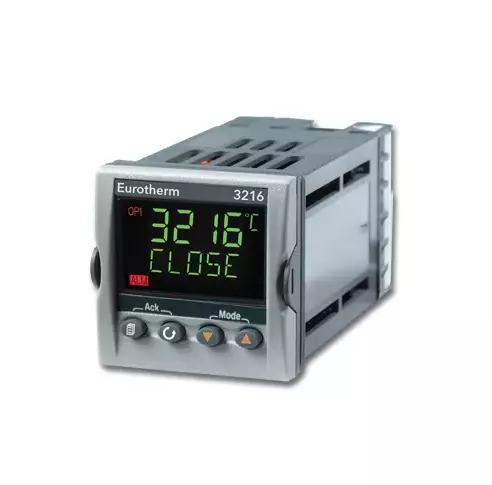

The emphasis is on simplicity and ease of use. A simple ‘QuickStart’ code can be used to configure all the functions essential for controlling your process. This includes input sensor type, measurement range, control options and alarms – making ‘Out of the Box’ operation truly achievable. If you prefer, you can specify what you need at point of order and we will ship the unit preconfigured to your requirements.
In operator mode every parameter has a scrolling text message describing its function and is available in English, German, French, Spanish or Italian. More advanced features are configured using Eurotherm iTools, a PC based configuration wizard which is easy to use and an instructive guide to all the functions in the controller.
Ideal for:
- Plastics – extrusion
- Heat treatment
- Hot runner
- Thermal forming
- Ovens & chillers
- Stress relieving
Features:
- 8 Segment programmer
- Heater failure detection
- Current monitoring
- Internal timer
- Scrolling text messages
- Recipes
- Modbus comms
- Modbus SP retransmission
- Analog retransmission
- Remote setpoint
- Help text
| Input Type | CT, mA, mV, RTD, TC |
|---|---|
| PV Accuracy | <0.25% |
| IP Rating | IP65, NEMA 12 / NEMA 4X (3216 Only) |
| Display Type | Main: 4 digits Lower: 5 character starburst (3216/08/04) 9 character starburst (32h8) |
| Control Types | On/Off, PID, VP |
| Alarm Types | Dev, Event, Heater fail, Hi, Lo, Sensor Break |
| Supply Voltage | 24V dc/ac, 85-264V ac |
| SP Programmer | 4 Ramp + 4 Dwell |
| Real Time Clock | – |
| Safety-approvals | EN14597 TR |
| Special Features | Recipes, Text Messaging |
| Analogue IP/OP In | 2 |
| Analogue IP/OP Out | 3 |
| Digital IP/OP In | 3 |
| Digital IP/OP Out | 4 |
| Digital Comms | Modbus |
| Maths Equation | None |
| Combinational Logic | None |
| Timers/Counters/Totals | None |
| PC Configuration | Wizard |
