NM01SS62622

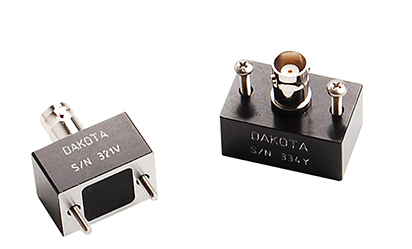

The Dakota NDT Standard Shear Wave Transducer (SS) is a reliable and versatile ultrasonic transducer designed for a wide range of angle beam inspection applications. Featuring a .625” x .625” element size and a center frequency of 2.25 MHz, this transducer offers an excellent balance of sensitivity and penetration for effective flaw detection in various materials and weld configurations.

Specifically engineered to generate and receive shear waves, this transducer is highly effective at detecting flaws oriented parallel to the sound beam, such as sidewall lack of fusion in welds, as well as for characterizing different types of internal imperfections. The 2.25 MHz frequency provides a good compromise between penetration depth and the ability to detect smaller discontinuities.

The .625” x .625” element size offers a well-defined sound beam, contributing to accurate and localized examinations while maintaining a practical contact area for reliable coupling with angle beam wedges. This standard shear wave transducer is built to the high-quality standards of Dakota NDT, ensuring the durability and consistent performance you need for critical non-destructive testing.

Key Selling Points:

• Standard Shear Wave Design: Specifically engineered for effective angle beam inspections.

• Versatile 2.25 MHz Frequency: Provides a balance of penetration and sensitivity for various materials and flaw sizes.

• Optimized .625” x .625” Element: Offers a well-defined sound beam for accurate detection.

• Reliable Dakota NDT Quality: Ensures durability and consistent performance.

• Wide Range of Applications: Suitable for weld inspection, crack detection, and material characterization.

Benefits:

• Effective Detection of Orientation-Specific Flaws: Shear waves are ideal for identifying flaws parallel to the sound beam.

• Versatile Application Range: Suitable for a broad spectrum of materials and thicknesses.

• Accurate and Localized Examinations: The defined sound beam enhances flaw characterization.

• Reliable and Consistent Performance: Backed by Dakota NDT's reputation for quality.

• Easy Integration: Compatible with a wide range of ultrasonic flaw detection instruments when used with appropriate angle beam wedges.

Applications:

• Comprehensive weld integrity assessments.

• Detecting transverse and other orientation-specific flaws.

• General-purpose shear wave inspections on various materials.

• Crack detection and sizing.

• Bond evaluation.

• Material characterization across numerous industries.

The Dakota NDT Standard Shear Wave Transducer (SS), .625” x .625”, 2.25 MHz is a reliable and versatile tool for NDT professionals performing angle beam inspections, providing the necessary sensitivity and performance for accurate and effective flaw detection across a wide range of applications. When paired with appropriate angle beam wedges, it forms a crucial part of a comprehensive ultrasonic testing solution.
