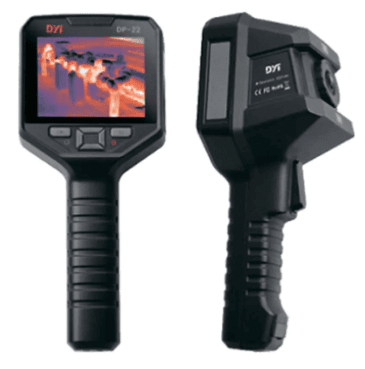

Dianyang DP-22 Handheld Thermal Imaging Camera
320 × 240 Thermal Resolution | -20°C to 450°C | 70 mK Thermal Sensitivity | Wi-Fi | Picture-in-Picture
NOMO SKU: NM01DP22
A professional handheld thermal imaging camera designed for industrial inspections, predictive maintenance and diagnostic applications, combining 320 × 240 infrared resolution, 70 mK thermal sensitivity, visible-light imaging, image fusion, Wi-Fi connectivity and advanced temperature analysis tools.

| 320 × 240 Thermal resolution | -20° to 450°C Temperature range | 70 mK Thermal sensitivity | Wi-Fi Wireless transfer |
Overview
The Dianyang DP-22 Handheld Thermal Imaging Camera is designed for professional temperature inspection, preventive maintenance, fault diagnosis and industrial troubleshooting.
Its 320 × 240 infrared detector provides 76,800 thermal measurement pixels, allowing inspectors to identify temperature differences and abnormal thermal patterns across machinery, electrical systems, HVAC equipment, structures and other assets.
A thermal sensitivity of 70 mK allows the camera to distinguish relatively small temperature differences, while a measurement range reaching 450°C supports a broad range of industrial inspection applications.
The DP-22 combines infrared imaging with a 640 × 480 visible-light camera and supports thermal, visible, outline fusion, overlay fusion and Picture-in-Picture (PIP) display modes.
Integrated Wi-Fi, USB Type-C connectivity and Dianyang analysis software simplify image transfer, post-inspection analysis and professional report generation.
Key Features
![]() | 320 × 240 infrared resolutionThe DP-22 provides 76,800 thermal pixels for detailed temperature visualization, helping inspectors identify abnormal heating, cooling and temperature distribution across inspected equipment and structures. |
Extended temperature measurementThe DP-22 is configured for temperature inspection from low-temperature conditions up to approximately 450°C, supporting applications ranging from HVAC diagnostics to electrical and mechanical equipment inspection. | Temperature Range -20°C to 450°C |
| Thermal Sensitivity 70 mK NETD @ 25°C | Detect subtle thermal differencesHigh thermal sensitivity helps reveal relatively small temperature variations that can indicate developing electrical, mechanical, insulation or thermal-management problems. |
![]() | Thermal and visible-light imagingThe infrared detector works together with a 640 × 480 visible-light camera to provide additional scene detail during inspection. Operators can select thermal imaging, visible light, Picture-in-Picture, outline fusion and overlay fusion according to the inspection requirement. |
Picture-in-Picture inspectionPIP superimposes thermal information over the visible-light image, helping inspectors quickly associate temperature anomalies with the physical component being inspected. | Imaging Modes Thermal + Visible + PIP + Fusion |
| Display 3.5" 320 × 240 color display | Clear handheld viewingThe integrated 3.5-inch full-color display provides direct access to thermal images, temperature values, menus, measurement tools and color palettes. |
Wi-Fi and USB Type-C connectivityImages can be transferred to compatible computers and Android devices using Wi-Fi or USB, simplifying post-inspection analysis, documentation and reporting. | Connectivity Wi-Fi + USB-C |
![]() | Portable industrial inspection packageCompact dimensions, rechargeable battery operation and IP54 protection make the DP-22 suitable for routine field inspections and maintenance work. |
Advanced Inspection & Analysis Tools
Hot, cold and center-point tracking
The camera can automatically display center-point temperature and track the hottest and coldest locations within the thermal image.
Zone temperature measurement
Regional measurement allows the inspector to isolate a selected area and monitor thermal behavior without unrelated hot or cold points elsewhere in the scene affecting the analysis.
High / low temperature alarms
Adjustable temperature thresholds can alert the operator when inspected objects exceed defined high or low temperature limits.
Professional analysis software
Dianyang software supports full-pixel temperature analysis, temperature filtering, multiple measurement shapes and customizable inspection reports using saved thermal data.
Specifications
| General | |
| Manufacturer | Shenzhen Dianyang Technology Co., Ltd. |
|---|---|
| Model | DP-22 |
| NOMO SKU | NM01DP22 |
| Product Type | Handheld infrared thermal imaging camera |
| Infrared Thermal Imaging | |
| Infrared Resolution | 320 × 240 pixels |
| Spectral Range | 8–14 µm |
| Frame Rate | 9 Hz |
| Thermal Sensitivity / NETD | 70 mK @ 25°C |
| Field of View | 56° horizontal × 42° vertical |
| Lens | 4 mm |
| Temperature Range | -20°C to 450°C |
| Measurement Accuracy | ±2°C or ±2% |
| Measurement Modes | Center point, hottest point, coldest point and zone measurement |
| Visible Camera & Display | |
| Visible Camera Resolution | 640 × 480 pixels |
| Visible Camera Frame Rate | 25 Hz |
| LED Light | Integrated |
| Display Size | 3.5 in |
| Display Resolution | 320 × 240 |
| Image Modes | Thermal, visible, Picture-in-Picture, outline fusion and overlay fusion |
| Color Palettes | Tyrian, White Hot, Black Hot, Iron, Rainbow, Glory, Hottest and Coldest |
| Storage & Connectivity | |
| Internal Storage | Approx. 6.6 GB available |
| Image Capacity | More than 20,000 images |
| File Format | TIFF with thermal data support |
| Wireless Connection | Wi-Fi |
| Data / Charging Interface | USB Type-C |
| Power & Environmental | |
| Battery | Built-in rechargeable Li-ion, 5000 mAh |
| Typical Runtime | More than 4 hours at approximately 25°C |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Environmental Protection | IP54 |
| Physical & Shipping | |
| Camera Dimensions | 230 × 100 × 90 mm (9.06 × 3.94 × 3.54 in) |
| Net Weight | 420 g (0.93 lb) |
| Package Dimensions | 270 × 150 × 120 mm (10.63 × 5.91 × 4.72 in) |
| Gross Shipping Weight | 970 g (2.14 lb) |
What's Included
| DP-22 Thermal Imaging Camera | 1 |
| USB Type-C Data / Charging Cable | 1 |
| Lanyard | 1 |
| User Manual | 1 |
| Warranty Card | 1 |
Applications
| ✓ Electrical inspection | ✓ Predictive maintenance |
| ✓ Mechanical equipment inspection | ✓ HVAC troubleshooting |
| ✓ Motors and bearings | ✓ Electrical panels and connections |
| ✓ Building diagnostics | ✓ Water and pipeline leakage inspection |
| ✓ Automotive diagnostics | ✓ Equipment temperature troubleshooting |
Downloads
About Dianyang
Shenzhen Dianyang Technology Co., Ltd. specializes in the research, development and manufacture of infrared thermal imaging systems. Its product portfolio includes handheld thermal cameras, thermal imaging analyzers, smartphone thermal cameras, imaging modules and other industrial thermal inspection solutions.
Dianyang thermal imaging products are used across electrical, mechanical, HVAC, automotive, building inspection, manufacturing and other diagnostic applications.
