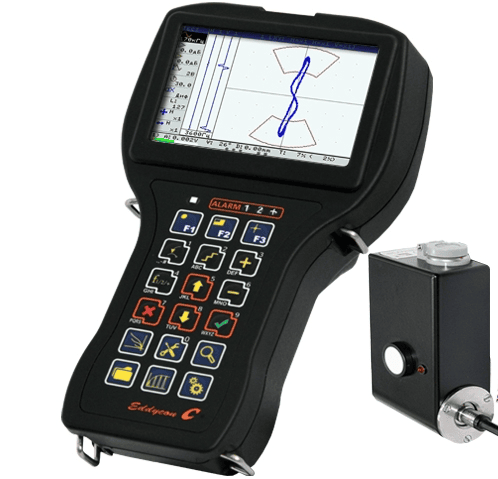

Eddy Current Flow Detector Eddycon C, Ultracom
$6,861.00
Choose Quantity
Product Details
The Eddycon C Eddy Current Flaw Detector by Ultracom is a powerful and versatile instrument for detecting defects in various industrial applications, including aviation, oil and gas, chemical processing, power generation, and machine building. Its advanced eddy current technology allows for non-destructive testing (NDT) of materials to identify cracks, wear, corrosion, and structural faults with precision. Compact and portable, the Eddycon C is designed for easy field use, featuring an intuitive interface, two-way PC connectivity, and versatile testing modes.
Applications:
- Aviation: Inspects aeronautical parts, such as turbine blades, multilayer structures, and wheel disks.
- Oil & Gas: Examines pipelines, turbine blades, and pressure vessels.
- Chemical Processing: Inspects tanks and industrial pipelines.
- Power Generation: Tests steam generator pipes, collectors, and turbine blades.
- Machine Building: Used for rods, wires, sheet metals, and forming rolls.
Key Features:
- Dual Frequency Mode: Supports operation in two frequencies for detailed defect detection.
- Enhanced Display: High-contrast color TFT display with day/night modes for different lighting conditions.
- Data Storage: Stores numerous test setups and results with easy export via USB.
- Battery Life: Long-lasting removable battery supports up to 8 hours of continuous operation.
- Signal Processing: Includes multiple digital filters (Lowpass, Highpass, Bandpass, Differential, Averaging) to reduce noise and interference.
- Defect Measurement: Detects defects with a minimum depth of 0.1 mm and width of 0.002 mm.
Distinctive Features:
- High-Resolution Alarm System: Visual and sound alarm (4 three-color LEDs and audible alert).
- Autozap Function: Adjustable screen clearing interval for faster processing.
- Temperature Probe & Balancing Button: For stable performance in varying temperatures.
- Compact & Lightweight: Weighs only 0.9 kg with dimensions of 230 x 135 x 98 mm, enhancing portability.
Technical Specifications:
- Battery: 12V rechargeable battery with a capacity of 4500 mAh.
- Connectivity: USB interface for data transfer and setup configuration.
- Operating Temperature: -4° to 122°F (-20° to 50°C)
- Supported Probes: Compatible with differential, absolute, and rotary scanner probes.
Capabilities:
- User-Friendly Interface: Multi-language support with customizable settings.
- Efficient Calibration: Quick calibration on standard calibration blocks, saving time in the field.
- Durable Design: Average operational life of at least 10 years, ensuring long-term performance.
