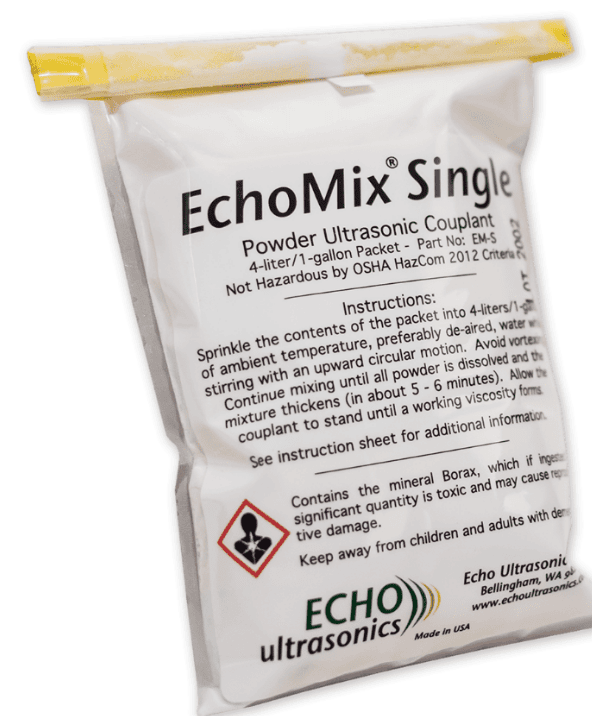

EchoMix® Powder Couplant - 1 Gal (4 Liter) Packet, Single Part - ECHO Ultrasonics SKU: EM-S-1GA
Choose Quantity
EchoMix® Powder Couplant | Single-Part Ultrasonic Couplant
The High-Performance, Low-Logistics Solution for Field UT
EchoMix® is a premium, single-part powdered couplant designed to be mixed with water at the job site. Engineered by ECHO Ultrasonics, this powder transforms into a clear, high-viscosity gel that provides exceptional acoustic transmission for flaw detection and thickness gauging. By shipping only the essential chemical components, EchoMix® eliminates the high cost of transporting water, making it the most economical choice for international projects and remote field inspections.
Key Performance Features
Superior Acoustic Impedance: Formulated to provide a strong signal-to-noise ratio, ensuring clear back-wall echoes and precise flaw characterization.
Rapid Mixing Formula: The single-part powder dissolves quickly in water (warm or cold) without the clumping associated with traditional starch-based powders.
Advanced Corrosion Inhibition: Contains a robust inhibitor package that protects both the test specimen and the UT transducer from oxidation and "flash rusting."
Salt & Mineral Tolerance: Maintains its viscosity even when mixed with hard water or in environments with high mineral content, preventing the gel from "breaking" or thinning out.
Environmentally Safe: Non-toxic, non-irritating, and easy to clean up with a damp cloth or water rinse. It contains no oils or silicones that could interfere with post-inspection painting or coating.
Technical Specifications
| Feature | Specification |
| Yield | 1 Gallon (4 Liters) per Packet |
| Form | Fine White Powder |
| Operating Temp | $0$°C to $65$°C ($32$°F to $150$°F) |
| Viscosity | Medium/High Gel (Variable by water ratio) |
| Halogens/Sulfur | $< 50$ ppm |
| pH | $8.0 \pm 1.0$ |
Industry Standard Compliance
EchoMix® is formulated to meet the requirements of:
ASTM E797 & ASTM E114
ASME B&PV Code, Section V
ISO 2400
NAVSEA 250-1500-1
Physical Dimensions & Logistics
| Measurement | Dimension / Value |
| Packet Dimensions (L x W x H) | 6.5" x 4.0" x 0.5" |
| Box Dimensions (L x W x H) | 8.0" x 6.0" x 4.0" (Case of 10) |
| Packet Weight | 0.2 lbs (Approx. 90g) |
| Shipping Weight (Case of 10) | 2.5 lbs |
Ideal Applications
Remote Pipeline Inspection: Significantly reduces the weight of gear for technicians traveling to remote ROW (Right of Way) locations.
Bridge & Structural Steel: Provides a stable vertical-surface cling for weld inspections on large structures.
Thickness Gauging: Ideal for routine wall-thickness checks on tanks and pressure vessels.
International Export: Drastically lowers shipping and customs fees by removing the weight of liquid water from the shipment.
Mixing Tip: For the best results, add the EchoMix® packet to a 1-gallon container, fill with water, and shake vigorously. Let the mixture sit for 5–10 minutes to allow the polymers to fully hydrate into a smooth, bubble-free gel.
