NM01ADLD100

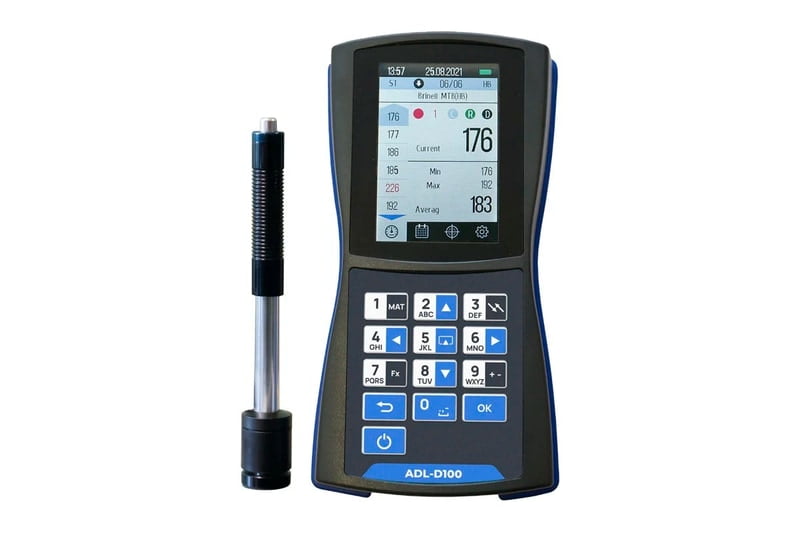

The ADL-D100 Portable Dynamic Hardness Tester by ADELIX is a sophisticated, portable solution designed for rapid and accurate hardness testing on metal products. This dynamic tester is invaluable for professionals involved in quality control, claims resolution, and inspections where traditional hardness testers may lack portability and versatility. The ADL-D100 provides high-accuracy readings comparable to those of stationary testers, making it particularly beneficial when discrepancies arise between workshop or contractor results. This model offers easy adaptability across diverse inspection environments, ensuring reliability and precision.

Key Features:

1. Precision Testing Across Multiple Hardness Scales:

   • The ADL-D100 measures hardness on Rockwell, Brinell, and Vickers scales. It has a primary measurement range of 20–70 HRC, 20–650 HB, and 230–940 HV, providing versatility for various industrial applications.
   • Measurement error rates for Rockwell, Brinell, and Vickers scales adhere to ISO and ASTM standards, ensuring accuracy under recommended conditions.

2. Adaptability with Custom Calibration:

   • Designed to be calibrated across extended ranges with certified reference blocks, the ADL-D100 features an advanced averaging mode and statistical analysis capabilities. Users can calibrate multiple blocks to expand device capability.

3. Robust Build and Display:

   • Encased in an impact-resistant plastic housing with a rubber bumper, the ADL-D100 is resilient enough for workshop conditions. It has a 3.5” LCD TFT color display with an intuitive interface, making it easy to read and interpret results on-site.
   • The device offers customizable settings for different languages, including Ukrainian, English, and Russian.

4. Efficient Data Handling:

   • Equipped with 128MB of memory, it can store over 1,000 measurements. Data can be transferred to a PC via USB for advanced processing and report generation.
   • It also features graphical capabilities for visual data representation, ensuring clarity when assessing hardness profiles.

5. Extended Battery Life:

   • The ADL-D100 operates on a rechargeable 3.7V, 3000mAh Li-Pol battery, offering up to 9 hours of continuous use. This makes it ideal for extended inspections in remote locations or intensive on-site testing requirements.

Technical Specifications:

• Measurement Range:
  • Rockwell: 20–70 HRC
  • Brinell: 20–650 HB
  • Vickers: 230–940 HV
• Measurement Error:
  • Rockwell: ±0.2 HRC
  • Brinell (90–450 HB): ±3 HB
  • Vickers (240–940 HV): ±3 HV
• Roughness Recommendations:
  • Dynamic sensor type “D”: 3.2 Ra
  • Dynamic sensor type “G”: 7.2 Ra
• Display: 3.5" LCD TFT (320×480 px)
• Memory Capacity: 128MB (stores over 1,000 measurements)
• Operating Temperature: -20°C to +45°C
• Dimensions: 185x98x42 mm
• Weight: 0.35 kg

Advantages:

• Customized Calibration: Allows programming of numerous custom calibrations, adapting to enterprise-specific materials.
• Intelligent Data Management: Acts as a mini-database, storing hardness scales and calibration data for a variety of materials.
• Modern Design: Built on an advanced electronic platform for enhanced data processing capabilities.
• Reliability: Quality sensor and construction ensure durability and accuracy in challenging environments.
• High-Resolution Measurements: Enhanced precision makes it possible to achieve stationary tester-level results in a portable format.

Additional Equipment:

• Specialized positioning tips for use on irregular surfaces.
• Availability of “G” type sensors for rough surfaces and lightweight “E” type sensors for specialized applications.
• Calibration and hardness blocks across Rockwell, Brinell, and Vickers scales are also available, as well as certified reference blocks.
• Optional grinder with consumable accessories for surface preparation.

Contents of Delivery:

• Measuring block, Type D sensor, USB cable for charging/PC connection, and calibration certificate.
• User manual, device passport, additional hardness scales, and charger, all stored within a convenient carrying case.
