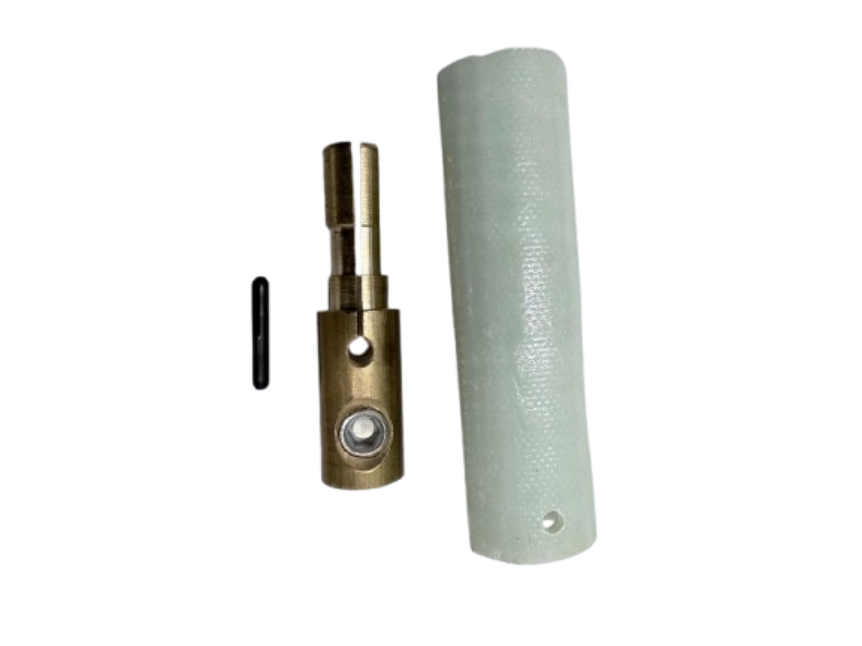

60 A Cam-Lock Male Connector Set with High-Temperature Sleeves
Male Cam-Lock Connection Set for Compatible Industrial Inspection EquipmentSKU: R1601024
Overview
The 60 A Cam-Lock Male Connector Set, SKU R1601024, is designed for removable electrical connections in compatible industrial inspection and magnetic particle testing equipment. Its male Cam-Lock configuration connects with corresponding female receptacles to support secure current transfer between cables, power units, magnetizing equipment, and inspection accessories.
Rated for applications requiring connections up to 60 A, the set provides a practical solution for equipment maintenance, connector replacement, cable fabrication, and inspection-system assembly. The included high-temperature sleeves provide insulation and additional protection around the connector assemblies during industrial use.
This connector set is suitable for field, shop, fabrication, maintenance, and QA/QC environments where dependable and serviceable electrical connections are required. Connector size, polarity, cable capacity, and equipment compatibility should be confirmed before installation.
What's Included
| Item | Details |
|---|---|
| Connector Set | 60 A male Cam-Lock connector set |
| Connector Type | Male Cam-Lock |
| Current Rating | 60 A |
| Protective Components | High-temperature insulating sleeves |
| Application | Inspection-equipment and cable connection |
| Installation Type | Cable-mounted connector assembly |
| SKU | R1601024 |
Note: The exact number of connectors and any additional installation hardware should be confirmed before ordering.
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 2.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 2.0 in |
| Weight | 1.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Industrial electrical connector set |
| Connector Style | Cam-Lock |
| Connector Gender | Male |
| Current Rating | 60 A |
| Sleeve Type | High-temperature protective sleeve |
| Connection Method | Insert-and-lock Cam-Lock connection |
| Installation | Compatible electrical cable assembly |
| Primary Use | Inspection-equipment and accessory connection |
| Equipment Compatibility | Systems using compatible female Cam-Lock receptacles |
| Intended Environment | Field, shop, fabrication, maintenance, and QA/QC |
| SKU | R1601024 |
Performance Features
60 A Current Rating
Designed for compatible industrial equipment and cable assemblies requiring an electrical connection rated up to 60 A.
Male Cam-Lock Configuration
Connects with a corresponding female Cam-Lock receptacle using a secure insert-and-lock connection method.
High-Temperature Sleeves
The included protective sleeves provide insulation around the connector assemblies and help protect the cable termination area during industrial use.
Serviceable Cable Connection
Suitable for replacing worn connectors or assembling compatible inspection-equipment cables.
Removable Equipment Connection
Supports repeated connection and disconnection during equipment setup, transportation, inspection, and maintenance.
User-Friendly Design
Cam-Lock format supports fast connection and disconnection
Male configuration fits compatible female receptacles
High-temperature sleeves help insulate the connector assemblies
Compact size supports portable inspection equipment
Suitable for replacement and cable-fabrication applications
Easy to integrate into compatible industrial systems
Reusable design supports routine equipment setup and maintenance
Built for Industrial Environments
Designed for professional industrial electrical connections
Suitable for field, shop, fabrication, maintenance, and QA/QC workflows
Protective sleeves support demanding operating conditions
Practical for inspection-equipment cable replacement and repair
Supports repeated equipment setup and disassembly
Suitable for compatible magnetic particle inspection systems
Intended for installation by qualified personnel
Connectors should be inspected regularly for wear, contamination, heat damage, and loose cable terminations
Compatibility
Compatible with:
Female Cam-Lock receptacles of the corresponding size and rating
Compatible 60 A electrical cable assemblies
Magnetic particle inspection equipment using Cam-Lock connections
Portable magnetizing units
Inspection-equipment current leads
Compatible power-supply and accessory connections
Field and shop NDT equipment configurations
Replacement, maintenance, and custom cable assemblies
Cable gauge, connector dimensions, polarity, current rating, and equipment compatibility should be confirmed before installation.
Ideal Applications
Magnetic particle inspection equipment
Portable magnetizing units
Inspection-equipment cable assemblies
Replacement electrical connectors
Field equipment maintenance
Cable repair and refurbishment
Fabrication and manufacturing equipment
NDT equipment service departments
Inspection-system setup
QA/QC equipment support
Industrial electrical accessory inventory
Custom inspection-cable fabrication
About the Product
The R1601024 60 A Cam-Lock Male Connector Set provides a practical replacement or cable-assembly solution for compatible industrial inspection equipment. Its male Cam-Lock configuration and high-temperature protective sleeves support secure, insulated, and removable connections in field, shop, maintenance, and NDT inspection environments.
