PH Tool — AWS Resolution Block
1018 Steel Ultrasonic Resolution Reference Block with Metric and Inch Dimensions SKU: AWS.CSOverview

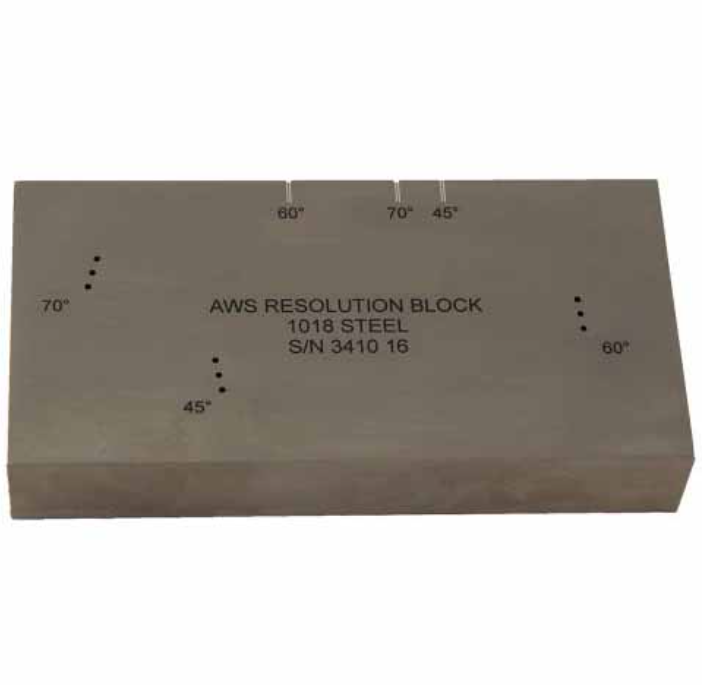

The PH Tool AWS Resolution Block is a precision ultrasonic reference block designed for checking resolution, calibration, and performance verification of ultrasonic testing equipment. Manufactured from 1018 steel, this block provides a dependable reference standard for technicians performing routine UT setup and instrument checks.
This AWS-style resolution block supports ultrasonic inspection workflows where accurate equipment verification and repeatable response are required. With metric and inch dimensional references, it is practical for inspection programs that operate across both measurement systems.
Built for professional NDT environments, the AWS Resolution Block is suitable for field, shop, and laboratory use, helping inspectors verify ultrasonic system performance before and during weld inspection, material evaluation, and quality control procedures.
What's Included
| Item | Details |
|---|---|
| Calibration Block | AWS Resolution Block |
| Material | 1018 steel |
| Measurement System | Metric and inches |
| Application | Ultrasonic resolution and calibration verification |
| Manufacturer | PH Tool |
| SKU | AWS.CS |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 10.0 in |
| Width | 8.0 in |
| Height | 4.0 in |
| Dimensions (L × W × H) | 10.0 × 8.0 × 4.0 in |
| Weight | 6.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic resolution reference block |
| Block Type | AWS Resolution Block |
| Material | 1018 steel |
| Measurement Markings | Metric and inches |
| Inspection Method | Ultrasonic testing |
| Application | Resolution verification, calibration checks, and UT setup |
| Use Environment | Field, shop, and laboratory |
| Manufacturer | PH Tool |
| SKU | AWS.CS |
Performance Features
AWS Resolution Reference Design
Supports ultrasonic resolution checks and instrument performance verification for professional UT workflows.
1018 Steel Construction
Manufactured from 1018 steel for use as a reliable steel reference standard during ultrasonic testing setup.
Metric and Inch References
Provides compatibility with inspection programs that require both metric and imperial measurement systems.
Calibration Verification Support
Helps confirm ultrasonic system response, resolution, and setup consistency before inspection.
User-Friendly Design
Practical reference block format for routine UT setup
Metric and inch dimensions support flexible inspection workflows
Suitable for field, shop, and laboratory verification
Designed for repeated ultrasonic calibration use
Useful for weld inspection and material evaluation programs
Built for Industrial Environments
Durable 1018 steel construction for professional NDT use
Suitable for fabrication, maintenance, and QA/QC programs
Built for repeated handling in field and shop environments
Supports consistent ultrasonic inspection preparation
Practical for industrial calibration and verification workflows
Compatibility
Compatible with:
Ultrasonic flaw detectors
Ultrasonic thickness gauges with flaw detection capability
AWS-related ultrasonic inspection workflows
Weld inspection calibration procedures
Metric and inch measurement programs
NDT field and laboratory calibration setups
Ideal Applications
Ultrasonic resolution verification
UT instrument setup and calibration checks
Weld inspection support
Flaw detector performance verification
Field and shop NDT inspection programs
QA/QC inspection procedures
Laboratory reference standard use
Training and technician qualification support
About PH Tool
PH Tool manufactures precision reference standards, calibration blocks, and NDT test blocks for ultrasonic, magnetic particle, liquid penetrant, and visual inspection applications. Their products are widely used by NDT professionals who require dependable reference standards for calibration, verification, and inspection quality control.
