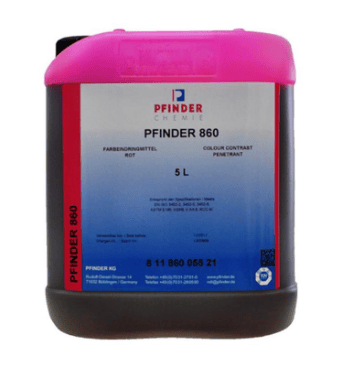

PFINDER 860 is a high-quality, hydrocarbon-free, water-washable color contrast penetrant developed for crack detection in various industrial applications. This product is eco-friendly and easily biodegradable, meeting ISO 9888 / Zahn-WellensEMPA test standards (OECD 302 B). Designed for direct water washability, PFINDER 860 is easy to apply and leaves minimal residual background even on rough surfaces, enhancing clarity and accuracy during inspection.
This penetrant is suitable for use across a broad temperature range, from –20 °C to +100 °C, making it versatile for diverse work environments. It is compliant with EN ISO 3452-5 and EN ISO 3452-6, as well as DIN EN ISO 3452-1 standards, ensuring effective and reliable penetrant testing.
Key Specifications:
- Product Type: Type II (Visible Penetrant), Sensitivity Level 2
- Container Size: 5 liters
- Temperature Range: –20 °C to +100 °C
- Compliance Standards:
- EN ISO 3452-5, EN ISO 3452-6, DIN EN ISO 3452-1
- Biodegradability: ISO 9888 / OECD 302 B
- Application: Direct water wash (Type II, Method A + C, Forms a, b, c, e, f)
Application Instructions
For optimal performance, the penetrant's effectiveness should be validated routinely with test blocks or reference pieces, such as Test Block 2, per EN ISO 3452-3. Adjust penetration time based on ambient temperature:
- +100 °C to +50 °C: Penetration time up to 10 minutes.
- +50 °C to +10 °C: Standard penetration time.
- +10 °C to 0 °C: Double standard penetration time.
- 0 °C to –10 °C: Triple standard penetration time.
- –10 °C to –20 °C: Quadruple standard penetration time.
