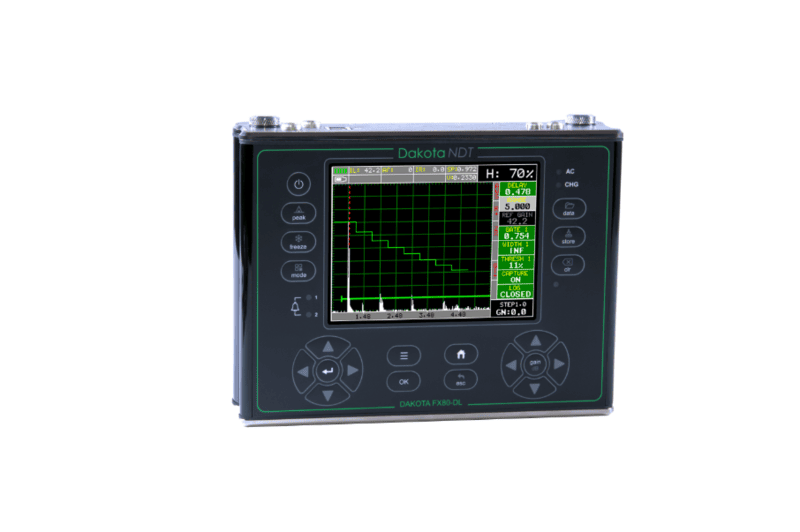

The Dakota NDT FX80-DL UT Flaw Detector / Thickness Gauge (formerly DFX-8) is a versatile and robust handheld instrument designed for both advanced ultrasonic flaw detection and precise thickness measurement. This powerful tool is ideal for non-destructive testing professionals across a wide range of industries and applications.

Combining two essential functions in one portable unit, the FX80-DL allows users to accurately locate, size, and characterize flaws in various materials and welds, while also providing precise thickness readings, with or without coatings. This dual capability streamlines inspections and reduces the need for multiple instruments.

The FX80-DL features a broad frequency bandwidth (1.8 - 19 MHz) and also incorporates four narrow band filters at 1MHz, 2MHz, 5MHz, and 10MHz. These selectable narrow bands enhance the signal-to-noise ratio for specific applications, optimizing transducer performance for diverse materials and inspection requirements. The instrument offers multiple measurement modes for both flaw detection (Pulse-Echo) and thickness gauging (including Pulse-Echo, Echo-Echo, Coating Thickness).

Equipped with a large internal memory, the FX80-DL enables extensive storage of inspection data and A-Scan images, facilitating comprehensive data logging and analysis. The included DakView3 PC software and USB cable allow for seamless data transfer to a computer for detailed reporting and further evaluation.

This comprehensive package provides everything necessary for immediate operation:

• FX80-DL UT Flaw Detector / Thickness Gauge

• Detailed Operating Manuals: Providing comprehensive guidance for instrument use.

• 4 oz Ultrasonic Couplant: Essential for optimal ultrasonic signal transmission.

• DakView3 PC Software & USB Cable: Enabling advanced data analysis, reporting, and connectivity.

• Calibration Certificate: Verifying the instrument's accuracy and traceability.

• Rugged Carrying Case: For secure storage and transportation of the instrument and accessories.

• Lemo 00 Connectors: Ensuring compatibility with a wide range of transducers.

Key Selling Points:

• Versatile Two-in-One Functionality: Combines advanced flaw detection and precise thickness gauging in a single unit.

• Broad and Narrow Band Frequencies: Offers optimized performance across a wide range of materials and applications.

• Comprehensive Measurement Modes: Adaptable for diverse inspection requirements.

• Large Data Storage Capacity: Facilitates extensive data logging and analysis.

• Powerful DakView3 PC Software Included: Enables advanced data management and reporting.

• Complete Turnkey Solution: Includes all essential accessories for immediate deployment.

• Industry-Standard Lemo 00 Connectors: Ensures compatibility with a wide variety of transducers.

Benefits:

• Increased Inspection Efficiency: Perform multiple inspection tasks with a single, powerful instrument.

• Enhanced Accuracy and Reliability: Advanced features and frequency control ensure precise measurements.

• Improved Data Management and Reporting: Streamline your workflow with included PC software.

• Suitable for a Wide Range of Applications: Adaptable to diverse industries and materials.

• Durable and Portable Design: Built for reliable performance in various inspection environments.

Applications:

• Critical weld inspection and quality control.

• Comprehensive corrosion mapping and assessment.

• Precise thickness measurement on various materials (metals, plastics, composites).

• Detailed flaw detection in castings, forgings, and machined components.

• Aerospace and automotive component inspection.

• Pipeline and structural integrity assessment.

The Dakota NDT FX80-DL UT Flaw Detector / Thickness Gauge is the ideal choice for NDT professionals seeking a powerful, versatile, and comprehensive instrument that delivers both advanced flaw detection and precise thickness measurement capabilities with enhanced frequency control, all in a single, robust, and user-friendly package.

User Manual
