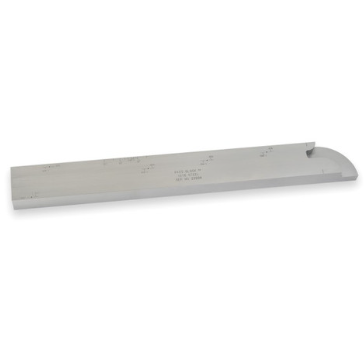

PH Tool — PACS® Phased Array Calibration Standard (AWS Version)
Ultrasonic Calibration Block with 0.060" Holes for Phased Array & AWS Applications SKU: PACS.AWS.ICSOverview
The PH Tool PACS® (Phased Array Calibration Standard) Block, AWS Version, is a precision-engineered ultrasonic calibration standard designed for phased array ultrasonic testing (PAUT) and AWS-based inspection procedures. Manufactured from 1018 steel and featuring 0.060" diameter side-drilled holes, this block enables accurate system calibration, sensitivity adjustment, and performance verification.
Developed to meet AWS inspection requirements, the PACS® block allows technicians to evaluate beam focusing, steering, and resolution capabilities of phased array systems. Its standardized geometry supports consistent and repeatable calibration results across various inspection setups.
Supplied in inch configuration and delivered with a protective hardwood case, this calibration block is widely used in weld inspection, training, and advanced ultrasonic applications in industries such as oil & gas, fabrication, and construction.
What's Included
| Item | Details |
|---|---|
| Calibration Block | PACS® AWS version, 0.060" holes, 1018 steel |
| Carrying Case | Hardwood storage case |
| Documentation | Certification (if included) |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 10.0 in |
| Width | 8.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 10.0 × 8.0 × 3.0 in |
| Weight | 4.0 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Phased array calibration block |
| Model | PACS® AWS Version |
| Standard | AWS |
| Material | 1018 steel |
| Reflectors | 0.060" diameter holes |
| Units | Inch |
| Application | PAUT calibration & verification |
Performance Features
AWS-Compliant Design
Supports calibration procedures aligned with AWS inspection standards.
Phased Array Optimization
Enables evaluation of beam steering, focusing, and resolution.
Precision Reflectors
0.060" holes provide consistent and reliable signal references.
Repeatable Calibration Results
Ensures accurate system setup and verification.
User-Friendly Design
- Clearly defined reflector geometry
- Supplied in protective hardwood case
- Easy integration into calibration routines
- Suitable for lab and field use
Built for Industrial Environments
- Precision-machined for durability and accuracy
- Reliable performance in demanding applications
- Suitable for repeated calibration use
- Designed for professional NDT workflows
Compatibility
Compatible with:
- Phased array ultrasonic testing (PAUT) systems
- Ultrasonic flaw detectors
- AWS inspection procedures
- Calibration and training programs
Ideal Applications
- Phased array system calibration
- Weld inspection and qualification
- Beam characterization and validation
- Oil & gas and pipeline inspection
- Fabrication and structural inspection
- NDT training and certification
