NM01FS5000

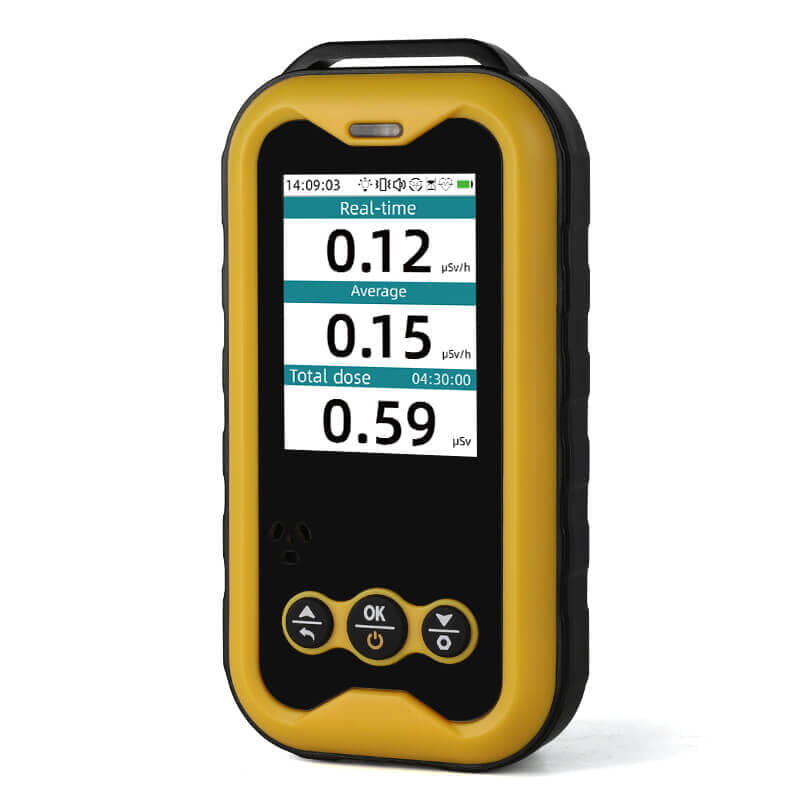

The FS-5000 Nuclear Radiation Detector by Bosean is a versatile, high-sensitivity radiation detection instrument designed to monitor X-ray, γ-ray, and β-ray radiation. This compact device utilizes a glass-type Geiger-Müller (GM) tube for precise, real-time radiation measurement, featuring a 2.4-inch TFT LCD screen for clear, user-friendly operation. Ideal for industrial and personal safety, this detector includes multiple alert options—sound, light, and vibration—and adjustable alarm thresholds to suit various radiation detection environments.

Equipped with a 32-bit low-power microprocessor, the FS-5000 offers an extended battery life in endurance mode while maintaining data reliability with built-in memory to store cumulative dose, dose rate curves, alarm records, and threshold settings. Designed for diverse applications such as health and safety, environmental monitoring, laboratory analysis, and nuclear facility operations, this detector provides dependable radiation management and analysis capabilities via Type-C interface connectivity.

Key Features

1. Real-Time Radiation Monitoring: Tracks real-time dose rate, mean dose rate, and count rate while recording cumulative dose.

2. Adjustable Alarms: Select dose rate and dose alarm thresholds, and choose from sound, flashing light, and vibration alerts.

3. Built-In Memory: Stores cumulative dose, dose rate curve, alarm records, and threshold settings, with data retained even after shutdown.

4. User-Friendly Interface: 2.4-inch TFT LCD screen with multilingual support and adjustable backlight for easy readability.

5. Extended Battery Life: Low-power consumption with long endurance mode (≥30 days).

6. Data Connectivity: Type-C interface for charging and PC connectivity to manage personal radiation data.

Technical Specifications

• Display: 2.4-inch TFT LCD screen

• Dose Rate Measurement Range: 0.01 µSv/h to 50 mSv/h

• Dose Measurement Range: 0 µSv to 1000 Sv

• Sensitivity: >1 CPS/µSv/h

• Energy Response: 48 keV to 1.5 MeV

• Accuracy: <10% (at 1 mSv/h)

• Power Supply: 3.7V rechargeable lithium battery (1800 mAh)

• Power Consumption: <15 mW (≥30 days in endurance mode)

• Operating Temperature: -10℃ to +45℃

• Dimensions: 127 x 65 x 27 mm

• Weight: 160 g (with battery)

Applications

The FS-5000 is suitable for a wide range of environments and industries, including:

• Health and Safety Monitoring

• Environmental Radiation Detection

• Radiation Laboratory Analysis

• Nuclear Facilities

• Quality Inspection for Food, Building Materials, and Petrochemicals

Brochure
