NM01FS1
Choose Quantity

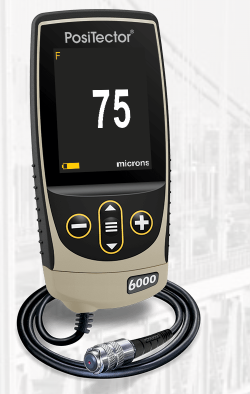

DeFelsko PosiTector 6000 FS1 Ferrous Coating Thickness Gage (Standard Body, Cabled FS Probe)
SKU: FS1
A rugged coating thickness gage with a waterproof stainless steel cabled probe for measuring non-magnetic coatings on steel and iron from 0 to 60 mils, ideal for hard-to-reach areas and underwater use.
| 0–60 mils0 to 1500 µm range | CabledWaterproof FS probe | 60+Readings per minute | 2 yearsBody and probe warranty |
The DeFelsko PosiTector 6000 FS1 is a rugged, fully electronic coating thickness gage that uses the magnetic induction principle to measure non-magnetic coatings on steel and iron quickly and accurately. It pairs the PosiTector Standard body with the FS regular cabled probe, a constant-pressure stainless steel probe that is hermetically sealed and totally waterproof.
The cable lets you reach into tight spots, measure at arm's length and even take readings underwater, while the gage body stays dry and readable. It's ready to measure right out of the box for most applications, and backed by a two-year warranty on body and probe.
Key Features
 | Waterproof cabled probeThe constant-pressure stainless steel FS probe is hermetically sealed and totally waterproof, making it ideal for underwater use and wet environments. Its cable gives flexible access to curved surfaces, confined areas and complex part shapes where a built-in probe is hard to position. |
Built for the Field
Made for coatings on steel
Measure paint, powder, plastic, enamel, galvanizing and plating on steel and iron. Take more than 60 readings per minute, or over 90 in FAST mode, with built-in temperature compensation.
Ready to measure, accurate for years
No calibration adjustment is required for most applications, and each gage includes a Long Form Certificate of Calibration traceable to NIST or PTB.
Statistics and memory
The Standard body stores 1,000 readings per probe, and Statistics mode continually displays the average, standard deviation, min/max and number of readings. Readings are accessible over USB like a flash drive, or through PosiSoft software for reports.
Flexible calibration
Choose from 1-point, 2-point, known thickness and average zero adjustment options. Hi-RES mode increases displayed resolution, and RESET instantly restores factory settings.
Rugged, interchangeable platform
The IP65 body is weatherproof, dustproof and water-resistant. Each probe retains its own calibration, so the body accepts any PosiTector 6000, UTG, SPG, DPM and other PosiTector probes.
Specifications
| General | |
| Manufacturer | DeFelsko |
|---|---|
| Model | PosiTector 6000 FS1 (Standard body with FS cabled probe) |
| SKU | FS1 |
| Instrument type | Electronic coating thickness gage, ferrous |
| Warranty | 2 years on gage body and probe |
| Shipping dimensions (estimated) | 305 × 254 × 127 mm (12.0 × 10.0 × 5.0 in) |
| Shipping weight (estimated) | 1.4 kg (3.0 lb) |
| FS Probe | |
| Probe style | Regular separate (cabled), constant-pressure stainless steel, hermetically sealed and waterproof |
| Substrates | Ferrous metals (steel and iron) |
| Measuring principle | Magnetic induction |
| Range | 0 to 60 mils (0 to 1500 µm) |
| Accuracy (imperial) | ±(0.05 mils + 1%) from 0 to 2 mils; ±(0.1 mils + 1%) above 2 mils |
| Accuracy (metric) | ±(1 µm + 1%) from 0 to 50 µm; ±(2 µm + 1%) above 50 µm |
| Gage Body & Data | |
| Speed | 60+ readings per minute; 90+ in FAST mode |
| Calibration options | 1-point, 2-point, known thickness, average zero; RESET |
| Memory | 1,000 readings per probe (Standard body) |
| Connectivity | USB, with PosiSoft USB Drive and PosiSoft software |
| Enclosure | IP65 weatherproof, dustproof and water-resistant |
| Body size and weight | 127 × 66 × 25.4 mm (5.0 × 2.6 × 1.0 in); 137 g (0.3 lb) |
| Power | 3 × AAA batteries; USB power |
| Standards | Conforms to ISO and ASTM standards; Long Form Certificate of Calibration traceable to NIST or PTB |
What's in the Box
- PosiTector Standard gage body
- PosiTector 6000 FS cabled probe
- Precision plastic shims
- Protective rubber holster with belt clip
- Wrist strap
- 3 AAA alkaline batteries
- Nylon carrying case with shoulder strap
- Protective lens shield
- USB cable
- Instructions
- Long Form Certificate of Calibration
Standard DeFelsko package. Contents can vary by package, so contact us to confirm what ships with your order.
Complete your coating inspection kit
Add DeFelsko Certified Coating Thickness Standards to verify accuracy. For aluminum and other non-ferrous metals too, choose the FNS1. For 250,000-reading memory, WiFi, Bluetooth and scan modes, step up to the FS3 Advanced.
Applications
| ✓ Paint and powder coating on steel | ✓ Hot-dip galvanizing |
| ✓ Underwater and wet environments | ✓ Curved surfaces and confined areas |
| ✓ Marine and offshore coatings | ✓ Oil & gas and pipeline coatings |
| ✓ Protective coatings QA/QC | ✓ Corrosion protection verification |
Downloads
| ⬇ Product Literature (PDF) |
About DeFelsko
DeFelsko Corporation is a leading U.S. manufacturer of coating thickness gages and inspection instruments, delivering simple, durable and accurate gages since 1965. Family owned and operated in Northern New York, its facility houses research, development, manufacturing, quality, sales, training and service under one roof.
