NM01X3A003
Choose Quantity
A 5 MHz, 64-element linear phased array probe that runs both sectorial and linear scans, made for thick weld inspection and wide-area mapping.
| 5 MHzFrequency | 64Elements | 0.6 mmElement pitch | 38.4 mmActive aperture |

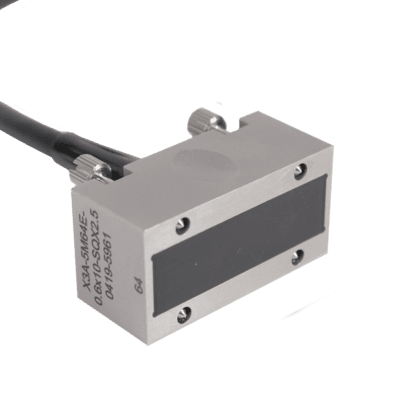

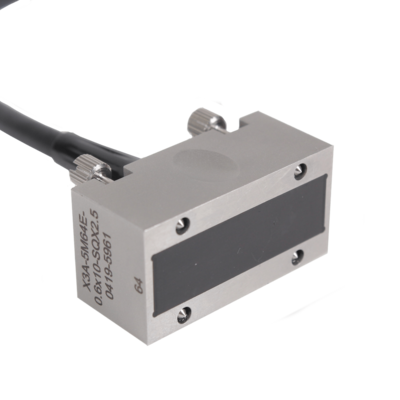

The Sonatest X3A-003 is a 5 MHz, 64-element phased array probe from the X3 series, built to run both sectorial scans (S-scan) and linear electronic scans (L-scan) from a single probe. Its 0.6 mm pitch and 38.4 mm aperture make it well suited to thick weld inspection and wide 0° linear scans.
The probe comes with an integral 2.5 m cable and a Quick I-PEX connector with adapter bracket, compatible with standard I-PEX phased array instruments. A full range of X3 wedges covers shear and longitudinal wave angles, a 0° delay line and irrigated versions.
Key Features
 | Sectorial and linear scan in one probeWith 64 elements, the X3 can sweep a sectorial scan across a weld or step a linear scan along the array without changing probes. One probe covers both weld inspection and 0° mapping work. |
64 elements at 0.6 mm pitchThe fine 0.6 mm pitch and 10 mm elevation give a 38.4 mm active aperture in a compact 45 × 23 × 20 mm housing. This supports wide linear coverage and accurate beam steering. |  |

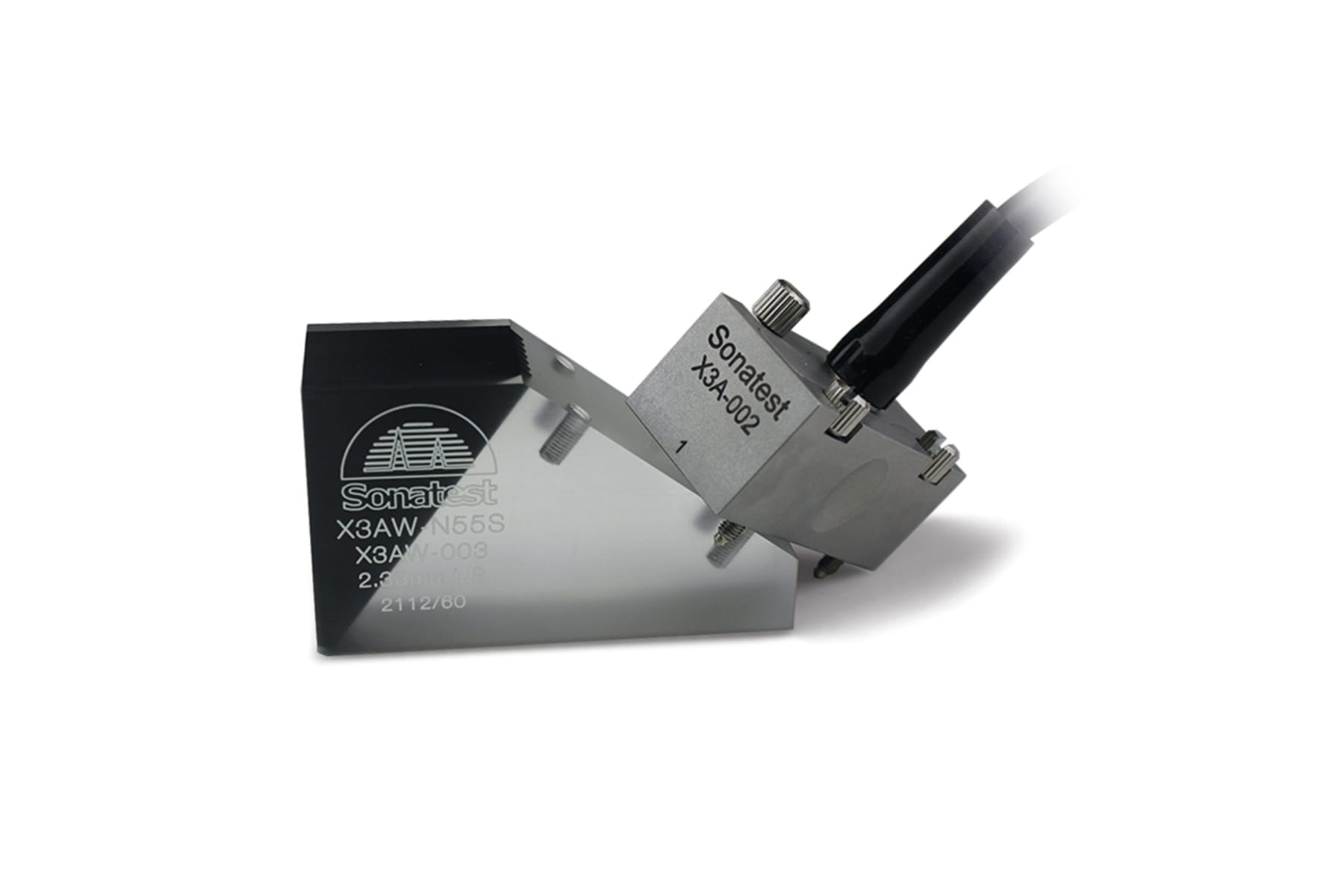

 | A wedge for every inspectionX3 wedges cover 45°, 55° and 60° shear wave, 45° and 60° longitudinal wave, and a 0° delay line. Each comes in an irrigated version, and high-temperature wedge materials are available on consultation. |
Glider wedge for composites and mappingThe X3 Glider pairs the probe with a soft, replaceable rubber wedge that conforms to irregular surfaces. It's built for 0° linear scans on composite parts, delamination checks on aluminium plates, and corrosion, blistering and thickness mapping. |  |
Probe Design
5 MHz for weld inspection
A common frequency for weld work, 5 MHz balances resolution and penetration in steel.
Quick I-PEX connection
The Quick I-PEX (QX) latch connector and adapter bracket fit any standard I-PEX phased array instrument, including Sonatest's veo range.
Integral 2.5 m cable
The cable is built into the probe for a clean, reliable connection. Other cable lengths and an armoured cable are available on request.
Compact housing
At 45 × 23 × 20 mm (1.77 × 0.91 × 0.79 in), the probe keeps the probe-and-wedge assembly small and easy to handle.
Hard-faced option
A hard-faced version is available on request for added wear resistance in demanding contact work.
Specifications
| General | |
| Manufacturer | Sonatest |
|---|---|
| Part number / SKU | X3A-003 |
| Model | X3A-5M64E-0.6x10-SQX2.5 |
| Series | X3, sectorial and linear scan |
| Probe type | Linear phased array |
| Acoustic | |
| Frequency | 5 MHz |
| Number of elements | 64 |
| Element pitch | 0.6 mm (0.024 in) |
| Elevation | 10 mm (0.39 in) |
| Active aperture | 38.4 mm (1.51 in) |
| Mechanical & Connection | |
| External dimensions (L × W × H) | 45 × 23 × 20 mm (1.77 × 0.91 × 0.79 in) |
| Cable | Integral, 2.5 m (8.2 ft) |
| Connector | Quick I-PEX (QX) with adapter bracket |
| Options on request | Other cable lengths, armoured cable, hard-faced version |
| Compatible X3 Wedges | |
| 0° longitudinal, 25 mm delay | X3AW-001 · sweep -20° to 20° |
| 45° shear wave | X3AW-002 · sweep 35° to 60° |
| 55° shear wave | X3AW-003 · sweep 40° to 70° |
| 60° shear wave | X3AW-004 · sweep 45° to 75° |
| 45° longitudinal wave | X3AW-005 · sweep 35° to 65° |
| 60° longitudinal wave | X3AW-006 · sweep 30° to 75° |
| Irrigated (IHC) versions | X3AW-007 to X3AW-012 |
| Glider, 0° rubber wedge | X3AG-001 |
| Wedge materials | Rexolite standard, to 60°C (140°F). Torlon to 260°C (500°F) and Vespel to 300°C (572°F) on consultation. |
What's in the Box
- Sonatest X3A-003 phased array probe with integral 2.5 m cable
- Quick I-PEX (QX) connector with adapter bracket
Contents can vary by package, so contact us to confirm what ships with your order.
Complete your phased array setup
To start inspecting, pair the probe with the X3 wedge that suits your application and a phased array instrument with an I-PEX connection.
Applications
The X3A-003 handles both weld inspection and mapping work, used with compatible phased array instruments, X3 wedges and scanners.
| ✓ Critical welds (butt, T and corner joints) | ✓ Thick weld inspection |
| ✓ Castings | ✓ Flanges |
| ✓ Automotive parts | ✓ Machined parts |
| ✓ Composite inspection | ✓ Corrosion, blistering and thickness mapping |
