SCANRAY® 3643 — Portable Wireless Digital Radiography System
Complete Field Package | SKU: SCANRAY3643
Overview
The SCANRAY® 3643 is the largest and most capable model in the SCANRAY Regular series — a full-format, portable wireless digital radiography (DR) system engineered by DR Systems for high-throughput industrial inspection on the grandest scale. With the largest active detection area in the Regular lineup at 14.1 × 16.9 inches, the 3643 is purpose-built for inspectors who need to cover maximum surface area per exposure — dramatically reducing shot count, accelerating inspection campaigns, and delivering outstanding productivity gains on large-diameter piping, pressure vessels, structural welds, and extended joint inspections.
Despite its large format, the SCANRAY® 3643 retains the same field-proven ruggedness, wireless operation, IP67 protection, and comprehensive ready-to-use package that makes the entire SCANRAY series the trusted choice of NDT professionals worldwide. Everything required to begin performing digital radiographic inspections is included straight out of the box.
What's Included
| Item | Details |
|---|---|
| SCANRAY® 3643 Digital Flat-Panel Detector | Core detection unit |
| Universal Protective Cover | Drop protection up to 2 m (6.6 ft) |
| Detachable Detector Handle | Ergonomic field handling |
| Magnetic Holders | Fast detector positioning on ferrous surfaces |
| Lashing Straps | Secure detector placement on non-magnetic objects |
| Calibration Steel Plate | For calibration and image quality verification |
| 2 Sets of Batteries + Charger | Enables continuous 24/7 inspection capability |
| Ruggedized Laptop | Pre-installed with DR-SOFT® software |
| Ruggedized Tablet | Pre-installed with DR-SOFT® software |
| Tablet Docking Station | With extra battery for extended tablet operation |
| Additional Wi-Fi Module | Extended wireless range for remote operator positioning |
| Heat-Resistant Blanket | Enables inspection of hot objects up to 250°C (482°F) |
| Computer Mouse | For laptop/desktop software operation |
| Wire Set | Connection cables and accessories |

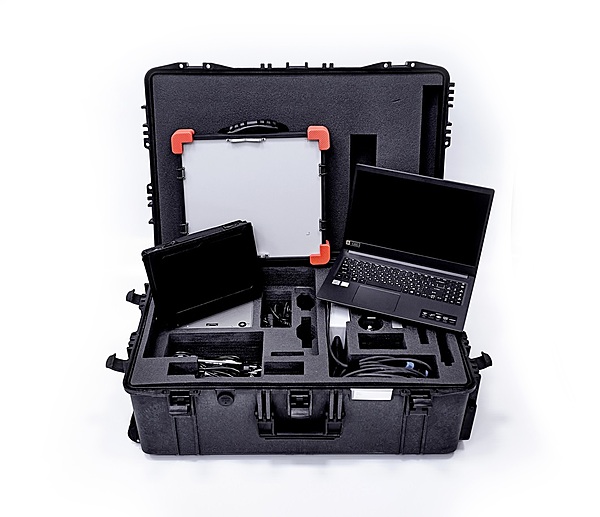

| Transportation Case | Ruggedized case for safe transport of all components |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Metric | Imperial |
|---|---|---|
| Length | 1016 mm | 40.0 in |
| Width | 762 mm | 30.0 in |
| Height | 559 mm | 22.0 in |
| Dimensions (L × W × H) | 1016 × 762 × 559 mm | 40.0 × 30.0 × 22.0 in |
| Weight | 39.9 kg | 88.0 lb |
Dimensions and weight are estimates based on typical packaging for complete DR system field packages of this class. Please verify with your freight forwarder prior to shipping.
Key Detector Specifications
| Parameter | SCANRAY® 3643 |
|---|---|
| Series | Regular |
| Scintillator | Gadox / CsI |
| Pixel Pitch | 140 µm |
| Active Image Area | 358 × 430 mm (14.1 × 16.9 in) |
| Pixel Matrix | 2560 × 3072 pixels |
| Grayscale Depth | 16-bit |
| Wireless Connectivity | Wi-Fi IEEE 802.11n/ac |
| Automatic Exposure Detection (AED) | Yes — built-in radiation sensor |
| Internal Memory | Yes — stores images if wireless connection is lost |
| Battery Life | Up to 7 hours per set |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Ingress Protection | IP67 — fully dustproof and waterproof |
| Image Format | DICONDE — protected digital format |
Regular Series — Maximum Coverage Format
The SCANRAY® 3643 is the largest detector in the Regular series, delivering the widest single-shot coverage area of any standard SCANRAY model. Its 140 µm pixel pitch is optimized for large-format general-purpose inspection, where coverage speed and throughput take priority.
| SCANRAY Series | Pixel Pitch | Active Area | Best For |
|---|---|---|---|
| Regular 1230 | 124 µm | 5.0 × 12.5 in | Narrow joints, confined access |
| Regular 2532 | 124 µm | 10.0 × 12.5 in | General weld and corrosion inspection |
| Regular 3643 — This Product | 140 µm | 14.1 × 16.9 in | Maximum coverage, large-format inspection |
| PRO (2530, 3643) | 99 µm | Up to 13.8 × 16.8 in | Enhanced detail in demanding QC applications |
| Ultra (1723, 2329) | 75 µm | Up to 9.1 × 11.3 in | Maximum resolution for precision inspection |
With an active area of 358 × 430 mm (14.1 × 16.9 in) — the largest in the entire Regular lineup — the 3643 captures significantly more of the inspection surface in a single exposure than any other Regular series model. This translates directly into fewer shots, shorter inspection times, reduced radiation exposure for personnel, and lower overall inspection costs on large-scale projects.
DR-SOFT® Software
The SCANRAY® 3643 ships with DR-SOFT® pre-installed on both the included ruggedized laptop and ruggedized tablet. DR-SOFT® is DR Systems' proprietary radiographic image acquisition and evaluation software, designed to deliver a fast and intuitive inspection workflow directly in the field. Key capabilities include:
- Real-time image display immediately after each exposure
- Image enhancement, annotation, and measurement tools
- DICONDE-format image storage for secure archiving and remote transmission
- Immediate post-exposure evaluation — no darkroom, no waiting, no film processing
- Remote image transmission to a separate evaluation station for multi-site workflows
System Highlights
True Plug-and-Play Inspection The comprehensive package contents mean inspectors can begin working immediately upon arrival on site — no separate software licensing, no missing accessories, no sourcing compatible hardware.
Largest Active Area in the Regular Series At 14.1 × 16.9 inches, the 3643 captures the widest single-shot coverage area of any Regular series SCANRAY detector — maximizing throughput and minimizing total exposure count on large-scale inspection campaigns.
Wireless Operation Images are transmitted in real-time from the detector to the operator's tablet or laptop via Wi-Fi, allowing the operator to remain safely outside the radiation exclusion zone during exposure. An additional Wi-Fi module is included to extend wireless range in challenging environments.
24/7 Continuous Inspection Two full sets of batteries with charger ensure uninterrupted operation across extended inspection campaigns or multi-shift production environments.
Drop and Impact Protection The included universal protective cover protects the detector from accidental drops of up to 2 meters (6.6 feet) — a critical safeguard in active industrial environments.
High-Temperature Inspection The included heat-resistant blanket allows the detector to be used on hot objects up to 250°C (482°F) without any cooling period — reducing downtime in high-temperature process plant environments.
Zero Data Loss The detector's internal memory stores images locally when the wireless connection to the operator's station is interrupted. No images are ever lost during a working shift.
Compatible with All Radiation Sources The SCANRAY® 3643 works with constant-potential, half-sine, and pulsed X-ray generators, as well as gamma radiation sources of varying activity levels.
Compliance & Standards
The SCANRAY® 3643 fully meets the requirements of the following international NDT standards:
- ISO 17636-2 — Non-destructive testing of welds: Radiographic testing (Digital detectors)
- ASTM E2698 — Standard Practice for Radiological Examination Using Digital Detector Arrays
- ASME Boiler & Pressure Vessel Code — Section V, Article 2
Ideal Applications
- Large-diameter pipeline and pressure vessel weld inspection
- Structural weld inspection in shipbuilding and offshore construction
- High-throughput production radiography requiring maximum area coverage per shot
- Corrosion mapping of large storage tanks and process vessels
- In-service inspection of insulated and operating equipment
- Heavy manufacturing and fabrication quality control
- Any application where maximum single-shot coverage and inspection speed are the primary requirements
About DR Systems
DR Systems is an internationally recognized developer and manufacturer of advanced digital radiography systems for industrial NDT. Headquartered in Seoul, Republic of Korea, DR Systems' SCANRAY® platform is trusted by inspection teams and NDT contractors across the oil & gas, aerospace, shipbuilding, and defense sectors worldwide.
