Xograph — Digit-X Pen Densitometer

LED Viewer Version | Portable | Battery Operated | 0.00 – 4.00 ODSKU: DIGIT-X

Overview

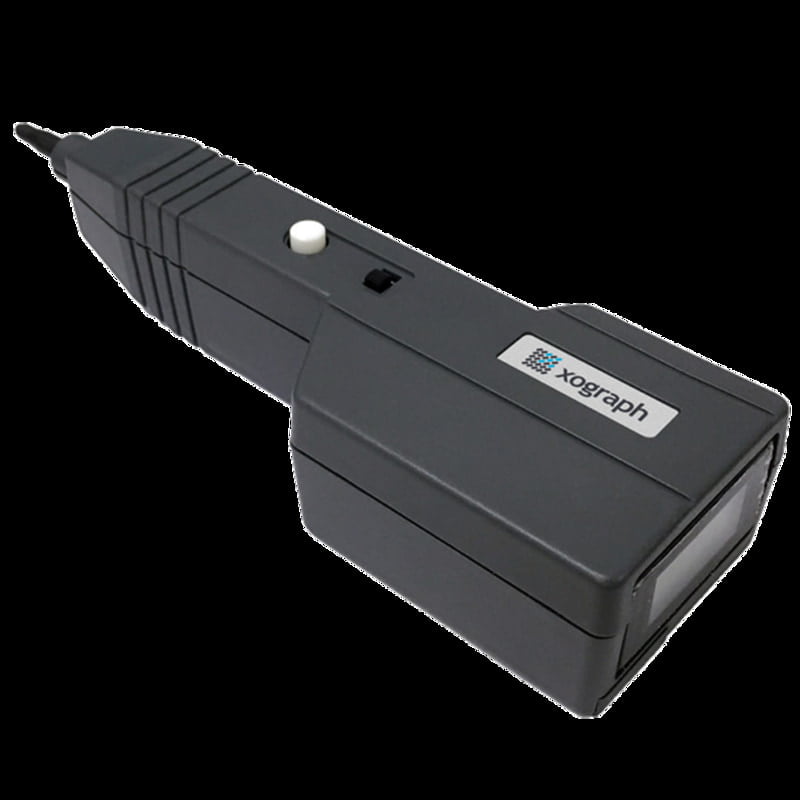

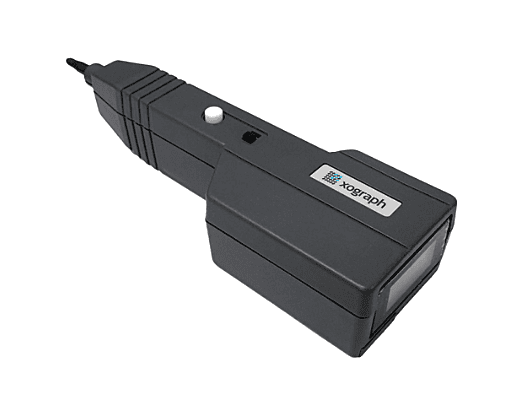

The Xograph Digit-X Pen Densitometer — LED Viewer Version is the go-to portable transmission densitometer for radiographic film quality assurance in modern NDT darkrooms and film viewing stations equipped with high-brightness LED film viewers. Designed and manufactured in Great Britain by Xograph — a company with nearly five decades of experience building reliable, precision NDT measurement equipment — the Digit-X combines outstanding ease of use with high accuracy, instant readout, and exceptional portability in a pen-sized handheld package weighing just 175 g (6 oz).

The LED version of the Digit-X has been specifically engineered to cope with the high brightness levels and high-frequency light output produced by modern LED film viewers — making it the correct choice for any facility that has transitioned from traditional fluorescent or incandescent illuminators to LED-based viewing technology. For high-brightness LED viewers producing 20,000 to 200,000 cd/m² of luminance, this is the version you need.

What's Included

Note: Due to air transport regulations, batteries may not be included for international export orders and must be sourced locally at the destination. A standard 9V PP3 battery is required.

Key Specifications

Box Dimensions & Shipping Weight (Estimated)

LED Viewer Version — Why It Matters

Modern LED film viewers present a challenge that traditional densitometers were not designed to handle. LED light sources produce significantly higher luminance levels than conventional fluorescent or halogen illuminators — often exceeding 100,000 cd/m² — and operate at a distinctly higher frequency. Standard densitometers calibrated for fluorescent viewers will produce out-of-tolerance readings when used on high-brightness LED viewers, compromising the reliability and code compliance of film density measurements.

The Digit-X LED version addresses this directly with dedicated internal circuitry engineered specifically to:

• Handle the extended luminance range of 20,000 – 200,000 cd/m² produced by LED film viewers
• Accurately filter and process the higher-frequency light output characteristic of LED light sources
• Deliver accurate, repeatable density readings across the full 0.00 – 4.00 OD range regardless of viewer brightness level

For facilities using high-brightness LED viewers — particularly those rated at 85,000 cd/m² and above — the LED version of the Digit-X is the required instrument for compliant film density measurement.

How It Works

Using the Digit-X is as simple as it is fast:

1. Place the radiographic film or QA film strip on the illuminated surface of the LED film viewer
2. Press the fiber-optic tip of the Digit-X evenly against the region of the film to be measured
3. Press the zero button to establish a baseline reading
4. Push the instrument gently forward — the film density is immediately displayed on the LCD to 2 decimal places
5. Use the freeze-hold facility to lock the reading for recording or documentation
6. Press the zero button to reset the display before the next measurement

No warm-up time, no cables, no power supply — just instant, accurate density readings wherever and whenever they are needed.

Key Features

• Fine fiber-optic probe — allows precise measurement of small, specific areas of film without influence from adjacent zones
• 2 decimal place LCD readout — 0.01 OD resolution for precise, code-compliant density reporting
• Freeze-hold facility — locks the displayed reading for recording without risk of losing the measurement
• Zero button — convenient single-button reset between measurements for fast multi-point inspection workflows
• No warm-up time — instant readings from the moment the instrument is picked up
• Extended battery life — special low-power circuitry minimizes battery consumption; low battery warning prevents unexpected instrument failure during an inspection
• 175 g / 6 oz — one of the lightest densitometers available; pen form factor fits comfortably in any instrument case or pocket
• Sturdy carry case — robust protective case keeps the instrument safe between uses
• 1-year no-fuss warranty — backed by Xograph's established warranty program

Compliance & Standards

The Digit-X Pen Densitometer is suitable for film density measurements required by the following NDT codes and standards:

• ASTM E94 — Standard Guide for Radiographic Examination Using Industrial Radiographic Film
• ASTM E1030 — Standard Test Method for Radiographic Examination of Metallic Castings
• ASTM E1032 — Standard Test Method for Radiographic Examination of Weldments
• ASME Boiler & Pressure Vessel Code — Section V, Article 2 (Radiographic Testing)
• EN ISO 17636-1 — Non-destructive testing of welds: Radiographic testing of fusion-welded joints
• API 1104 — Welding of Pipelines and Related Facilities

Digit-X Version Selection Guide

If your facility uses LED film viewers — particularly those rated at 85,000 cd/m² or above — this LED version is the correct choice.

Ideal Applications

• Film density verification and quality assurance in industrial radiographic testing (RT)
• Darkroom quality control — film processor monitoring and QA program documentation
• Film density measurement directly at the LED film viewer without moving film to a separate instrument
• Weld radiograph density evaluation for code compliance
• Field and portable radiography film density checking on site
• Any application requiring fast, accurate, portable film optical density measurement on a modern LED viewer

About Xograph

Xograph is a British manufacturer with nearly 50 years of experience designing and producing high-quality radiographic accessories and densitometry equipment for the industrial NDT and medical imaging markets. The Digit-X series is Xograph's most recognized product — trusted by radiographic technicians, quality assurance professionals, and NDT laboratories worldwide for its simplicity, accuracy, and reliability.
