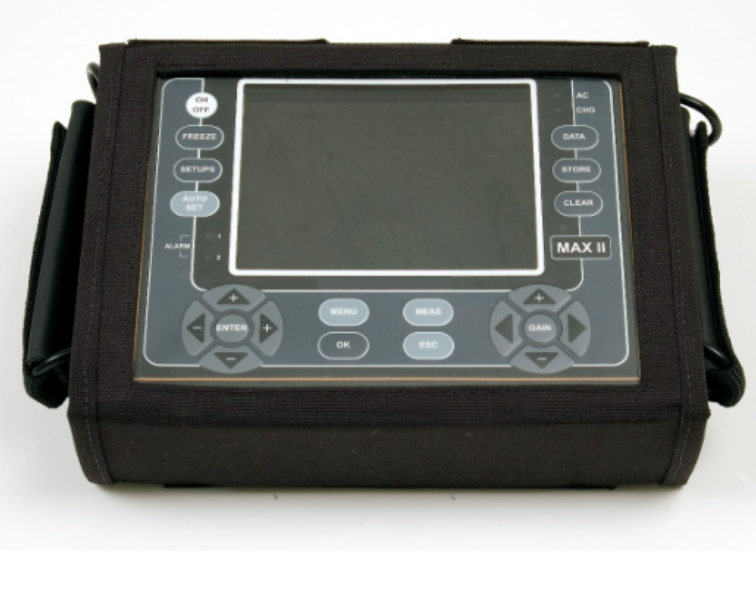

The DFX-8 (Dakota FX80-DL) is a powerful combination flaw detector and thickness gauge, engineered to meet the diverse needs of flaw detection and material thickness measurements. With a large, sunlight-readable QVGA display and a high refresh rate of 60 Hz, this device offers excellent clarity and real-time data for critical inspection tasks. It includes a range of advanced flaw detection toolkits, such as DAC, AWS, TCG, and DGS, making it a comprehensive solution for industry professionals who require accurate flaw sizing and thickness measurements.

In its role as a thickness gauge, the FX80-DL utilizes Pulse-Echo, Echo-Echo, and advanced modes to accurately measure both coated and uncoated materials, making it versatile for various inspection needs. The device features 4 GB of internal memory with options for USB and SD card data transfer, making it easy to manage and retrieve data. Additionally, the DFX-8 meets IP65 environmental standards, ensuring reliable performance in challenging field conditions.

Key Features:

• Flaw Detection & Sizing Toolkits: Equipped with DAC, AWS, TCG, and DGS toolkits, the FX80-DL enables precise flaw identification and sizing, compliant with AWS D1.1 structural welding standards.
• Multiple Measurement Modes: Offers Pulse-Echo, Echo-Echo, and various other advanced modes for detecting flaws and measuring coating thickness, even on irregular surfaces.
• Data Storage & Transfer: Includes 4 GB of internal memory and supports SD card storage (up to 64 GB) for extensive data logging, with transfer options via USB.
• Durability: Built with a durable, gasket-sealed extruded aluminum case and designed to withstand tough environments, with IP65 certification.
• Calibration & Auto Features: Supports automatic probe recognition, calibration, and temperature compensation, ensuring accurate measurements across a range of conditions.

Specifications:

• Display: 5.7-inch QVGA color display with 320 x 240 resolution and 60 Hz refresh rate.
• Size and Weight: 8.5W x 6.5H x 2.5D inches (216 x 165 x 70 mm), weighing 4.5 lbs (2.04 kg) with batteries.
• Measurement Range: Pulse-Echo mode measures up to 100 ft (3048 cm) and Echo-Echo mode up to 4.0 inches (102 mm).
• Battery Life: Includes a rechargeable lithium-ion pack (18 hrs typical), with AA alkaline or NI-MH emergency backup options.
• Certification: Factory calibration traceable to NIST and compliant with EN12668-1 standards.

Included Accessories:

The DFX-8 is provided as a complete kit, which includes the DakView3 PC software and cables, a 4 oz bottle of couplant, lithium-ion battery, line power adapter, universal power cable, user manuals, and a calibration certificate in a durable plastic carrying case.

Applications:

Ideal for a range of industries including aerospace, automotive, and structural welding, the FX80-DL is suitable for:

• Flaw detection in structural welding and critical components
• Thickness measurements on coated and uncoated materials
• Corrosion detection and mapping
• Measurement of coatings and layers on composite materials
