NM01PATYPAMCS

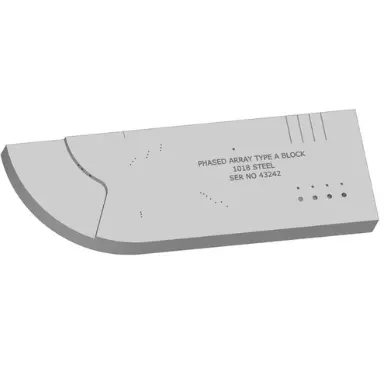

The PH Tool Phased Array Type "A" Calibration Block is an essential tool for the initial setup, calibration, and performance verification of phased array ultrasonic testing (PAUT) instruments. Manufactured from 1018 carbon steel and adhering to metric specifications (PH Tool Drawing No: 10217), this block is specifically engineered to address the unique requirements of phased array applications. It is supplied with a protective wood case for secure storage and transportation.

This "Type A" block, while sharing similar overall dimensions with an IIW-Type block (25.0 mm thick x 100.0 mm tall x 300.0 mm long), incorporates a range of features specifically designed for PAUT. These features enable technicians to perform critical calibration tasks such as beam angle verification, wedge delay calibration, sensitivity calibration, and performing Distance Amplitude Correction (DAC) or Time Corrected Gain (TCG).

The metric version of this block includes:

• Two radii: 100.0 mm and 50.0 mm, for surface contour calibration.

• Nineteen (19) through holes at 1.0 mm diameter, for sensitivity and resolution checks.

• One (1) through hole at 2.0 mm diameter.

• Four (4) Flat Bottom Holes (FBHs) at 2.0 mm diameter with depths of 2.0 mm, 4.0 mm, 6.0 mm, and 8.0 mm, for amplitude and depth calibration.

• Four (4) Flat Bottom Holes (FBHs) at 4.0 mm diameter with depths of 1.0 mm, 3.0 mm, 5.0 mm, and 7.0 mm, for amplitude and depth calibration.

• Three (3) Flat Bottom Holes (FBHs) at 2.0 mm diameter x 3.0 mm deep, machined into the 50 mm radius, for curved surface calibration.

• Four (4) EDM notches of varying depths for flaw sizing and characterization exercises.

The inclusion of a fitted wood case ensures the block remains protected from damage, preserving its calibration accuracy and extending its lifespan.

Key Selling Points:

• Specifically Designed for Phased Array UT: Engineered with features tailored to PAUT calibration needs.

• Metric Dimensions: Manufactured to metric specifications (PH Tool Drawing No: 10217).

• High-Quality 1018 Steel: Provides consistent acoustic properties for reliable calibration.

• Comprehensive Feature Set: Includes radii, through holes, and FBHs for various calibration tasks.

• Facilitates Key PAUT Calibrations: Enables beam angle verification, wedge delay, sensitivity, DAC/TCG, and more.

• Protective Wood Case Included: Ensures safe storage and transportation.

• From a Reputable Manufacturer (PH Tool): A trusted name in NDT calibration standards.

Benefits:

• Ensures Accurate PAUT Inspections: Proper calibration is crucial for reliable phased array testing results.

• Streamlines PAUT Setup: Provides a single block for multiple essential calibration procedures.

• Protects Investment: The included wood case helps maintain the block's accuracy and longevity.

• Meets Industry Standards: Designed with consideration for common phased array calibration practices.

Applications:

This Phased Array Type "A" Block is essential for calibrating phased array ultrasonic testing equipment used in various industries, including:

• Oil and Gas

• Aerospace

• Power Generation

• Manufacturing

• Automotive

• Infrastructure

The PH Tool Phased Array Type "A" Block, 1018 Steel, Metric, with Wood Case is a critical tool for ensuring the accuracy and reliability of your phased array ultrasonic testing system, providing a comprehensive calibration standard in a durable and protected package.
