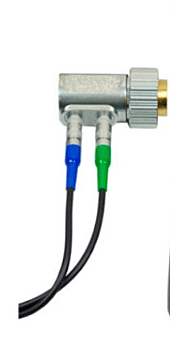

⚡ Adelix S112-5-10/2 UT Dual Transducer: Precision Corrosion Measurement
Product Headline
Unmatched Clarity for Thickness and Corrosion Inspection.
The Adelix S112-5-10/2 is a high-performance, dual element ultrasonic transducer engineered for demanding Non-Destructive Testing (NDT) applications. Specifically optimized for thickness gauging and corrosion monitoring, this probe delivers stable, high-resolution results, even on rough or coated surfaces.
Key Technical Specifications
| Feature | Specification | Impact on Inspection |
| Transducer Type | Dual Element ($\mathbf{/2}$) | Excellent near-surface resolution; minimizes dead zone for accurate readings. |
| Frequency | $\mathbf{5\ \text{MHz}}$ | Optimal balance of penetration and sensitivity for most common metals (steel, aluminum, etc.). |
| Element Diameter | $\mathbf{10\ \text{mm}}$ | Generates a focused acoustic beam for precision measurements on small areas and curved surfaces. |
| Compatibility | Standard Connectors | Compatible with most modern UT thickness gauges and flaw detectors (check your gauge's requirements). |
Why Choose the Adelix S112-5-10/2?
This dual element probe is indispensable for structural integrity and quality control:
Superior Corrosion Detection: The dual-crystal design (separate transmitter and receiver) ensures the highest accuracy when measuring material loss from corrosion and erosion, providing clear, repeatable back-wall echoes.
Rough Surface Performance: Significantly reduces interface noise and ring-down when inspecting pitted, oxidized, or poorly prepared surfaces—common in field maintenance.
High Resolution: The $\mathbf{5\ \text{MHz}}$ frequency provides the necessary resolution to detect and size shallow pits and small defects, crucial for critical components.
Durable Build: Built to withstand the rigors of industrial NDT environments, offering long-term reliability and performance.
Primary Applications
Pipeline and Vessel Wall Thickness Gauging
In-Service Corrosion/Erosion Monitoring
Boiler Tube and Heat Exchanger Inspection
Quality Control in Metal Fabrication and Machining
