Sonatest — Standard 70° Wedge for 1/2" × 1" Probe (AOD 3.5" Dia.)
Angle Beam Wedge for Ultrasonic Testing Applications SKU: SW5170-3.5Overview

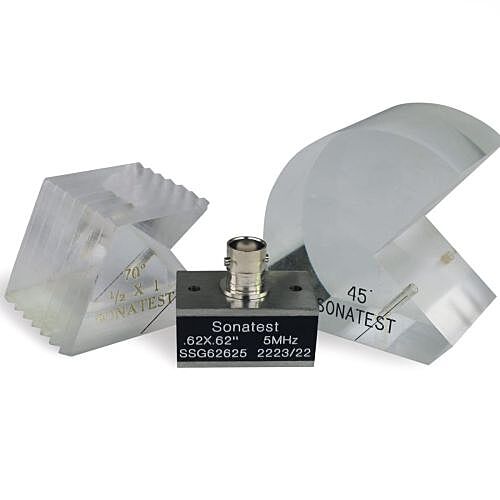

The Sonatest Standard 70° Wedge is a precision ultrasonic accessory designed for angle beam inspections using 1/2" × 1" probes. Engineered to generate a 70° refracted shear wave, this wedge enables accurate detection and evaluation of weld defects such as cracks, lack of fusion, and inclusions.
With an Active Offset Distance (AOD) of 3.5 inches, this configuration provides optimized beam positioning for specific inspection geometries, allowing improved access and coverage in weld inspection applications. The wedge ensures stable probe coupling and consistent beam entry, supporting reliable and repeatable inspection results.
Designed for compatibility with Sonatest ultrasonic systems, this wedge is ideal for use in industries such as oil & gas, power generation, and fabrication where precision and consistency are essential.
What's Included
| Item | Details |
|---|---|
| UT Wedge | 70° angle beam wedge for 1/2" × 1" probe |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 6.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 6.0 × 4.0 × 3.0 in |
| Weight | 0.7 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic wedge |
| Angle | 70° refracted shear wave |
| Probe Size Compatibility | 1/2" × 1" |
| AOD (Active Offset Distance) | 3.5 in |
| Application | Angle beam ultrasonic testing |
| Compatibility | Sonatest UT systems |
Performance Features
70° Angle Beam Inspection
Optimized for detecting weld defects such as cracks, lack of fusion, and inclusions.
Extended AOD Configuration
3.5" AOD provides improved beam positioning for specific inspection setups and geometries.
Stable Probe Coupling
Ensures consistent contact and reliable signal transmission during inspection.
Repeatable Inspection Results
Supports accurate and dependable evaluation across applications.
User-Friendly Design
- Easy probe mounting and alignment
- Lightweight and easy to handle
- Compatible with standard UT setups
- Designed for efficient inspection workflows
Built for Industrial Environments
- Durable construction for demanding applications
- Suitable for field and shop inspections
- Reliable performance in continuous use
- Designed for professional NDT workflows
Compatibility
Compatible with:
- Sonatest ultrasonic probes (1/2" × 1")
- Ultrasonic flaw detectors
- Angle beam UT inspection setups
- Weld inspection workflows
Ideal Applications
- Weld inspection and flaw detection
- Structural steel inspection
- Pipeline and pressure vessel inspection
- Oil & gas and power generation industries
- Fabrication and manufacturing QA/QC
- General angle beam ultrasonic testing (UT)
About Sonatest
Sonatest is a global leader in ultrasonic testing technology, providing advanced solutions for flaw detection, phased array inspection, and corrosion monitoring. Their products are trusted by NDT professionals worldwide for accuracy, reliability, and innovation.
