NM01MAP255045

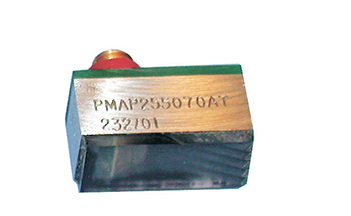

MINIATURE ANGLE BEAM POTTED ( MAP ), 5 MHz, 0.250" Element Size, Microdot Side Entry Connector, 45 degree, Dakota NDT
Achieve Precise Angle Beam Inspections in Tight Spaces with this Dakota NDT Miniature Transducer
When detailed flaw detection is required in confined or challenging geometries, this Dakota NDT Miniature Angle Beam Potted (MAP) transducer offers an ideal solution. Featuring a small 0.250" element size and a focused 5 MHz frequency, this 45-degree angle beam probe is specifically designed to deliver high-resolution inspections in areas with limited access.
The precisely angled 45-degree refracted beam is optimized for detecting and characterizing flaws with specific orientations, commonly encountered in weld inspections and intricate component designs. The Microdot side entry connector provides excellent flexibility for cable routing, ensuring easy integration into various inspection setups, even where space is at a premium.
Built with a durable potted construction, this miniature transducer offers robust protection against harsh environments, ensuring reliable and consistent performance in demanding industrial applications. Its small element size allows for focused sound beams, enhancing sensitivity for detecting small discontinuities and accurately evaluating flaws using the 45-degree angle beam technique in previously hard-to-reach areas.
Key Features:
Compact 0.250" Element Size: Provides excellent access to confined areas and allows for a focused sound beam.
Precise 45° Angle Beam: Optimized for detecting and characterizing flaws with specific orientations.
High-Resolution 5 MHz Frequency: Delivers excellent sensitivity for detailed angled inspections in tight spaces.
Convenient Microdot Side Entry Connector: Offers maximum flexibility in cable routing for easy integration in restricted areas.
Durable Potted Construction: Enhances robustness and protects internal components from demanding environments.
Ideal for Restricted Access: Perfect for inspecting welds and components with complex geometries and limited space.
Applications:
Detailed weld inspection in restricted access areas.
Critical flaw detection near tight corners and complex structural details.
Inspection of small diameter tubes and pipes.
General angle beam inspections where a small footprint and focused beam are required.
Enhance your inspection capabilities in challenging environments. Invest in the Dakota NDT Miniature Angle Beam Potted (MAP) 5 MHz, 0.250" Element Size, 45 degree Transducer today.
