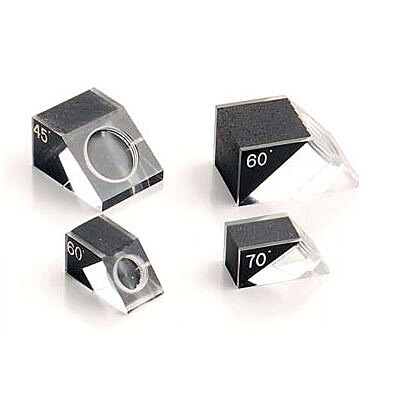

Dakota Ultrasonics — Quick Change Wedge QW3770 (70°, 3/8" Dia.)
Compact Angle Beam UT Wedge for Precision Inspection SKU: X-004-0043Overview
The Dakota Ultrasonics QW3770 Quick Change Wedge is a precision ultrasonic wedge designed for angle beam inspections using 3/8" diameter probes. Configured to generate a 70° refracted shear wave, this wedge is ideal for detecting weld discontinuities such as cracks, lack of fusion, and inclusions.
Featuring a quick change design, the QW3770 allows rapid probe installation and replacement, improving inspection efficiency and reducing downtime. Its compact size makes it suitable for inspections in tight or restricted areas while maintaining stable beam entry and consistent performance.
Engineered for compatibility with Dakota Ultrasonics quick change probe systems, this wedge is widely used in fabrication, structural inspection, and welding quality control applications.
What's Included
| Item | Details |
|---|---|
| UT Wedge | QW3770 quick change wedge, 70°, 3/8" diameter |
Box Dimensions & Shipping Weight (Estimated)
| Parameter | Imperial |
|---|---|
| Length | 5.0 in |
| Width | 4.0 in |
| Height | 3.0 in |
| Dimensions (L × W × H) | 5.0 × 4.0 × 3.0 in |
| Weight | 0.5 lb |
Key Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic wedge |
| Model | QW3770 |
| Wedge Type | Quick change |
| Angle | 70° refracted shear wave |
| Probe Compatibility | 3/8" diameter |
| Application | Angle beam ultrasonic testing |
Performance Features
70° Angle Beam Inspection
Optimized for weld inspection and detection of critical discontinuities.
Quick Change System
Enables fast probe replacement and improved inspection workflow.
Compact Design
Ideal for accessing tight or confined inspection areas.
Stable Beam Entry
Ensures consistent ultrasonic transmission and repeatable results.
User-Friendly Design
- Easy probe mounting and removal
- Lightweight and compact
- Compatible with quick change systems
- Designed for efficient inspection workflows
Built for Industrial Environments
- Durable construction for demanding applications
- Suitable for field and shop inspections
- Reliable performance in continuous use
- Designed for professional NDT workflows
Compatibility
Compatible with:
- Dakota Ultrasonics quick change probes
- Ultrasonic flaw detectors
- Angle beam UT inspection setups
- Weld inspection workflows
Ideal Applications
- Weld inspection and flaw detection
- Structural steel inspection
- Pipeline and pressure vessel inspection
- Oil & gas and construction industries
- Fabrication and manufacturing QA/QC
- General angle beam ultrasonic testing (UT)
About Dakota Ultrasonics
Dakota Ultrasonics is a leading manufacturer of ultrasonic testing equipment, providing reliable and high-performance solutions for thickness measurement and flaw detection. Their products are widely used in industrial environments where accuracy, durability, and efficiency are essential.
