NM01ABQC5250G

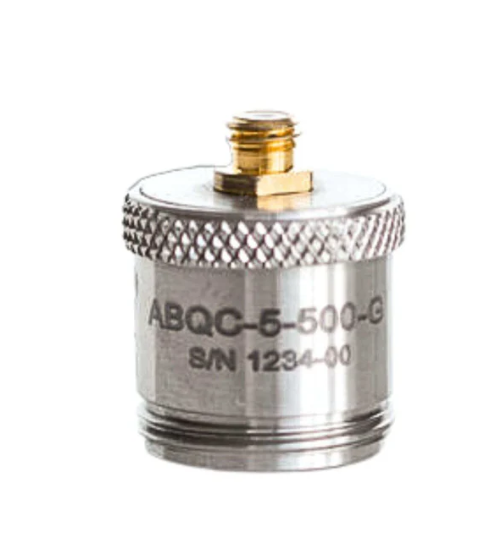

The CNDT Quick Change Fingertip Angle Beam Transducer is a compact and versatile ultrasonic transducer designed for precise angle beam inspections in confined or hard-to-reach areas. This transducer combines the convenience of quick-change functionality with the ergonomic design of a fingertip probe, enhancing inspection efficiency and accuracy.

The "Quick Change" feature allows for rapid connection and disconnection, minimizing downtime and facilitating seamless transitions between different inspection setups. This is particularly beneficial in situations where multiple transducers or inspection angles are required.

The "Fingertip" design refers to the transducer's small size and ergonomic shape, enabling easy manipulation and precise positioning in tight spaces. This makes it ideal for inspections where access is limited or where larger transducers cannot be used.

Operating at a frequency of 5 MHz, this transducer provides a good balance between penetration and resolution, making it suitable for a wide range of angle beam inspections. This frequency is commonly used for detecting flaws in welds, pipes, and structural components.

The 0.25" diameter element size provides a focused and effective angle beam, enhancing the sensitivity and accuracy of flaw detection. This size is well-suited for general-purpose angle beam inspections, offering a compromise between sensitivity and beam spread.

The Microdot connector ensures a secure and reliable electrical connection to compatible ultrasonic flaw detectors, ensuring consistent signal transmission and data integrity.

Manufactured by CNDT, this transducer is built to meet industry standards and provide reliable performance in demanding NDT applications.

Key Features and Benefits:

• Quick Change Design: Enables rapid transducer replacement.

• Fingertip Size: Allows for easy manipulation in tight spaces.

• 5 MHz Frequency: Provides a balance of penetration and resolution.

• 0.25" Diameter: Offers a focused angle beam.

• Microdot Connector: Ensures a secure and reliable connection.

• Reliable Performance: Designed for consistent and accurate inspections.

Applications:

• Weld Inspection: Detecting flaws in welds, particularly in limited-access areas.

• Pipe Inspection: Inspecting pipes for defects.

• Structural Inspection: Inspecting structural components.

• Limited Access Inspections: Inspecting areas where larger transducers cannot fit.

• Aerospace inspections.

• Manufacturing inspections.
