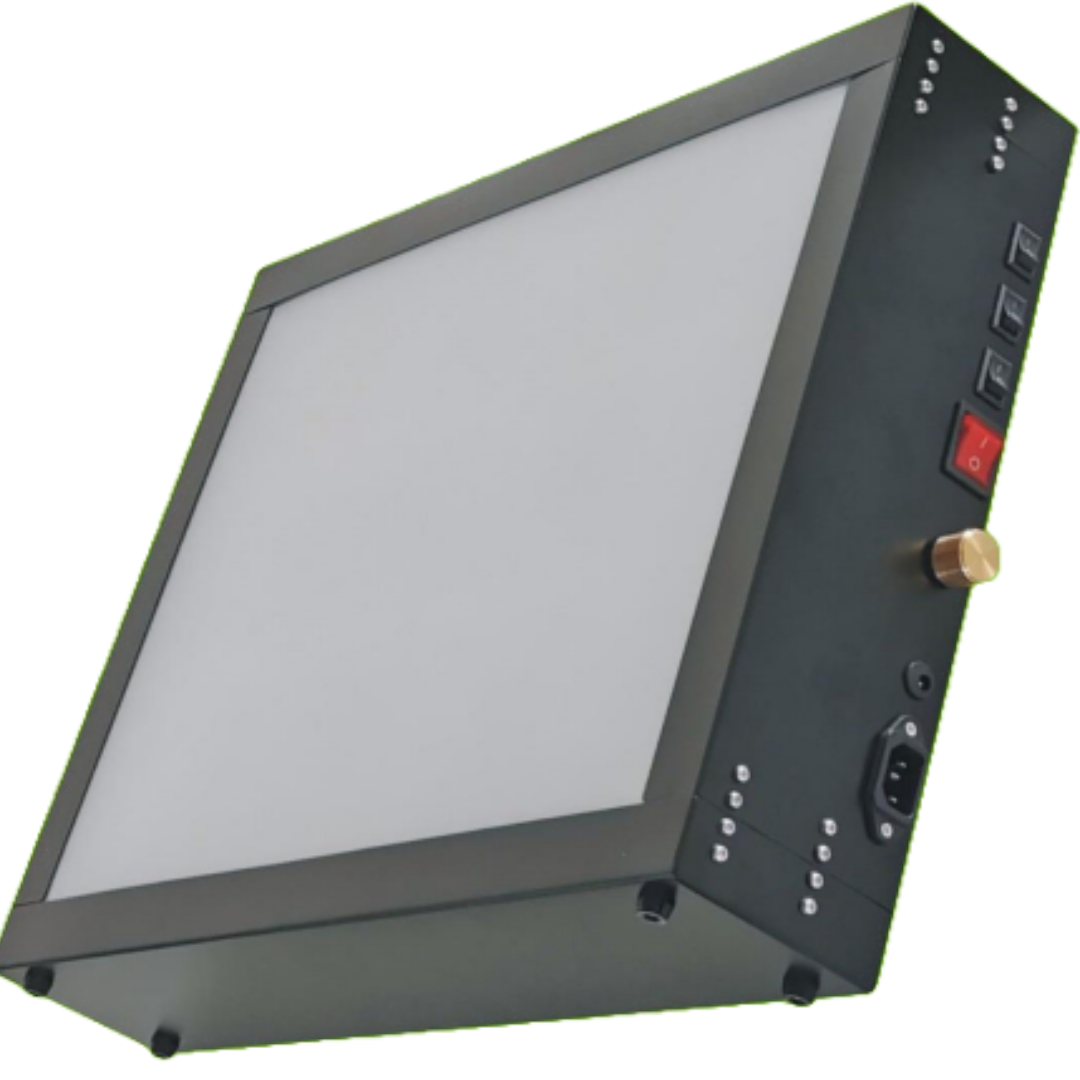

Portable Industrial LED Film Viewer A9
High-Intensity Radiographic Film Viewer | 50,000 cd/m² Maximum Luminance | SKU: FVA9
A large-format industrial LED film viewer designed for professional radiographic film interpretation, combining high-intensity illumination, a generous 320 × 425 mm viewing area and a durable portable configuration for laboratory and field NDT applications.

| 50,000 cd/m² Maximum luminance | 320 × 425 mm Viewing window | LED High-intensity light source | 6 kg Net weight |
Overview
The Portable Industrial LED Film Viewer A9 is designed for professional interpretation of industrial radiographic film used in non-destructive testing.
Delivering up to 50,000 cd/m² maximum luminance, the A9 provides the illumination needed to evaluate radiographic images and identify relevant indications during weld, pipeline, component and general industrial radiography inspections.
A large 320 × 425 mm (12.6 × 16.7 in) viewing window accommodates a broad range of industrial film sizes and provides significantly more viewing area than compact strip-style viewers.
High-intensity LED illumination provides consistent light across the viewing surface while supporting instant operation without the warm-up time associated with traditional lamp technologies.
With an overall size of approximately 485 × 385 × 105 mm and a net weight of 6 kg, the A9 combines a substantial viewing area with a configuration that can be transported between inspection locations.
Key Features
![]() | High-intensity LED illuminationThe LED light source delivers up to 50,000 cd/m² maximum luminance for clear interpretation of industrial radiographic films across a range of densities. |
Large viewing areaThe generous viewing surface provides room for evaluating larger radiographic films without requiring constant repositioning during inspection. | Viewing Window 320 × 425 mm 12.6 × 16.7 in |
| Maximum Luminance 50,000 cd/m² | Built for radiographic film evaluationHigh luminance improves visibility through dense radiographic images and supports more reliable interpretation of welds, castings and other industrial components. |
Uniform viewing illuminationThe LED array is designed to provide consistent illumination across the viewing window, helping reduce distracting bright and dark areas during film interpretation. | Light Source LED Array |
| Net Weight 6 kg Approx. 13.2 lb | Portable industrial configurationDespite its large viewing area, the A9 remains practical for transportation between darkrooms, laboratories, fabrication shops and field inspection locations. |
Instant-on operationLED illumination provides immediate light output without lengthy warm-up periods, helping inspection personnel begin film interpretation quickly. | Operation Instant-On |
Designed for Industrial Radiography
Weld radiography
Provides high-intensity illumination for evaluation of industrial radiographs used to inspect welded joints and identify relevant internal indications.
Large-format film interpretation
The 320 × 425 mm illuminated area allows inspectors to evaluate relatively large radiographic films with reduced repositioning.
Laboratory and field use
Suitable for radiographic darkrooms, inspection laboratories, manufacturing facilities and portable field inspection setups.
LED efficiency
LED technology provides efficient illumination with lower heat generation than many traditional high-intensity film-viewing light sources.
Specifications
| General | |
| Product | Portable Industrial LED Film Viewer A9 |
|---|---|
| Product SKU | FVA9 |
| NOMO Store SKU | NM01FVA9 |
| Product Type | Industrial LED radiographic film viewer |
| Viewing System | |
| Light Source | High-intensity LED array |
| Maximum Luminance | 50,000 cd/m² |
| Viewing Window | 320 × 425 mm (12.6 × 16.7 in) |
| Illumination | Uniform LED illumination across viewing area |
| Start-Up | Instant-on LED illumination |
| Physical | |
| Dimensions (L × W × H) | 485 × 385 × 105 mm (19.1 × 15.2 × 4.1 in) |
| Net Weight | 6 kg (13.2 lb) |
| Installation / Use | Bench-top / portable |
| Power | |
| Power Supply | Standard AC power |
| Shipping | |
| Packed Box Dimensions (Estimated) | 22 × 18 × 8 in (559 × 457 × 203 mm) |
| Gross Shipping Weight (Estimated) | Approx. 18 lb (8.2 kg), including film viewer, accessories and protective packaging |
What's Included
| A9 LED Film Viewer | Main viewing unit with integrated LED illumination |
| Power Cable | Standard power connection cable |
| Operating Manual | User documentation |
Applications
| ✓ Industrial radiographic film interpretation | ✓ Weld inspection |
| ✓ Oil & gas pipeline radiography | ✓ Aerospace component inspection |
| ✓ Manufacturing quality control | ✓ Fabrication QA/QC |
| ✓ Laboratory radiography | ✓ Field NDT operations |
