SCANRAY® 1230 — Portable Wireless Digital Radiography System
Complete Field Package
Overview
The SCANRAY® 1230 is a professional-grade, portable wireless digital radiography (DR) system engineered to replace conventional X-ray film and computed radiography (CR) plates in industrial non-destructive testing. Designed and manufactured by DR Systems, the 1230 is the most compact model in the SCANRAY Regular series — making it the preferred choice for weld inspection, corrosion survey, and quality control applications in oil & gas, petrochemical, shipbuilding, aerospace, power generation, and heavy manufacturing environments.

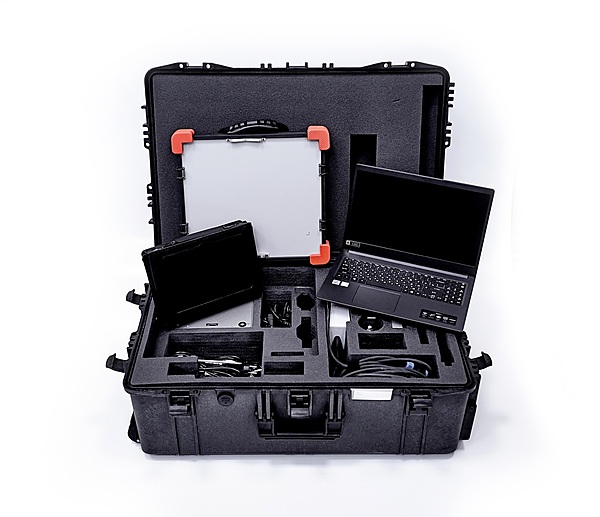

This complete field package includes everything needed to begin performing digital radiographic inspections immediately upon delivery — no additional purchases required. From the rugged detector and pre-installed DR-SOFT® software to the transportation case and heat-resistant blanket, the SCANRAY® 1230 is engineered and packaged to work straight out of the box.
What's Included
| Item | Details |
|---|---|
| SCANRAY® 1230 Digital Flat-Panel Detector | Core detection unit |
| Universal Protective Cover | Drop protection up to 2 m (6.6 ft) |
| Detachable Detector Handle | Ergonomic field handling |
| Magnetic Holders | Fast detector positioning on ferrous surfaces |
| Lashing Straps | Secure detector placement on non-magnetic objects |
| Calibration Steel Plate | For calibration and image quality verification |
| 2 Sets of Batteries + Charger | Enables continuous 24/7 inspection capability |
| Ruggedized Laptop | Pre-installed with DR-SOFT® software |
| Ruggedized Tablet | Pre-installed with DR-SOFT® software |
| Tablet Docking Station | With extra battery for extended tablet operation |
| Additional Wi-Fi Module | Extended wireless range for remote operator positioning |
| Heat-Resistant Blanket | Enables inspection of hot objects up to 250°C (482°F) |
| Computer Mouse | For laptop/desktop software operation |
| Wire Set | Connection cables and accessories |
| Transportation Case | Ruggedized case for safe transport of all components |
Detector Dimensions & Weight
| Parameter | Metric | Imperial |
|---|---|---|
| Length | 400 mm | 15.75 in |
| Width | 160 mm | 6.30 in |
| Height (Thickness) | 25 mm | 0.98 in |
| Dimensions (L × W × H) | 400 × 160 × 25 mm | 15.75 × 6.30 × 0.98 in |
| Weight | 3.2 kg | 7.05 lb |
Key Detector Specifications
| Parameter | SCANRAY® 1230 |
|---|---|
| Scintillator | Gadox / CsI |
| Pixel Pitch | 124 µm |
| Active Image Area | 127 × 317 mm (5.0 × 12.5 in) |
| Pixel Matrix | 1024 × 2560 pixels |
| Grayscale Depth | 16-bit |
| X-Ray Voltage Range | 40 – 450 kVp |
| Maximum Exposure Time | 180 seconds |
| Wireless Connectivity | Wi-Fi IEEE 802.11n/ac |
| Automatic Exposure Detection (AED) | Yes — built-in radiation sensor |
| Internal Memory | Yes — stores images if wireless connection is lost |
| Battery Life | Up to 7 hours per set |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |
| Ingress Protection | IP67 — fully dustproof and waterproof |
| Image Format | DICONDE — protected digital format |
DR-SOFT® Software
The SCANRAY® 1230 ships with DR-SOFT® pre-installed on both the included ruggedized laptop and ruggedized tablet. DR-SOFT® is DR Systems' proprietary radiographic image acquisition and evaluation software, designed to deliver a fast, intuitive inspection workflow directly in the field. Key capabilities include:
- Real-time image display immediately after each exposure
- Image enhancement, annotation, and measurement tools
- DICONDE-format image storage for secure archiving and remote transmission
- Immediate post-exposure evaluation — no darkroom, no waiting, no film processing
- Remote image transmission to a separate evaluation station for multi-site workflows
System Highlights
True Plug-and-Play Inspection The comprehensive package contents mean inspectors can begin working immediately upon arrival on site — no separate software licensing, no missing accessories, no sourcing compatible hardware.
Wireless Operation Images are transmitted in real-time from the detector to the operator's tablet or laptop via Wi-Fi, allowing the operator to remain safely outside the radiation exclusion zone during exposure. An additional Wi-Fi module is included to extend wireless range in challenging environments.
24/7 Continuous Inspection Two full sets of batteries with charger ensure uninterrupted operation across extended inspection campaigns or multi-shift production environments.
Drop and Impact Protection The included universal protective cover protects the detector from accidental drops of up to 2 meters (6.6 feet) — a critical safeguard in active industrial environments.
High-Temperature Inspection The included heat-resistant blanket allows the detector to be used for inspection of hot objects up to 250°C (482°F) without any cooling period — reducing downtime in high-temperature process plant environments.
Zero Data Loss The detector's internal memory stores images locally when the wireless connection to the operator's station is interrupted. No images are ever lost during a working shift.
Compatible with All Radiation Sources The SCANRAY® 1230 works with constant-potential, half-sine, and pulsed X-ray generators, as well as gamma radiation sources of varying activity levels.
Compliance & Standards
The SCANRAY® 1230 fully meets the requirements of the following international NDT standards:
- ISO 17636-2 — Non-destructive testing of welds: Radiographic testing (Digital detectors)
- ASTM E2698 — Standard Practice for Radiological Examination Using Digital Detector Arrays
- ASME Boiler & Pressure Vessel Code — Section V, Article 2
Ideal Applications
- Weld inspection in oil & gas pipelines, refineries, and petrochemical facilities
- Corrosion mapping of pressure vessels, storage tanks, and piping
- Shipbuilding and offshore structure inspection
- Aerospace component quality control
- Military and defense NDT applications
- In-service inspection of insulated and operating equipment
- Any application requiring immediate, filmless radiographic results
About DR Systems
DR Systems is an internationally recognized developer and manufacturer of advanced digital radiography systems for industrial NDT. Headquartered in Seoul, Republic of Korea, DR Systems' SCANRAY® platform is trusted by inspection teams and NDT contractors across the oil & gas, aerospace, shipbuilding, and defense sectors worldwide.
SKU: SCANRAY1230
