NM01D1AW00910

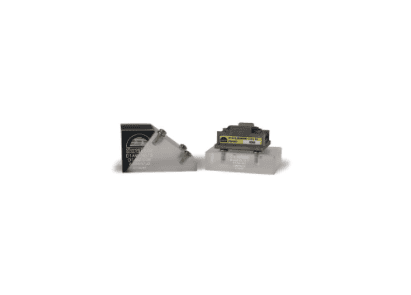

The Sonatest DAAH Wedge is a high-quality, Type 1 external mount wedge specifically designed for ultrasonic testing on components with a 10-inch circumferential radius. Constructed from durable and acoustically optimized Rexolite, this wedge facilitates reliable shear wave inspection at a 37-degree angle in the material being tested.
This particular DAAH wedge is equipped with both integrated irrigation channels for efficient couplant delivery directly at the contact surface, ensuring consistent signal quality during scanning, and wear pins to protect the wedge surface from abrasion, extending its lifespan during circumferential scanning.
The 10-inch circumferential radius of the contact face is precision-engineered to ensure optimal coupling and consistent beam introduction on cylindrical or curved components with this specific radius. The 37-degree angle is a common and effective choice for shear wave inspection, suitable for detecting various types of flaws oriented at different angles relative to the scanning direction.
Key Selling Points:
Type 1 External Mount Wedge: Designed for mounting on the external surface of the test piece.
10" Circumferential Radius: Precision-engineered contact face to ensure optimal coupling and consistent beam introduction on 10-inch radius cylindrical components.
37 Degree Angle: Optimized for effective shear wave inspection.
Rexolite Construction: Offers excellent acoustic transmission properties and wear resistance.
Integrated Irrigation: Features built-in channels for consistent couplant delivery during scanning.
Wear Pins: Equipped with durable pins to protect the wedge surface from abrasion, extending its lifespan.
Optimized for Circumferential Scanning: Ideal for inspecting pipes, tubes, and other curved components for circumferential flaws.
Benefits:
Reliable Inspection of Curved Surfaces: The 10-inch circumferential radius ensures excellent coupling on cylindrical components.
Effective Shear Wave Inspection: The 37-degree angle is effective for detecting various types of flaws.
Consistent Signal Quality: Integrated irrigation ensures continuous and effective couplant application.
Extended Wedge Life: Wear pins protect the contact surface during scanning.
High Acoustic Performance: Rexolite material provides efficient ultrasonic transmission.
Applications:
Ultrasonic inspection of pipes and tubes for circumferential flaws.
Inspection of other cylindrical components with a 10-inch radius.
Use in automated and manual ultrasonic testing setups.
