NM01LS0215

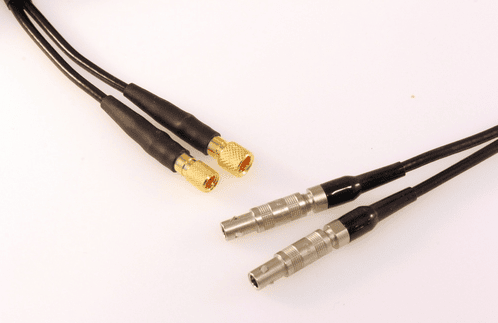

The Dual UT High-Temperature Cable is a specialized and robust solution designed for connecting dual-element ultrasonic transducers with Lemo 00 connectors to ultrasonic flaw detectors or thickness gauges equipped with regular microdot connectors, even in elevated temperature environments. This cable features two independent RG178 coaxial cables encased in a protective blue Fiberglass Tube, providing exceptional thermal resistance and mechanical durability. It has a length of 72 inches (6 feet).

Key Selling Points:

• High-Temperature Rated: The combination of the blue fiberglass tube and the RG178 cable ensures reliable performance and extended lifespan in environments with elevated temperatures.

• Mixed Connector Compatibility: Specifically designed for seamless connection between Lemo 00 connectors (typically found on transducers) and regular microdot connectors (commonly used on instruments) for dual-element probe configurations.

• Superior Signal Integrity: Features two independent RG178 coaxial cables, known for their reliable high-frequency signal transmission characteristics, ensuring accurate ultrasonic measurements.

• Enhanced Durability and Protection: The blue fiberglass tube provides excellent mechanical and thermal protection to the internal RG178 cables, ensuring reliable operation in demanding conditions.

• Practical Length: The 72-inch (6-foot) length offers ample reach and flexibility for various inspection tasks without being cumbersome.

Benefits:

• Enables High-Temperature Ultrasonic Testing: Allows for reliable and accurate ultrasonic inspections in environments where standard cables would degrade or fail.

• Provides Direct Connectivity for Mixed Connector Systems: Eliminates the need for adapters, simplifying setup and reducing potential points of failure and signal loss when interfacing Lemo 00 and regular microdot connectors for dual-element probes.

• Ensures Accurate and Reliable Data: The high-quality RG178 coaxial cables minimize signal attenuation and interference, leading to more dependable ultrasonic test results.

• Offers Extended Cable Lifespan: The robust construction and high-temperature protection provided by the fiberglass tube contribute to a longer service life, making it a cost-effective solution.

Approximate Dimensions (inches):

• Length: 72 inches

• Diameter of each RG178 cable: Approximately 0.07 inches

• Outer Diameter of Blue Fiberglass Tube: Approximately 0.15 to 0.20 inches (This dimension can vary slightly depending on the specific manufacturer and tolerances.)

• Lemo 00 Female Connector Diameter: Approximately 0.4 inches

• Lemo 00 Female Connector Length (including strain relief): Approximately 1.6 inches

• Regular Microdot Male Connector Diameter: Approximately 0.3 inches

• Regular Microdot Male Connector Length (including strain relief): Approximately 1.2 inches

Applications:

This dual UT high-temperature cable is specifically designed for connecting dual-element ultrasonic transducers (with Lemo 00 connectors) to instruments (with regular microdot connectors) in applications where elevated temperatures are a factor, including:

• Monitoring pre-weld and post-weld heat treatment processes.

• In-service inspection of components operating at high temperatures in industries such as power generation, petrochemical, and aerospace.

• Process monitoring in heated industrial environments.

• Research and development applications involving high-temperature ultrasonic testing.

• Corrosion and erosion monitoring in high-temperature systems.
