NM01X0040025
WEDGE, SNAIL SHEAR WAVE, .625"X.625" 70 DEG, MODEL SNW6270, DAKOTA NDT ".625"X.625" 70 DEG ONLY"

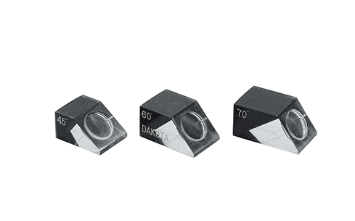

The Dakota NDT Snail Shear Wave Wedge, Model SNW6270, is a high-quality angle beam wedge meticulously engineered for use with compatible ultrasonic transducers in shear wave testing applications. This "snail"-style wedge features a contact surface of 0.625 inches by 0.625 inches (5/8" x 5/8") and is precisely angled to introduce a 70-degree refracted shear wave into the material under inspection.
Snail wedges, a common and reliable design often referenced in industry standards, are widely used in critical weld examinations and other applications where a specific angle of incidence is crucial for effective flaw detection and accurate characterization. The 70-degree angle provides a unique and valuable perspective for identifying specific types of weld discontinuities and material defects, often complementing inspections performed at other angles for comprehensive coverage. This wedge is constructed to deliver consistent and dependable performance when paired with appropriate shear wave transducers, ensuring reliable inspection outcomes.
Key Selling Points:
Precise 70-Degree Refracted Angle: Engineered to consistently introduce a 70-degree shear wave into the test material for targeted and effective inspections at a specialized angle.
Optimized Transducer Contact: The 0.625" x 0.625" contact surface provides a stable and secure interface with compatible transducers, ensuring optimal sound transmission.
Industry-Recognized "Snail" Design: A reliable and commonly referenced wedge style, often meeting the requirements of various industry standards for weld inspection.
Specifically for Shear Wave UT: Intended for use in applications employing shear wave ultrasonic testing techniques, maximizing their effectiveness for angled beam inspections.
Quality Manufacturing by Dakota NDT: Manufactured by a trusted leader in non-destructive testing equipment, ensuring reliability and performance.
Benefits:
Effective Weld Examination at a Specialized Angle: Ideally suited for detecting common weld imperfections such as lack of sidewall fusion, incomplete penetration, and vertically oriented cracks that may be more readily identified with a steeper angle beam.
Versatile Flaw Detection Capabilities: Suitable for a broad range of materials and inspection scenarios requiring a 70-degree inspection angle, providing a unique acoustic perspective for enhanced detection of specific flaw orientations.
Aids in Code Compliance: Often utilized to meet the specific requirements of various welding codes and industry standards that specify 70-degree inspections for certain applications.
Delivers Consistent and Repeatable Results: Designed for reliable and repeatable performance when used correctly, providing confidence in inspection outcomes.
Approximate Dimensions (inches):
Transducer Contact Area (L x W): 0.625 inches x 0.625 inches (5/8" x 5/8")
Overall Length: Approximately 1.0 to 1.5 inches (This dimension can vary slightly).
Overall Width: Approximately 0.75 to 1.25 inches (This dimension can vary slightly).
Maximum Height: Approximately 0.5 to 0.75 inches (This dimension can vary slightly).
Refracted Angle: 70 Degrees
Applications:
Critical weld inspection across various industries, often used in conjunction with 45-degree and 60-degree wedges for comprehensive coverage of various flaw orientations.
Detection of flaws oriented at specific, steeper angles within a wide range of materials and components, providing a unique acoustic perspective for enhanced detection.
Corrosion assessment in specific configurations where a steeper angle is advantageous for detection.
General angle beam ultrasonic testing applications requiring a precise 70-degree shear wave introduction for specialized inspections.
Quality control processes in manufacturing and fabrication to ensure material integrity and product reliability, particularly for detecting vertically oriented discontinuities.
